Huato HE174 User Manual

Usb data logger
Hide thumbs
Table of Contents

Advertisement

Quick Links

HE17x Series
USB Data Logger User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HE174 and is the answer not in the manual?

Questions and answers

Related Manuals for Huato HE174

Summary of Contents for Huato HE174

  • Page 1 HE17x Series USB Data Logger User Manual...

  • Page 2: Table Of Contents

    CONTENTS Chapter 1. USB Data Logger Hardware....................3 1.1 Introduction.......................... 3 1.2 Features..........................3 1.3 Application..........................3 1.4 USB Data Logger Model......................3 1.5 USB Temperature Data Logger Appearance (HE170/HE171/HE172)........4 1.6 USB Temperature Data Logger Screen (HE170/HE171/HE172)........... 4 1.7 USB Temperature & Humidity Data Logger Appearance (HE173/HE174)......5 1.8 USB Temperature &...

  • Page 3: Chapter 1. Usb Data Logger Hardware

    Chapter 1. USB Data Logger Hardware 1.1 Introduction HE170 USB series has USB interface, enjoying elegant appearance and compact construction, specially designed for refrigerator and cold-chain transportation as well as container transport applications. HE170 USB series adopts friendly USB interface, friendly mounting bracket and the screws.

  • Page 4: Usb Temperature Data Logger Appearance (He170/He171/He172)

    1.5 USB Temperature Data Logger Appearance (HE170/HE171/HE172) ① ⑥ LCD Screen Battery Replacement Position. ② ⑦ Button Waterproof Transparent Cover ③ ⑧ Warming Light When Fixed Bracket Temperature Value Exceeds Setting Limits. ④ ⑨ USB Connection Port Model Label ⑤ Waterproof Ring 1.6 USB Temperature Data Logger Screen (HE170/HE171/HE172) ①...

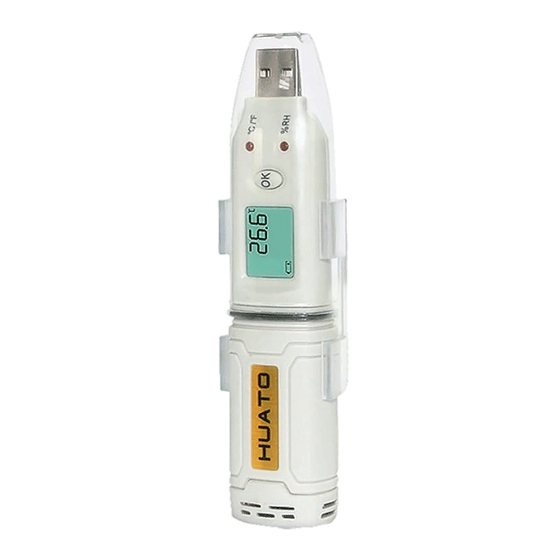

  • Page 5: Usb Temperature & Humidity Data Logger Appearance (He173/He174)

    1.7 USB Temperature & Humidity Data Logger Appearance (HE173/HE174) ① ⑥ LCD Screen Battery Replacement Position. ② ⑦ Button Waterproof Transparent Cover ③ ⑧ Warming light When Fixed Bracket Temperature Humidity Value Exceeds the Setting Limits. ④ ⑨ USB Connection Port Model Label ⑤...

  • Page 6: Button

    1.9 Button OK Button Press this button for long to 5seconds can turn on/off the logger. Check the MAX; MIN; High & Low values as well as the current value in the working status. 1.10 Install Battery Open the Battery Cover Remove shell Install Battery 1.11 Fix USB Data Logger...

  • Page 7: Chapter 2. Logpro Software

    Chapter 2. Logpro Software 2.1 The Requirement of the Computer Hardware Windows2000/XP/Vista/Win7/Win8/Win10 （ 32/64-bit ） , nonsupport Linux/Unix CPU: 1.6GHz Physical Memory: 512MB Hard-drive Space: 4 GB USB Port: 1 2.2 Install Driver & Software Install Driver Put the assigned software disc into the computer driver and open the file to find and select the driver based on the operating system.

  • Page 8: Setting The Logger's Properties To Start A New Measurement

    2.3 Setting the logger’s properties to start a new measurement. 1. Connect the data logger to the computer. 2. Running Logpro software on the PC. 3. From the toolbar select Connect. 4. Read the logger’s properties. 5. Set the properties. 6.

  • Page 9: Properties Description

    2.4 Properties Description Property Text Description Name English letters Name of the logger Numbers 10 Characters Must be the same as the one in the label of logger. Sampling Interval (s) Number from 1 to 240 Sampling frequency in LCD screen Logging Interval (s) Number from 2 to 86400 Logging frequency.

  • Page 10: Start Record Time Description

    2.5Start record time description 1. Select the mode to start the record in the property bar: Start Now: the recorder starts immediately to record the data. Delay start: the recorder starts to record the data after the set delay time. Timing start: the recorder starts recording data at the specified time point .(Note: the recorder will start at the turn on state and the recorder will not start the record automatically when the logger at the turn off state).
  • Page 11 Tips: Press and hold the left mouse button to drag a box, when the left mouse button is released, the graph will be redraw with the data in the selected rectangle area(Magnified data table). Click right button, then the graph will be redrawing with all the data in the logs file.

  • Page 12: Data Listing Window

    2.7 Data Listing Window Click "Data List" button on the toolbar, and then the data listing window is shown below. Channel 3 unit is Dew Point. The Value is calculated from temperature & humidity. The data pane lists the data samples collected by the logging device. The column width of each column is adjustable by using the left mouse button and dragging the column the desired width.

  • Page 13: Delete Records In The Logger

    2.9 Delete Records in the Logger 14. From the toolbar select Delete 2.10 Check the Save File in File List 15. From the toolbar select Filelist. 16. Click to open the file.  Double click left mouse button, then the selected file is opened. ...

  • Page 14: Chapter 3. Attention

    Chapter 3. Attention  HE17x water proof level is IP67. Do not put it into the water.  HE17x plastic shell is ABS, flame retardant, not resistant to acid and alkali.  If repair is needed, only authorized technician could do the repair. ...
