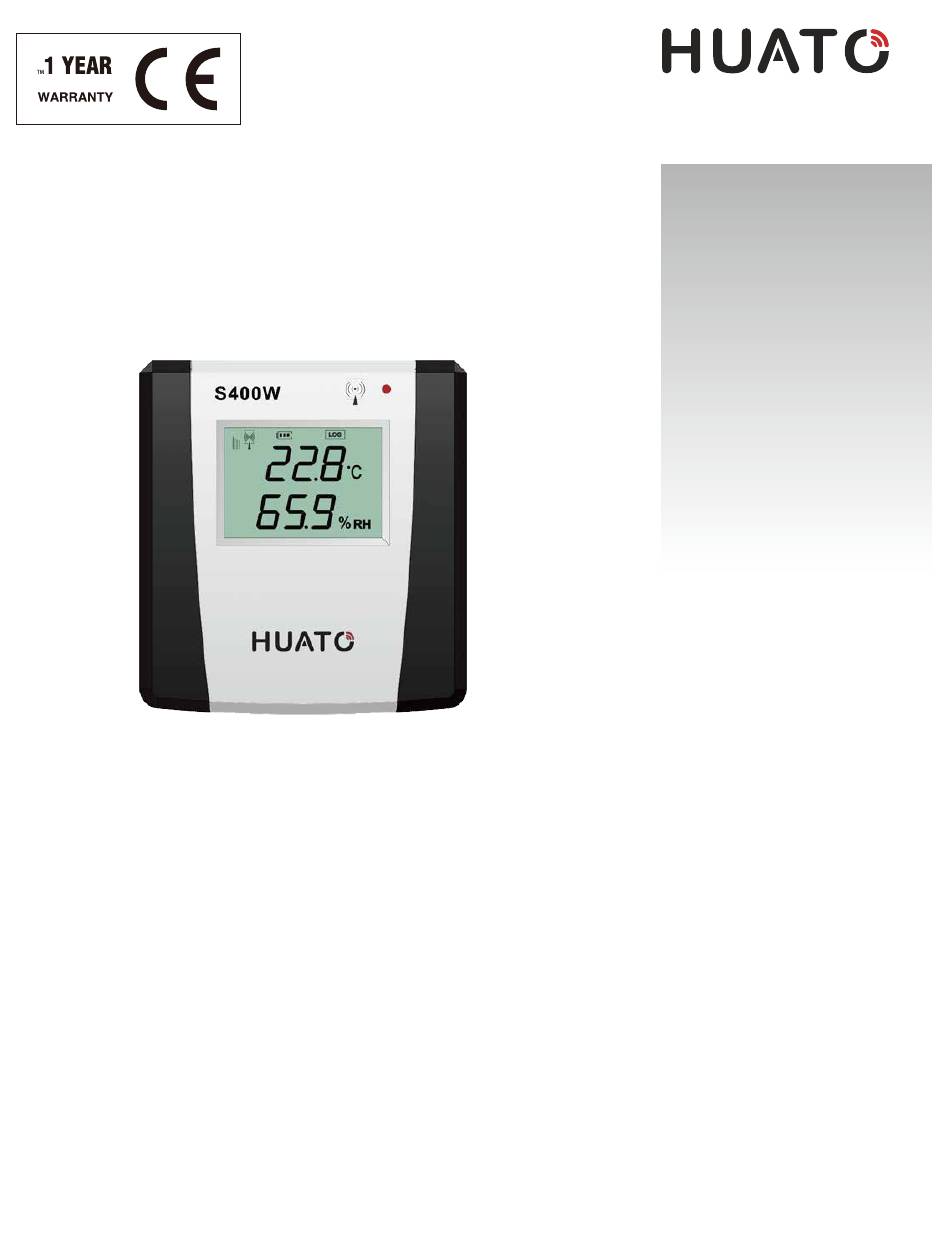

- Page 1 User’s Guide Talk to our sales and shop online at www.huato.cn E-mail: sales@huato.com S400W S400W Series Wireless Temperature and Humidity Data Logger User Manual...
- Page 2 Engineering Service: 0755-29977605 Fax: +86-755-29748856 E-mail: sales@huato.com For Other Locations Visit www.huato.cn The information contained in this document is believed to be correct, but HUATO accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Table Of Contents
1.2 Applications ..................1.3 Data Logger Model ................1.4 HE2400&HE2410 wireless base station appearance ......1.5 S400W series wireless logger with LCD display ......... 1.6 1.6 Explanation of S400W Series LCD Symbols ......... 1.7 S400W-ND series wireless temperature and humidity logger without LCD display ........... -
Page 4: Section 1 Introduction
Section 1 Introduction S400 wireless temperature and humidity data logger is a high speed, intelligent device developed by HUATO which combines the advantages of its relevant devices. With built-in memory and Zigbee wireless transmission function, it can record 8192 readings as well as remotely monitoring warehouse, lab, refrigerator, cold storage room, etc. -
Page 5: Data Logger Model
Introduction 1.3 - Data Logger Models Section Measurement Measurement Sensor type Model Remark Accuracy Range Internal temperature & 1.5V AA battery * 4, -20~ 70℃ S400W-TH ±0.5℃/±3%RH humidity integrated 9VDC, LCD dual figures 0~100%RH sensor External temperature & -40~ 85℃ 1.5V AA battery * 4, ±0.5℃/±3%RH humidity integrated... -
Page 6: He2400&He2410 Wireless Base Station Appearance
Introduction 1.4 - HE2400 & HE2410 DTU appearance Section HE2400 HE2410 Ethernet interface (RJ45) USB interface DC 12V DC 12V Antenna Antenna... -
Page 7: S400W Series Wireless Logger With Lcd Display
Introduction 1.5 - S400W series wireless logger with LCD display Section LCD display area Wall mounting panel LED indicator: temperature and humidity alarm, flashing light and sound alarm Rear cover screw position USB and DC power connector 1.6 - Explanation of S400W Series LCD Symbols... -
Page 8: S400W-Nd Series Wireless Temperature And Humidity Logger Without Lcd Display
Installation and Instruction 1.7 - S400W-ND series wireless temperature and humidity Section logger without LCD display LED Indicator Wall Mounting Board USB and DC power connectors Rear cover screw position 1.8 - Install the battery Section Use a screwdriver to loosen the fixing screws from the back cover, and install four 1.5V AA batteries into the battery compartment according to the directions... -
Page 9: Section 2 Software User's Guide
Installation and Instruction Section 2 Software User's Guide 2.1 Installing the software (1)Put the Monitor software CD into the CD-ROM drive, and install ToMonitor_V8 software to the computer hard disk.(Note: It is recommended NOT to install it on the drive C to prevent the d losing data caused by operating system crashing). -
Page 10: Tomonitor Software Use
Installation and Instruction (7) Address: IP address / Subnet mask / Gateway IP gateway, modify the IP information according to current LAN configuration, the IP address will be assigned to HE2400 DTU (Note: This IP address should not conflict with any IP address of other instruments) (8) Object IP: this IP address is the fixed IP address of the control computer. -
Page 11: System Settings
Installation and Instruction After successfully login into ToMonitor software, all the menu keys on the toolbar are active, as shown in the following figure: 2.3.2 System settings Click the button, the following dialog pops up: (1) Software name: Customize the software name according to actual needs. (2) Set the number of rows and columns about how the panels are arranged. -
Page 12: Communication Settings
Installation and Instruction 2.3.4 Communication settings Click the button, the following dialog pops up: DTU server port settings: a. TCP listening port (RJ45): 4588 (HE2400 DTU refers to this port) b. USB Port (USB): Port selection COM1 ~ COM9 (HE2410 refers to this port, the port number should be the same as actual USB port number connected to HE2410) 2.3.5 User management... -
Page 13: Partition Management
Installation and Instruction 2.3.6 Group management Click the button to pop up the following dialog, add groups as needed: Note: After adding a new logger, group must be specified, otherwise the newly added logger will not be displayed in the monitoring window. 2.3.7 Device management Click the button, the following dialog pops up:... - Page 14 Installation and Instruction (1) [Basic setting] Logger parameters setting Name: a logger can be named according to the actual situation. The name of each instrument cannot be duplicated. Serial number: enter the 10-digit serial number according to the sticker attached to the logger.
-
Page 15: Real-Time Curve Button
Installation and Instruction 2.3.8 Real-time curve button Click the button, all the data will be displayed in the form of curves, as shown below: 2.3.9 Text display button Click the button, all the data will be displayed in the form of curves, as shown below:... -
Page 16: Previous Area / Next Area Button
2.4 View the exported data (1) Double click the ToClient icon in the Huato software folder and run the software, as shown below: (Note: ToClient requires ToMonitor to be running, otherwise you will get a prompt of ‘fail to connect to the server’... - Page 17 Installation and Instruction (3)Click the [Query Logger] icon to pop up the following dialog. Check the instrument to be queried, select the time period to be queried, and click [Start Query] (4)The following dialog pops up to view the corresponding data analysis chart.
-
Page 18: Section 3 Attention
Installation and Instruction (5)Click the [Query Data] icon to pop up the following dialog to view real-time data. (6)Click [PDF] to export the queried data as a PDF file, and click [BMP] to export the analysis chart as a BMP image file. Section 3 Precautions 3.1 Notes The waterproof index of this logger is IP34.
