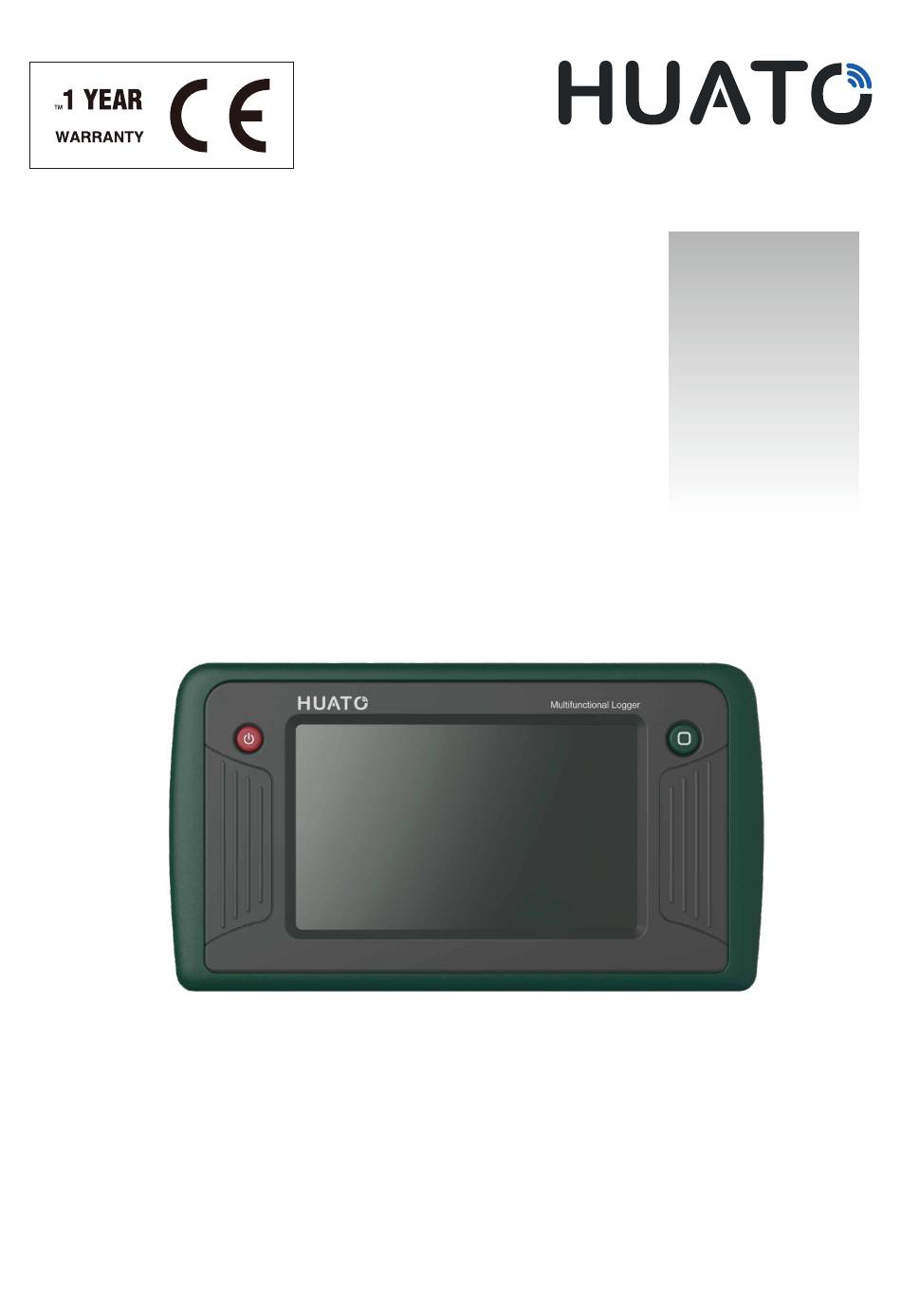

- Page 1 User’s Guide S1500 Portable Multi-Channel Thermocouple Data Logger Operational Instructions...
- Page 2 Any part of this instruction, including words, pictures and graphics, belongs to Shenzhen HUATO Electric Co., Ltd. or its subsidiary (hereinafter referred to as "the company" or "HUATO"). Without written permission, no unit or individual is allowed to extract, copy, trans- late or modify all or part of the instructions in any way.
- Page 3 Introduction Serial number Version number Document number Revision date Attentions 1) The waterproof grade of the product is IP34. If there is moisture on the shell, do not connect the logger with USB in order to prevent from short circuit. Short circuit may cause damage to the instrument.
-
Page 4: Table Of Contents
Table of Contents S1500 Series Table of Contents Section 1 Product Introductions................1 1.1 Introductions.....................1 1.2 Appearance....................1 1.3 Features....................1 1.4 Models.....................2 1.5 Applications.....................2 1.6 Buttons and Ports..................3 1.7 Operational Steps..................4 1.8 Technical Specifications................5 1.8.1 General Specifications................5 1.8.2 Input Specifications................6 Section 2 Attentions....................7 Section 3 Wiring Instructions..................8... -
Page 5: Section 1 Product Introductions
Section 1 Product Introductions 1.1 Introductions S1500 Series portable multi-channel thermocouple data logger with Graphical touch screen, supports up to 16 channels input and multiple thermocouple types working simultaneous- ly. This logger enables real-time data viewing of multi-channels on device and web page through RJ45 LAN synchronously. -
Page 6: Models
S1500 Series 1.4 Models Models Function description S1508T 8 Channels thermocouple Logger S1512T 12 Channels thermocouple Logger S1516T 16 Channels thermocouple Logger 1.5 Applications Handheld Mode Note：Don’t block the cold junction compensation holes, which may affect the accuracy of data acquisition. -
Page 7: Buttons And Ports
S1500 Series Tabletop Kickstand Use the supporting plate on the back to make the device stand on the desktop 1.6 Buttons and Ports Home Power On/Of SD Card Type-C USB Card... -
Page 8: Operational Steps
S1500 Series Button/Ports Details 1、To power on and power off the device, hold down the Power button Powerbutton for a few seconds. HOME button 1、The Home button will return the user to the home screen 1、To charge the internal rechargeable lithium battery 2、To serve as power supply to the device and save its... -
Page 9: Technical Specifications
S1500 Series 1.8 Technical Specifications 1.8.1 General Specifications Main parameters Dimensions 189.3*103.5*39mm（With Protection） Display 5 inch capacitive touch screen, resolution 800 * 480 Number of channels 16 channels, Thermocouple Input Storage capacity 16 channel storage capacity of 5Million lines Internal storage... -
Page 10: Input Specifications
S1500 Series 1.8.21.Input Signal Thermocouple input (excluding cold end error), accuracy excluding cold end compensation error, cold end compensation error: ± 1.5 ℃ Maximum allowable Type Measuring range（℃） Resolution（℃） error（℃） -270-1370℃ ±1℃ ±1℃ -200-760℃ -270-980℃ ±1℃ ±1℃ -270-400℃ -50-1760℃ ±2℃... -
Page 11: Section 2 Attentions
S1500 Series Section 2. Attentions 1. The system time cannot be changed during recording. 2. After the data is transferred, the internal stored data will not be deleted automatically and needs to be deleted manually. 3. Please turn off the equipment when it is not used for a long time. -
Page 12: Section 3 Wiring Instructions
S1500 Series Section 3 Thermocouple input port 3.1 Connection Mode The following picture shows the input port of the thermocouple,the insertion mode is shown in the interface diagram. -
Page 13: Section 4 Interface And Function Description
S1500 Series Section 4 Interface and function description 4.1 Prompt Bar (1) Device Name: User defined, 24 characters, LOGGER by default. (2) Recording status indicator Standby: gray; recording / auto stop: green flashing; delay recording: yellow flashing. (3)Alarm prompt: This icon appears when there is alarm information; when the device becomes normal or after entering the alarm interface to view the alarm information, the alarm prompt icon disappears. -
Page 14: Home Page
S1500 Series 4.2 Main interface The main interface displays 8 function icons: digital display, bar chart screen, real-time curve, historical curve, start / stop recording, data storage, channel setting and system setting. 4.3 Digital Display Click digital display in the main interface to enter the digital display interface. -
Page 15: Bar Chart Display
S1500 Series TC-K TC-K TC-K TC-K TC-K TC-K TC-K TC-K TC-K TC-K TC-K TC-K TC-K TC-K TC-K TC-K Digital display detailed information 4.4 Bar Chart Screen Click the bar graph screen in the main interface to enter the bar graph display interface. -
Page 16: Real Time Curve
S1500 Series 4.5 Real Time Curve As shown in the figure below, from left to right at the top of the interface are: unit selection, channel selection, start / pause icon. The bottom is the channel number and the latest real-time value. The color of the channel number is the same as that of the corresponding channel curve, and the bottom channel unit is corresponding to the left and right ordinates. -
Page 17: Historical Curve
S1500 Series 4.6 Historical Curve As shown in the figure below, from left to right at the top of the interface are: record file selec- tion, unit selection, channel selection; channel number and maximum / minimum value are displayed at the bottom (click the channel box to switch the maximum and minimum values), the digits’... -
Page 18: Start / Stop Recording
S1500 Series 4.7 Start / stop recording Start recording stop recording (1) Record file name: customizable, up to 24 bytes. The default is Log1, log2 . (2) Record interval: customizable, the shortest is 1 second, the longest is 86400 seconds (24h), only integer can be input. -
Page 19: Data Storage
S1500 Series 4.8 Data Storage 4.8.1 Record documents Click the box in front of the file to check the corresponding file. Click the top box to check all the files on the current page.Record the corresponding information at the bottom of the file interface (1) Page forward (2) Current page number: Click to enter the page number you want to jump to. -
Page 20: Channel Settings
S1500 Series 4.9 Channel Setting The numbers on the left side of the channel setting ports are ch1 ~ ch16, Channel disabled / channel not configured: Ring gray; Channel configured successfully: Ring Blue; Currently selected channel: Green filling. The icon on the top of the interface is signal type, which indicates from left to right: Disabled (chan- nel not used), TC (thermocouple). -
Page 21: Calibration Settings
S1500 Series 4.9.3 Calibration setting Slope: the slope value can be input. Intercept: intercept value can be entered. Algorithm: click the icon to enter the calibration algorithm wizard interface. In the algorithm wizard interface, you only need to input the measured values and standard values of the low calibration point and the high calibration point to calculate the calibration slope and intercept. -
Page 22: System Settings
S1500 Series 4.10 System Settings On the left side of the system setting interface are four functional options: system information, system display, sampling storage and network setting. 4.10.1 system information and program upgrade (1) Serial number (2) Hardware version number (3) software version number;... -
Page 23: Systems Display
S1500 Series 4.10.2 system display (1) Click time format to set 12 hours / 24 hours mode. (2) Click time setting, click up and down arrow to set year, month, day, hour, minute, morning and afternoon. (3) Click the left and right arrows on the backlight display to adjust the information screen time (1min, 10min, 30min, no time out). -
Page 24: Web Settings
S1500 Series 4.11 Web settings Enter the IP address of the device in the address bar of the web page, and then press enter to enter the web page interface to view the data of the device in real time. Please refer to the above setting method. - Page 25 S1500 Series Section 5 Daily maintenance When there is any foreign matter on the display screen, use a soft cloth to wipe the foreign matter away gently. When there is residual foreign matter on the protective sleeve, use soft cloth and soft deter- gent to remove the foreign matter.
- Page 26 S1500 Series HUATO Electric CO.,Ltd Email: sales@huato.com Email: sales@huato.com Address: Floor 3, building B4, Taohuayuan science and Technology Innovation Park, No. 147, Tiegang Reservoir Road, Xixiang, Bao'an, Shenzhen Official website: www.huato.cn Service hotline: 0755-29977605 / 29748810 / 29977005 / 23081319 / 23081316...
