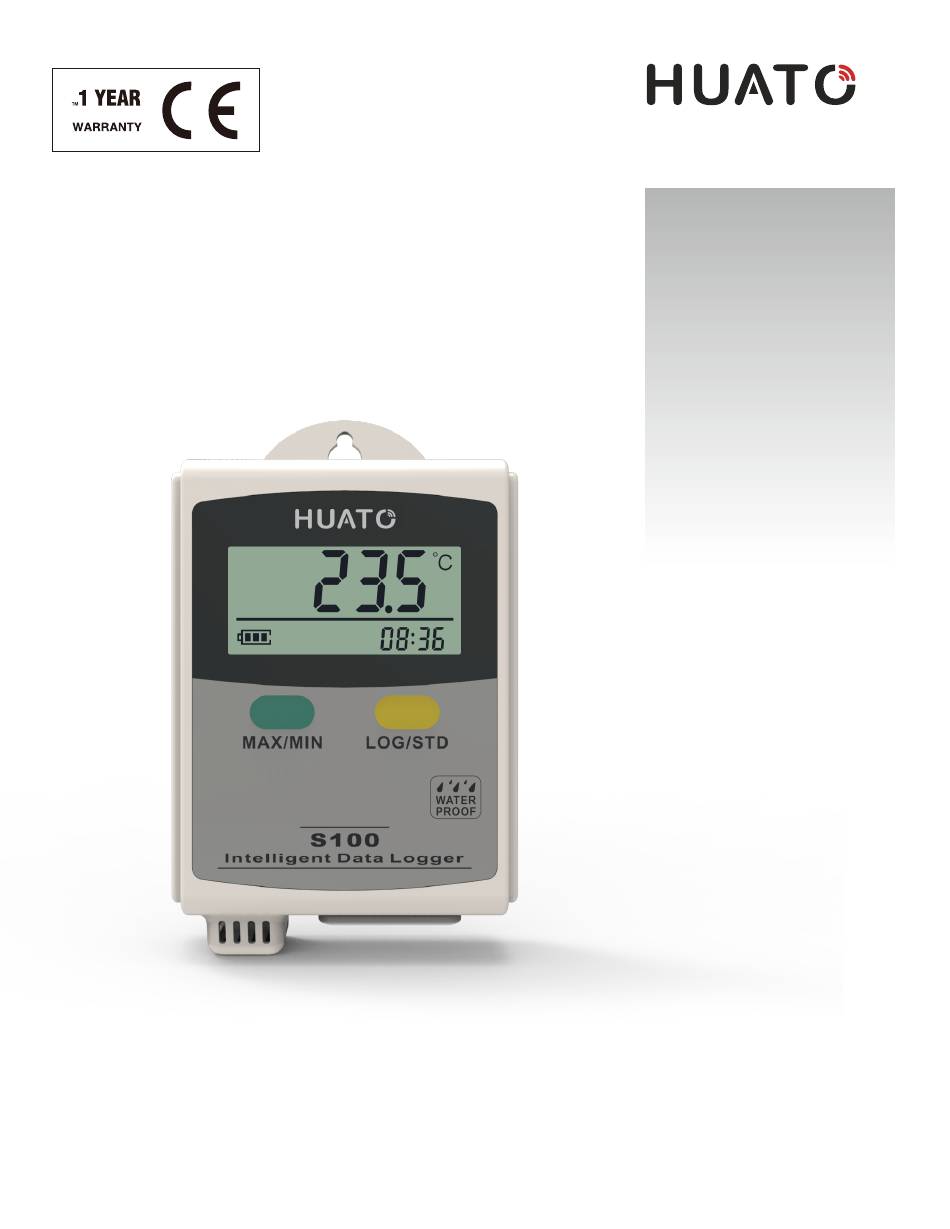

- Page 1 User’s Guide Talk to our sales and shop online at www.huato.cn E-mail: sales@huato.com S100 Series Single Channel Temperature and Humidity Data Logger, Handheld...
- Page 2 Engineering Service: 0755-29977605 Fax: +86-755-29748856 E-mail: sales@huato.com For Other Locations Visit www.huato.cn The information contained in this document is believed to be correct, but HUATO accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Table Of Contents
Table of S100 Series Contents Table of Contents Section ..................Page ..................1 Section 1 Introduction 1.1 Introduction ................. 1 1.2 Features ..................1 1.3 Applications ................. 1 1.4 Data Logger Model ..............1 1.5 Temperature Data Logger Appearance ........2 1.6 Temperature and Humidity Data Logger Appearance .. -
Page 4: Section 1 Introduction
Intr oduc ti on Section 1 - Introduction S100 temperature humidity data logger, developed by HUATO, is featured with LCD display, elegant appearance, low energy consumption, and excellent consistency. All the sensors are manufactured in Switzerl and, which assures quality and stability. -
Page 5: Temperature Data Logger Appearance
Section /S100-ET/S100-ET+) S100-T/S100-T+ ℃ M O D E L : S 1 0 0 - T RANGE:-20~70℃ H S 1 0 0 C H 6 4 2 HUATO SYSTEM CO.,LTD LCD Screen Hanger LOG/STD Button Label MAX/MIN Button Battery Cover... -
Page 6: Temperature And Humidity Data Logger Appearance
(S100-TH/S100-TH+/S100-TH++/S100-EX/S100-EX+/ S100-EX++) S100-TH/S100-TH+/S100-TH++ M O D E L : S 1 0 0 - T H RANGE:-20~70℃/0~100%RH H S 1 0 0 C H 6 4 2 HUATO SYSTEM CO.,LTD LCD Screen Hanger LOG/STD Button Label MAX/MIN Button Battery Cover... -
Page 7: Temperature And Humidity Data Logger Screen
Introduction 1.7 - Temperature and Humidity Data Logger Screen Section (S100-T/S100-T+/S100-ET/S100-ET+/S100-TH/S100-TH+ /S100-TH++/S100-EX/S100-EX+/S100-EX++) ℃ ℉ M I N Temperature & Humidity Value LOG Symbol Display the Maximum Values in the USB Communication Symbol current recording section Display years, month/day, hour/ Display the Minimal Values in the minute recurrently current recording section Humidity Unit... -
Page 8: Section 2 Installation And Instruction
Installation and Instruction Section 2 - Installation and Instruction This section will explain how to use the software to upload, read, configure and synchronize the settings, how to turn on/off the logger & enter/exist the logging mode, and how to delete and download the logging data. 2.1 - Software Installation Section 2.1.1 - The Requirement of the Computer Hardware... -
Page 9: How To Read And Configure The Logger
Installation and Instruction 2.2 - How to Read and Configure the Logger Section 2.2.1 Read and Configure the Logger's Settings 1. Turn on and Insert the data logger to the computer¹. 2. Start LogPro software on the PC. 3. From the toolbar select Connect. 4. -
Page 10: Setting Parameters Description
Installation and Instruction 2.2.2 - Setting Parameters Description A.System Name usb_logger HS100CH642 Type Data Logger Model S100-TH Temperature Type B.Sampling Logging Interval(Secs) Sampling Interval (Secs) C.Storage Logs 43000 Total 43000 D.Offset Setting Parameter Text Description Name English letters or numbers Name of the logger Must be the same as the one in the 10 characters... - Page 11 Installation and Instruction Section 2.3 - Turn On/Off Logger & Start/Stop Logging Under Button to Start Mode Turn On the Logger - Push “LOG/STD” Button for 5 Secs then LCD display is on. Start Logging - When the Logger is on and on stand-by(LCD does not have “LOG” logo display), press "LOG/STD" for 3 seconds, LCD display time, loosen "LOG/STD"...
- Page 12 Installation and Instruction Turn Off the Logger - Push the“LOG/STD” Button for 5 Secs then LCD display is off. LOG Full - The device won't record data while the memory is full, that you have to download the data and delete it by Logpro software, then device can record again. S100 LOG Full S100-TH/S100-EX LCD Display- Display temperature and humidity recurrently, each display time is 5S. ℃...
-
Page 13: Download The Logging Data
Installation and Instruction Section 2.4 Download the Logging Data 10. Insert the data logger to the computer. 11. Start LogPro software on the PC. 12. From the toolbar select Connect. 13. From the toolbar select Download. HS100CH642 S100-TH Once the data is downloaded from the logger to the PC, the log graph will be displayed. Tips: Press and hold the left mouse button to drag a box, when the left mouse button is released, the graph will be redraw with the data in the selected rectangle area. -
Page 14: View Data Sheet
Installation and Instruction Section 2.5 View Data Sheet Click “Data List” button on the toolbar, and then the data listing window is shown below. Channel 3 unit is Dew Point. The Value is calculated from temperature & humidity. The data pane lists the data samples collected by the logging device. The column width of each column is adjustable by using the left mouse button and dragging the column the desired width. -
Page 15: Delete Records In The Logger
Installation and Instruction Section 2.7 Delete Records in the Logger 14. From the toolbar select Delete. - Check the Save File in File list Section 2.8 15. From the toolbar select File List. 16. Click to open the file. • Double click left mouse button, then the selected file is opened. •... -
Page 16: Section 3 Attention
Attention • Plastic shell is ABS, flame retartdant, not resistant to acid and alkali. • If repair is needed, only authorized technician can do the repair. • The instrument configuration by 2 x AAA Battery (1.5V) is not rechargeable. • USB power supply (2.7V) cannot let the Data Logger work.
