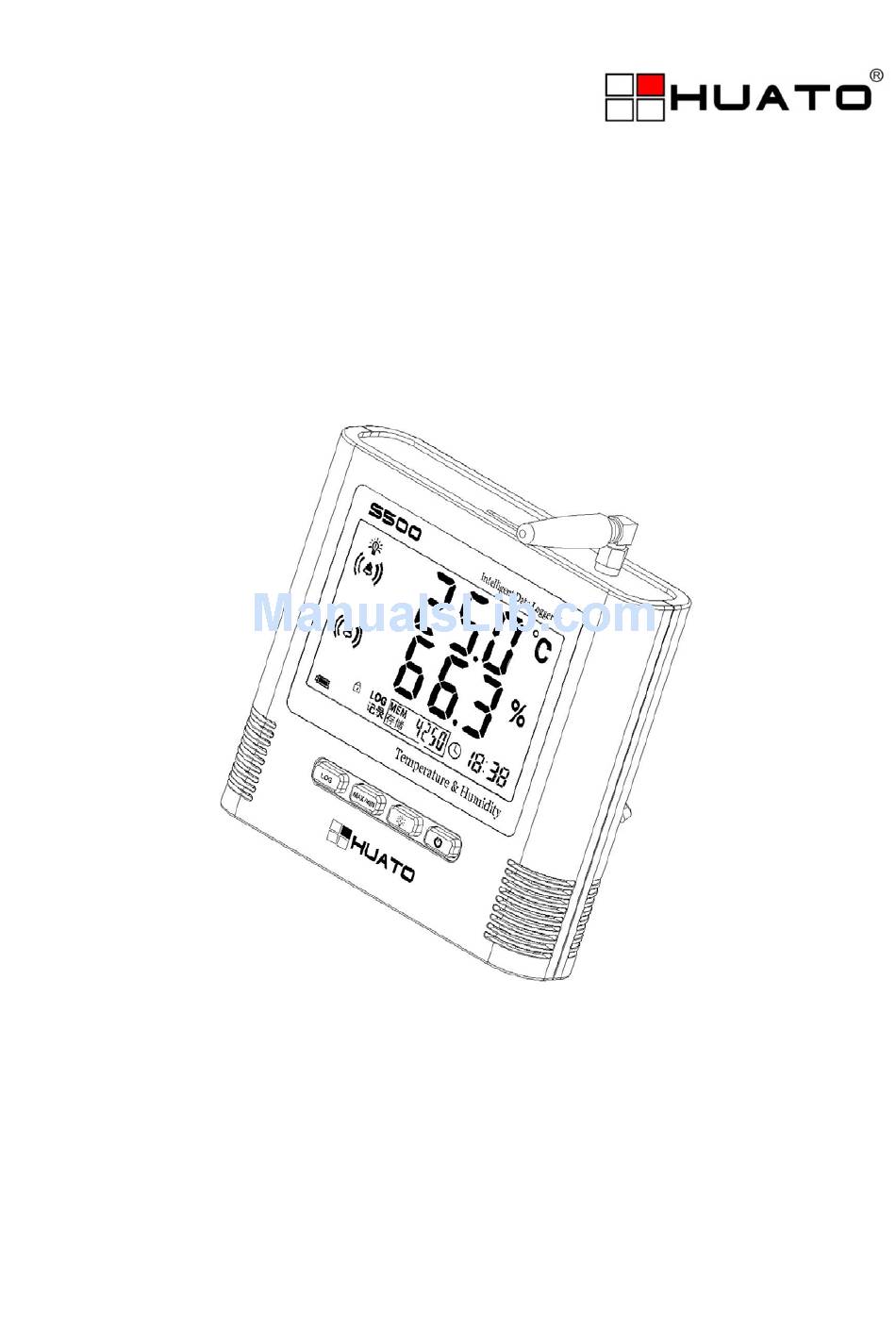

- Page 1 S500 Series Operation manual for GSM temperature humidity data logger...
- Page 2 Operation manual for GSM temperature humidity data logger Catalogues CHAPTER 1. INTRODUCTIONS ..................... 1 1.1 Features ................................ 1 1.2 Technical Specifications .......................... 1 1.3 Applications .............................. 2 1.4 Installation and instructions for SIM card ..................... 2 1.5 ...

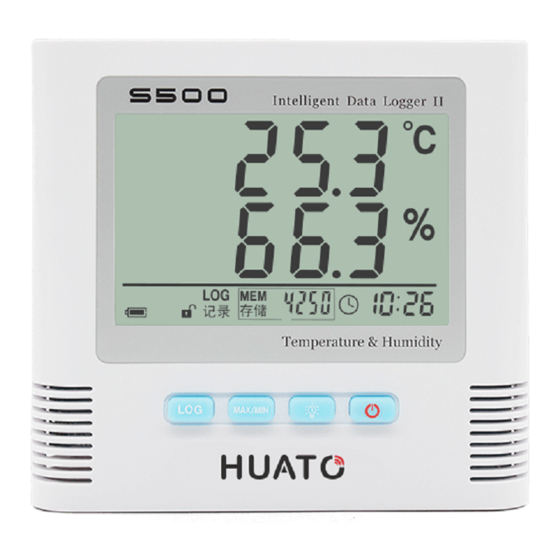

- Page 3 Operation manual for GSM temperature humidity data logger Chapter 1. Introductions S500 series GSM temperature humidity data logger is the new generation data logger of HUATO company; which has been added with the GSM alarm message function based on the original S500 series.
- Page 4 1、 Be sure that battery installed, external power connected and SIM card inset well before you turn on the data logger. 2、 Install Huato software and connect the GSM data logger with PC via USB connection cable. 3、 Run Huato ToAnalyzer software, click 19200 Baud rate and then click the “connect” button.
- Page 5 Operation manual for GSM temperature humidity data logger 1.7 Product structure LCD display Reset button ON/OFF USB port Backlight DC 9V port MAX/MIN checking button Hanger (used for fixing on the wall) Holder (used for desktop) SIM card slot Battery cover (screw to replace the battery) Wireless antenna Serial Number ‐‐‐‐‐‐‐‐ P.3 ‐‐‐‐‐‐‐ ...
- Page 6 Operation manual for GSM temperature humidity data logger 1.8 LCD display instructions Temperature and humidity values display. Symbol for backlight. Symbol for alarm, it will alarm when temperature and humidity setting limits being exceeded. This symbol shows that data logger is being supported by external power—DC 9V. This symbol shows that data logger is connected with PC and you can download all the recording data.
- Page 7 Operation manual for GSM temperature humidity data logger 1.9 Instructions for buttons Log function button, turn on/off the log function. Maximum and minimum button. Press to check the maximum and minimum value of all the recording data. Backlight on/off button. On/Off button Notice: （1）...
