- Page 1 User’s Guide S1500 Series Portable Paperless Data Logger Operational Instructions...
- Page 2 Any part of this instruction, including words, pictures and graphics, belongs to Shenzhen HUATO Electric Co., Ltd. or its subsidiary (hereinafter referred to as "the company" or "HUATO"). Without written permission, no unit or individual is allowed to extract, copy, trans- late or modify all or part of the instructions in any way.
- Page 3 Introduction Serial number Version number Document number Revision date Revise the content Attentions 1) The waterproof grade of the product is IP34. If there is moisture on the shell, do not connect the logger with USB in order to prevent from short circuit. Short circuit may cause damage to the instrument.
-
Page 4: Table Of Contents
Table of Contents S1500 Series Table of Contents Section 1 Product Introductions................1 1.1Introductions.....................1 1.2Appearance....................1 1.3Features....................1 1.4Models.....................2 1.5Applications.....................2 1.6Buttons and Ports..................3 1.7Operational Steps..................4 1.8Technical Specifications................5 1.8.1General Specifications................5 1.8.2Input Specifications................6 Section 2 Attentions....................7 Section 3 Wiring Instructions................8 3.1 Connection mode..................8 Section 4 Interface and function description............9 4.1 Prompt Bar.....................10... -
Page 5: Section 1 Product Introductions

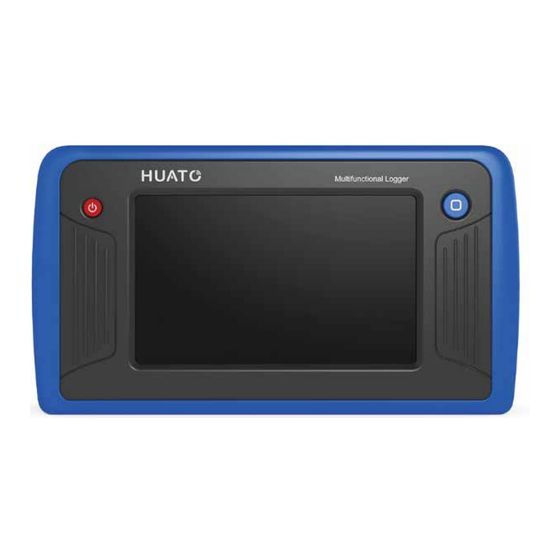

S1500 Series Section 1 Product Introductions 1.1 Introductions S1500 is a portable paperless multifunctional data logger with 8 / 12 / 16 channels for universal inputs and thermocouple inputs. The logger can simultaneously detect a variety of signals including thermocouple, thermal resistance, thermistor, DC current, DC voltage, pulse and frequency and display these signals in real time. -
Page 6: Models
S1500 Series 1.4 Models Models Function description 8 Channels universal inputs S1508U 12 Channels universal inputs S1512U 16 Channels universal inputs S1516U 8 Channels universal inputs S1508T 12 Channels universal inputs S1512T 16 Channels universal inputs S1516T 1.5 Applications Handheld Mode Note：Don’t block the cold junction compensation holes, so as not to affect the... -
Page 7: Buttons And Ports
S1500 Series Tabletop Kickstand Use the supporting plate on the back to make the device stand on the desktop Port 1.6 Buttons and Ports SD Card Type-C USB Card... -
Page 8: Operational Steps
S1500 Series Button/Ports Details 1、To power on and power off the device, hold down the Power button Powerbutton for a few seconds. HOME button 1、The Home button will return the user to the home screen 1、To charge the internal rechargeable lithium battery 2、To serve as power supply to the device and save its... -
Page 9: Technical Specifications
S1500 Series 1.8 Technical Specifications 1.8.1 Technical Specifications Main parameters Dimensions 189.3*103.5*36.5mm（With Protection） Display 5 inch capacitive touch screen, resolution 800 * 480 Number of channels 8 / 12 / 16 universal input 8-channel storage capacity of 10000000 lines, 12 channel... -
Page 10: 2Input Specifications
S1500 Series 1.8.21.Input Signal Maximum allowable Type Measuring range（℃） Resolution（℃） error（℃） 0.01 ±1.0 2-Wire PT100 -200-850℃ 3-Wire PT100 -200-850℃ 0.01 ±0.5 4-Wire PT100 -200-850℃ 0.01 ±0.1 Thermocouple input (cold jucntion compensation-cjc excluded), accuracy (cold jucntion compensation-cjc excluded), CJC error: ± 1.5 ℃... -
Page 11: Section 2 Attentions
S1500 Series DC voltage / current input Type Maximum allowable error（%FS） （1-5）V （0-10）V ±0.1% （0--5）V （0-100）mV （4-20）mA ±0.1% （0-20）mA （0-10）mA Frequency and pulse input (only for channel 1) Maximum allowable error Type Measuring range 0-25KHz ±2Hz Frequency Pulse/Count 0-4，000,000,000 Pulses Section 2. -
Page 12: Section 3 Wiring Instructions
S1500 Series Section 3 Wiring Instructions 3.1 Connection Mode The figure below shows the universal inputs of 16 channels, and the wiring methods are shown in the following signal-line-connection diagram. Thermistor input (two wires) Thermistor input (three wires) Thermocouple Input... -
Page 13: Section 4 Interface And Function Description
S1500 Series Section 4 Interface and function description 4.1 Prompt Bar (1) Device Name: user defined, 24 characters, LOGGER by default. (2) Recording status indicator standby: gray; recording / auto stop: green flashing; delay recording: yellow flashing. (3)Alarm prompt: this icon appears when there is alarm information; when the device becomes normal or after entering the alarm interface to view the alarm information, the alarm prompt icon disappears. -
Page 14: Home Page
S1500 Series 4.2 Main interface The main interface displays 8 function icons: digital display, bar chart screen, real-time curve, historical curve, start / stop recording, data storage, channel setting and system setting. 4.3 Digital Display Click digital display in the main interface to enter the digital display interface. The digital display interface has three arrangement modes: 2 * 4 (4 rows and 2 col- umns), 3 * 4 (4 rows and 3 columns) and 4 * 4 (4 rows and 4 columns). -
Page 15: Bar Chart Display
S1500 Series Digital display detailed information 4.4 Bar Chart Screen Click the bar graph screen in the main interface to enter the bar graph display interface. The bar graph display interface has two arrangement modes: 1 * 8 and 1 * 6. The arrangement mode is automatically switched according to the number of channels of the equipment. -
Page 16: Real Time Curve
S1500 Series 4.5 Real Time Curve As shown in the figure below, from left to right at the top of the interface are: unit selection, channel selection, start / pause icon. The bottom is the channel number and the latest real-time value. The color of the channel number is the same as that of the corresponding channel curve, and the bottom channel unit is corresponding to the left and right ordinates. -
Page 17: Historical Curve
S1500 Series 4.6 Historical Curve As shown in the figure below, from left to right at the top of the interface are: record file selec- tion, unit selection, channel selection; channel number and maximum / minimum value are displayed at the bottom (click the channel box to switch the maximum and minimum values), the digits’... -
Page 18: Start / Stop Recording
S1500 Series 4.7 Start / stop recording Start recording stop recording (1) Record file name: customizable, up to 24 bytes. The default is Log1, log2 . (2) Record interval: customizable, the shortest is 1 second, the longest is 86400 seconds (24h), only integer can be input. -
Page 19: Data Storage
S1500 Series 4.8 Data Storage 4.8.1 Record documents Click the box in front of the file to check the corresponding file. Click the top box to check all the files on the current page.Record the corresponding information at the bottom of the file interface... -
Page 20: Channel Settings
S1500 Series 4.9 Channel Setting The numbers on the left side of the channel setting ports are ch1 ~ ch16, Channel disabled / channel not configured: Ring gray; Channel configured successfully: Ring Blue; Currently selected channel: Green filling. The icon on the top of the interface is signal type, which indicates from left to right: Disabled (chan- nel not used), RTD (PT100), TC (thermocouple), DC voltage, DC current, thermistor, pulse (only used on channel 1). -
Page 21: Calibration Settings
S1500 Series 4.9.3 Calibration setting Slope: the slope value can be input. Intercept: intercept value can be entered. Algorithm: click the icon to enter the calibration algorithm wizard interface. In the algorithm wizard interface, you only need to input the measured values and standard values of the low calibration point and the high calibration point to calculate the calibration slope and intercept. -
Page 22: System Settings
S1500 Series 4.10 System Settings On the left side of the system setting interface are four functional options: system information, system display, sampling storage and network setting. 4.10.1 system information and program upgrade (1) Serial number (2) Hardware version number (3) software version number;... -
Page 23: Systems Display
S1500 Series 4.10.2 system display (1) Click time format to set 12 hours / 24 hours mode. (2)Click time setting, click up and down arrow to set year, month, day, hour, minute, morning and after- noon. (3) Click the left and right arrows on the backlight display to adjust the information screen time (1min, 10min, 30min, no time out). -
Page 24: Web Settings
S1500 Series Normal mode: Enter IP address, subnet mask and gateway information. Click the SSID name box, slide up and down the right progress bar, view and select the correspond- ing WiFi name (if the corresponding WiFi name is not found, click enter, manually enter the WiFi name, then enter the security key, click Update, and then click Connect), click apply, and then enter the security key. -
Page 25: Section 5 Fqa
S1500 Series Section 5 FQA Section 6 Daily maintenance When there is any foreign matter on the display screen, use a soft cloth to wipe the foreign matter away gently. When there is residual foreign matter on the protective sleeve, use soft cloth and soft deter- gent to remove the foreign matter. - Page 26 S1500 Series HUATO Electric CO.,Ltd Email: sales@huato.com Email： sales@huato.com Address: 3rd floor, building 2, No.1 Factory building, Taohuayuan science and Technology Innovation Park, Bao'an, Shenzhen Post code: 518102 Official website: www.huato.cn Service hotline: 0755-29977605 / 29748810 / 29977005 / 23081319 / 23081316...
