General Safety Summary
Symbols and Terms
Defines key terms and symbols used in safety warnings to ensure proper understanding and adherence.
Preface
Related Documentation
Lists other available documentation for the TLA 700 Series Logic Analyzer, providing comprehensive context.
Contacting Tektronix
Provides contact information for product support, including phone numbers, email, and website for assistance.
Operating Basics
Product Description

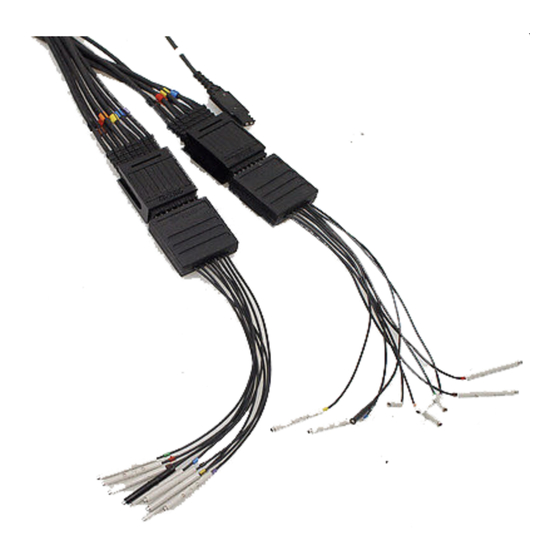

Offers a brief overview of the P6417 and P6418 logic analyzer probes, detailing their function and components.
Attaching Probe Labels
Guides users on applying color-coded labels to identify probe connections accurately at both ends of the cable.
Connecting the Probes
Details the process of connecting the logic analyzer probes to the target system using retaining brackets and specific methods.
Reference
Probe Connectors
Presents diagrams and dimensions for probe footprints, illustrating connector pin spacing and layout for both probe models.
Loading and Equivalent Circuits
Shows equivalent circuits for P6417 and P6418 probes to estimate their electrical loading impact on the target system.
Specifications
Lists the electrical and mechanical specifications for the P6417 and P6418 probes, including accuracy, capacitance, and slew rate.
Maintenance
Functional Check
Outlines the procedure to verify the basic operation of the probes by checking signal recognition at the probe tips.
Inspection and Cleaning
Provides instructions on how to maintain good electrical contact by cleaning the probes properly using a soft brush or damp cloth.
P6418 Probe Service Procedures
States that the P6418 probes have no user-replaceable parts and should be replaced entirely if a failure occurs.
Replacing Podlets on the P6417 Probes
Explains how to reposition or replace individual P6417 probe podlets using specific procedures for moving or replacing them.
Moving P6417 Probe Podlets
Details how to reposition probe podlets in the podlet holder, emphasizing keeping ground sides together.
Replacing Probe Podlets
Describes the procedure for identifying and replacing a faulty probe podlet with a new one from a replacement kit.
Repackaging Instructions
Offers guidance on proper repackaging of probes for shipping or storage, including necessary information to include.
Replaceable Parts
Parts Ordering Information
Details how to order replacement parts through Tektronix, emphasizing the information needed for accurate part procurement.
Using the Replaceable Parts List
Explains how to use the replaceable parts list, describing the columns and how they reference mechanical and electrical components.
