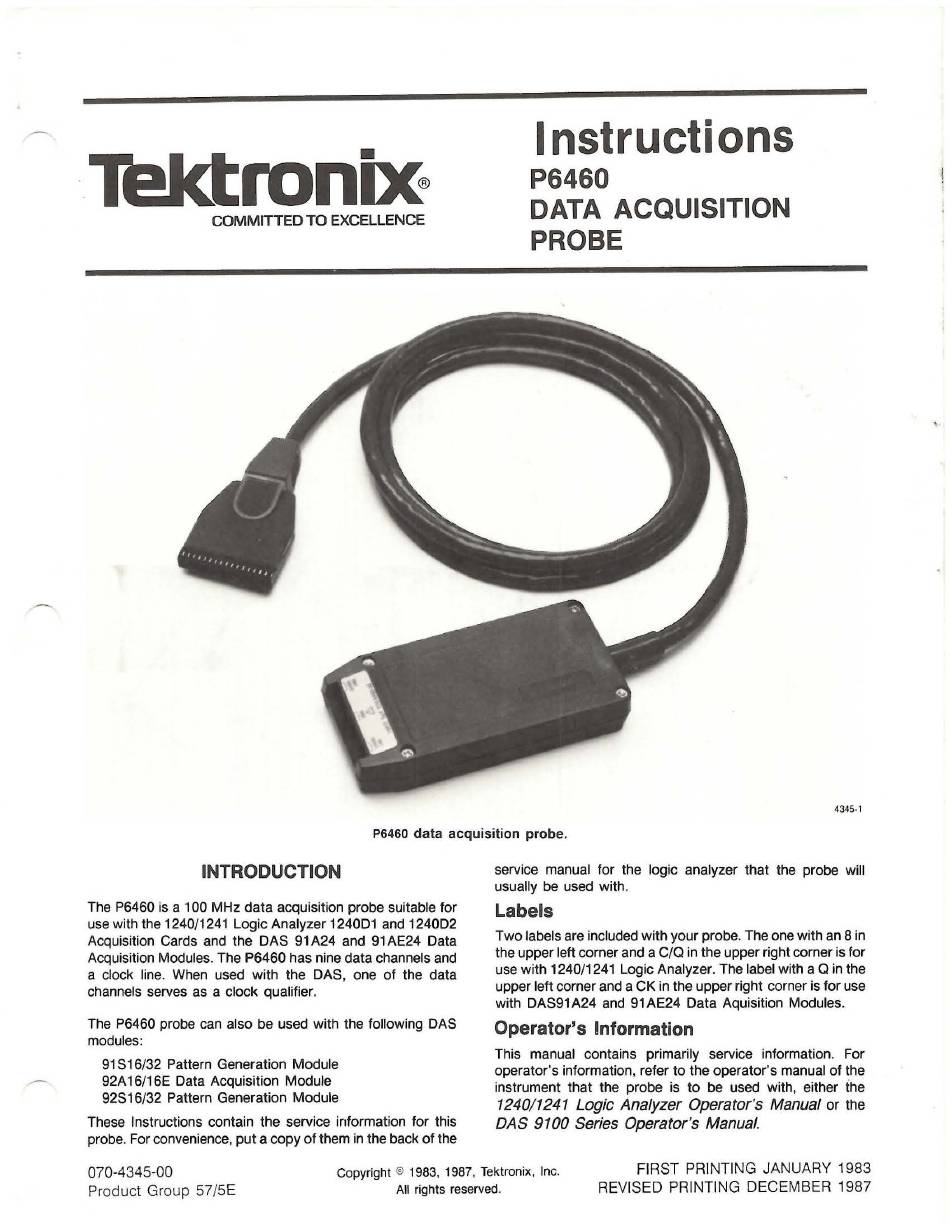

Instructions
P6460
DATA ACQUISITION
PROBE
4345-1
P6460
data
acquisition
probe.
INTRODUCTION
The P6460
is
a
100
MHz data acquisition probe suitable for
use
with the
1240/1241 Logic
Analyzer 1240D1 and
1240D2
Acquisition Cards and
the DAS
91 A24 and 91 AE24
Data
Acquisition
Modules.
The P6460 has nine data channels and
a clock
line.
When
used
with the
DAS,
one of
the
data
channels serves as a clock
qualifier.
The P6460 probe can also be
used
with the following
DAS
modules:
91 S 16/32 Pattern Generation Module
92A 16/16E Data Acquisition Module
92S 16/32 Pattern Generation Module
These
Instructions
contain the service
information
for this
probe.
For convenience, put a copy of them
in
the back of the
service manual for the
logic
analyzer that the probe will
usually
be used with.
Labels
Two
labels
are
included
with your
probe.
The one
with
an
8 in
the
upper
left
corner
and
a C/Q
in
the
upper
right corner is for
use
with
1240/1241 Logic
Analyzer.
The label with a Qin
the
upper
left
corner and a CK in
the upper
right
corner
is for
use
with
DAS91
A24 and 91 AE24 Data Aquisition
Modules.
Operator's Information
This manual contains primarily service
information.
For
operator's
information,
refer to the operator's manual of the
instrument that the probe
is to
be used with, either the
1240/1241
Logic
Analyzer Operator's Manual
or the
DAS 9100 Series Operator's Manual.
070-4345-00
Copyright
©
1983, 1987,
Tektronix,
Inc.
FIRST
PRINTING JANUARY 1983
REVISED PRINTING
DECEMBER
1987
Product
Group
57/5E
All
rights
reserved.
