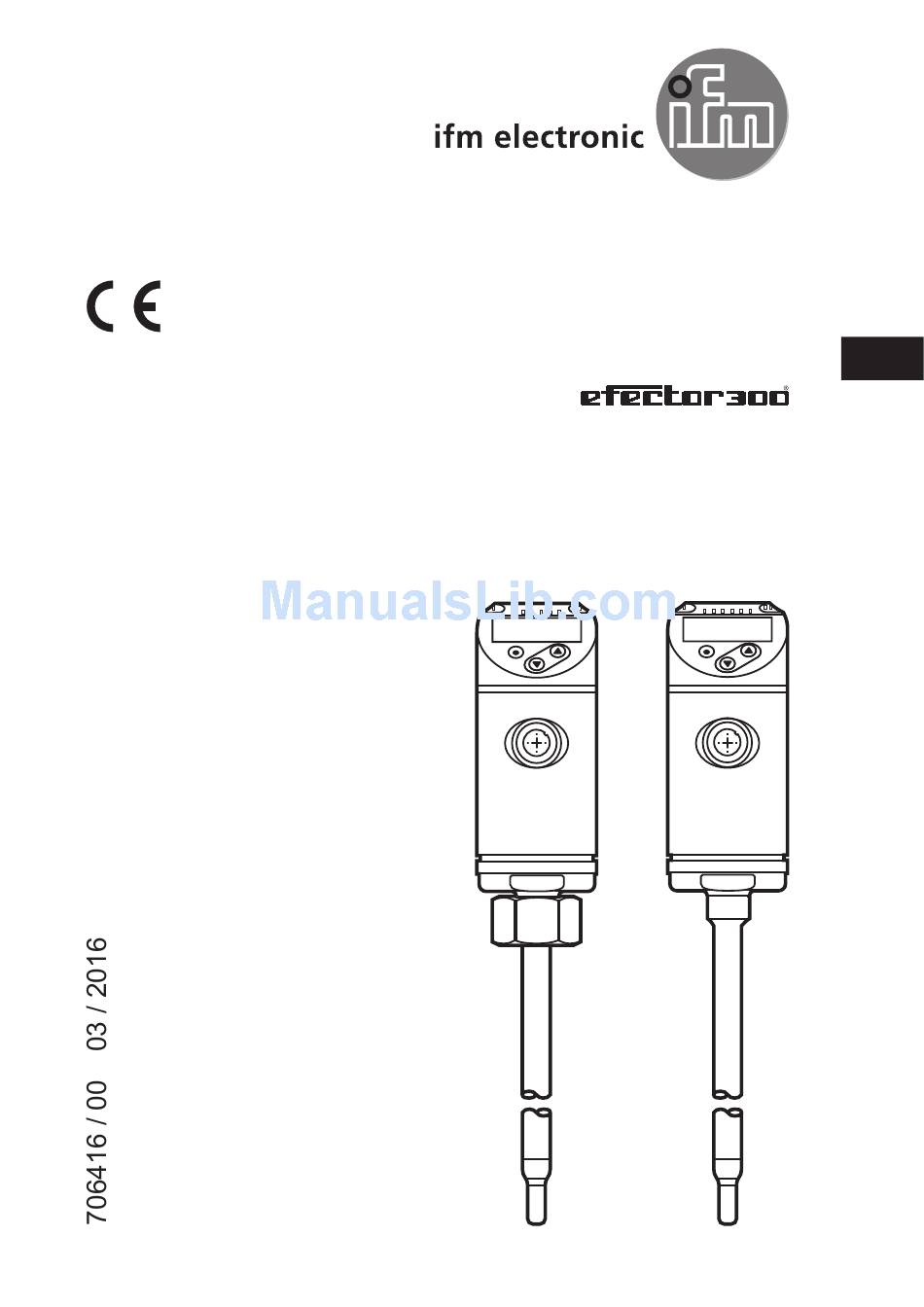

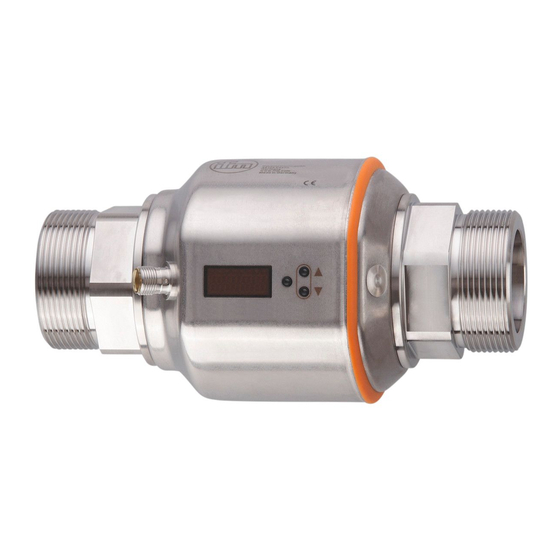

- Page 1 Amendment to the operating instructions: Selection of the operating mode via IO-Link interface SAxxxx...
-
Page 2: Operating Modes
1 Preliminary note Please read the supplied operating instructions for all articles described below prior to set-up. These instructions are an amendment to the supplied operating instructions of the SAxxxx flow sensors in which all setting options via the pushbuttons on the sensor are described. - Page 3 3.1 Procedure 1. Set the operating mode on the sensor: ► Change from the RUN mode to the initialisation menu [INI] ► Select [ModE] and define the operating mode: REL, GAS, LIQU. A medium and an internal pipe diameter must be entered for the operating modes LIQU and GAS.
-
Page 4: System Requirements
3. Transfer parameter set to other sensors: ► Connect the memory plug to the supply voltage. ► Connect the memory plug with a sensor of the same type. > The memory plug writes its parameter set to the sensor. Writing process Process terminated ►... - Page 5 4.1.2 IO-Link interface E30390 Required version: from firmware 2.1.5 – 1.2.5 (production after 17/02/2016, see label on the unit). The latest firmware is available for download at www.ifm.com. ► Download firmware and overwrite firmware on the IO-Link interface. Detailed function description →...
- Page 6 4.2 Procedure Example: SA5000 flow sensor. 1. ► Connect sensor to PC via IO-Link interface and read parameter settings via the LINERECORDER SENSOR. Possible error message: ► Update firmware (→ 4.1.2). The parameter for the operating mode [ModE] is displayed but cannot be changed.
- Page 7 3. ► Select IODD for the required operating mode. Each of the three operating modes has its own IODD: - SAxxxx (operating mode REL for flow measurement in liquids and air) - SAxxx_GAS (operating mode GAS for flow measurement in air) - SAxxx_LIQU (operating mode LIQU for flow measurement in liquids) If the required IODD is not available in the unit catalogue, it has to be downloaded in the online mode (→...
- Page 8 5. ► Save changed parameter set as lrp file. > > 6. ► Change to the online mode. In the offline mode, reading or writing to a connected device is not possible. The saved file with the parameter set can only be accessed in the online mode and then be written to the device.
- Page 9 7. ► Load parameter set as file. ► Open the lrp file stored in step 5. The lrp file contains the operating mode selected in step 3 with the parameter settings adapted in step 4. 8. ► Write the parameter set to the sensor. >...
