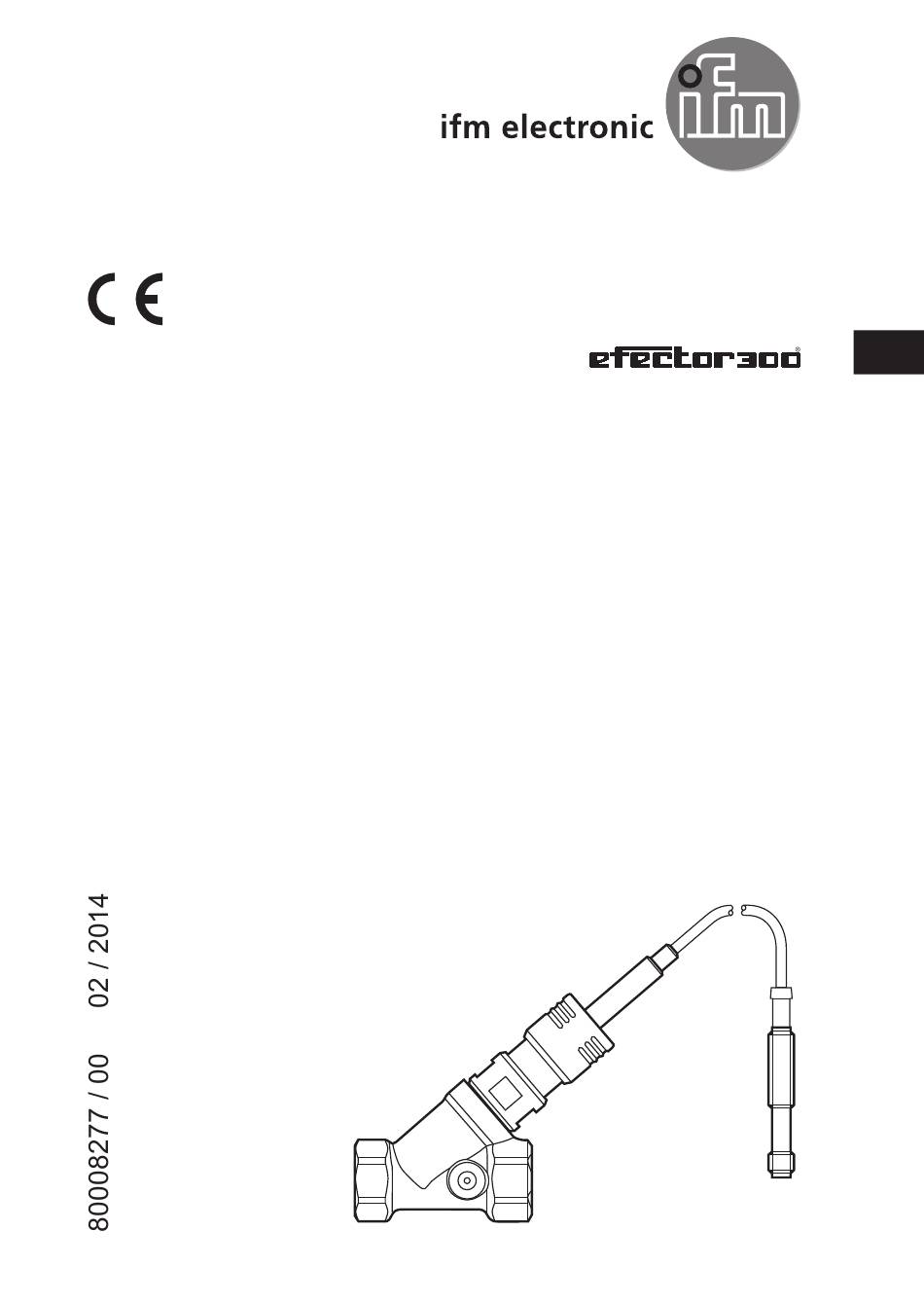

- Page 1 Operating instructions Mechatronic flow sensor SBT6xx...
-
Page 2: Safety Instructions
Contents 1 Preliminary note ....................2 2 Safety instructions ....................2 3 Functions and features ..................3 4 Function .......................4 5 Installation......................4 6 Electrical connection ....................5 7 Technical data and scale drawing ................5 8 Maintenance, repair, disposal ................5 1 Preliminary note ► Instructions >... -
Page 3: Functions And Features
• The responsibility whether the measurement devices are suitable for the respective application lies with the operator. The manufacturer assumes no liability for consequences of misuse by the operator. Improper installation and use of the devices result in a loss of the warranty claims. WARNING Personal injury can occur if the unit and connections become hot or media under pressure (up to 15 bar) or hot media (up to 180 °C) leak. - Page 4 4 Function Q [l/min] 1: final value of the measuring range The analogue signal for water (20 °C) is linear from 4 mA (= no flow) to 20 mA (= final value of the measuring range, see Technical Data). For an output signal > 20 mA the flow quantity is above the final value of the measuring range. 5 Installation ► Insert the unit into the Rp ¾ pipe according to the direction of flow (arrow) and tighten.
-
Page 5: Electrical Connection
► If the sensors are installed side by side, observe a minimum distance of 50 mm between the sensor axes. 6 Electrical connection The unit must be connected by a qualified electrician. The national and international regulations for the installation of electrical equipment must be adhered to.
