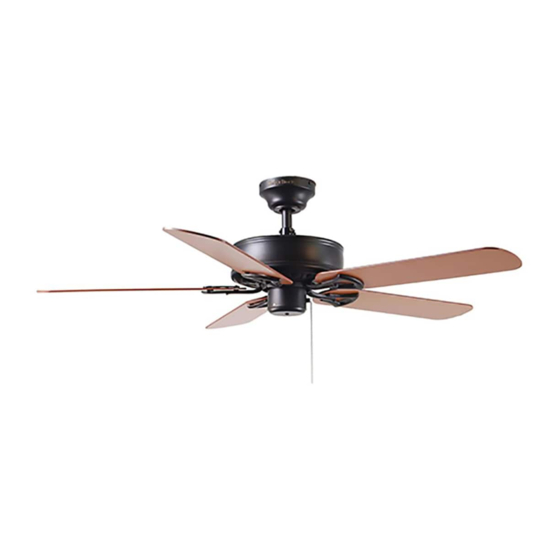

Harbor Breeze CLASSIC STYLE BDB52MBK5N Installation Manual

Hide thumbs Also See for CLASSIC STYLE BDB52MBK5N:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at
EST, Friday.
EB15397
CLASSIC STYLE CEILING FAN
Purchase Date
1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,
Lowes.com/harborbreeze
1
ITEM #0076888
0077285
0079837
0080297
MODEL #BDB52LW5N
BDB52ABZC5N
BDB52MBK5N
BDB52BNK5N
Español p. 18
LISTED
E192641

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLASSIC STYLE BDB52MBK5N and is the answer not in the manual?

Questions and answers

Related Manuals for Harbor Breeze CLASSIC STYLE BDB52MBK5N

Summary of Contents for Harbor Breeze CLASSIC STYLE BDB52MBK5N

  • Page 1 ITEM #0076888 0077285 0079837 0080297 CLASSIC STYLE CEILING FAN MODEL #BDB52LW5N Harbor Breeze® is a registered trademark BDB52ABZC5N of LF, LLC. All Rights Reserved. BDB52MBK5N BDB52BNK5N Español p. 18 LISTED E192641 ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-643-0067, 8 a.m.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Information ......................... 2 Package Contents ........................ 4 Hardware Contents ........................... 5 Preparation ........................... 5 Initial Installation ........................6 Downrod-Style Fan Mounting ....................7 Closemount-Style Fan Mounting ................... 9 Wiring ...........................11 Final Installation ........................12 Operating Instructions ......................14 Care and Maintenance ......................
  • Page 3 SAFETY INFORMATION DANGER When using an existing outlet box, make sure the outlet box is securely attached to the building structure and can support the full weight of the fan. Failure to do this can result in serious injury or death.

  • Page 4: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Downrod Motor Screw (preassembled) Canopy Blade Screw Mounting Bracket (preassembled) Motor Housing Lock Washer Plastic Locking Mechanism (preassembled) Blade Canopy Mounting Screw Blade Arm (preassembled) Pull Chain Extension Pin (preassembled) Clip (preassembled) IMPORTANT REMINDER: You must use the parts provided with this fan for proper installation * US Pat.

  • Page 5: Hardware Contents

    HARDWARE CONTENTS (shown actual size) E3 Wire Connector Qty. 4 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to install, operate or assemble the product.

  • Page 6: Initial Installation

    INITIAL INSTALLATION Turn off circuit breakers and wall switch to the fan supply line leads. DANGER: Failure to disconnect power supply prior to installation may result in serious injury or death. Determine mounting method to use. A. Downrod-style mount (standard or angled 19°...

  • Page 7: Downrod-Style Fan Mounting

    INITIAL INSTALLATION Secure mounting bracket (C) to outlet box (not STANDARD MOUNT ANGLE MOUNT included) using screws, spring washers and flat washers provided with the outlet box. *NOTE: It is very important you use the proper hardware when installing the mounting bracket (C) as this will support the fan.
  • Page 8 DOWNROD-STYLE FAN MOUNTING 2. Insert downrod (A) through canopy (B). Thread wires from motor housing (D) up through downrod (A). Slip downrod (A) into yoke, align holes and re-install pin (M) and clip (N). Tighten set screws in yoke and then tighten nuts on the set screws. Set Screw and Nut Depending on the length of downrod you use,...

  • Page 9: Closemount-Style Fan Mounting

    DOWNROD-STYLE FAN MOUNTING If you decided to cut back the lead wires in Step 4, strip 1/2 in. of insulation from end of white wire. Twist stripped ends of each strand of wire within the insulation with pliers (not included). Repeat Step 5 for black, blue (if applicable) and green wires.
  • Page 10 CLOSEMOUNT-STYLE FAN MOUNTING Remove every other screw and lock washer from top of motor housing (D). Remove pin (M), clip (N) and preassembled set screws and nuts from yoke on motor housing (D). They are not needed for this installation type. Set Screw Yoke and Nut...

  • Page 11: Wiring

    WIRING WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to the corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.

  • Page 12: Final Installation

    WIRING IMPORTANT: Using a full range dimmer switch (not included) to control fan speed will cause a loud humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer switch to control fan speed.
  • Page 13 FINAL INSTALLATION Note label on plastic locking mechanism (E) indicating THIS SIDE UP. Place the plastic locking mechanism (E) on the opposite side of the blade (F) as the blade arm (G), with the narrower end of the plastic locking mechanism (E) toward the end of the blade (F) and against the blade screw (J).

  • Page 14: Operating Instructions

    OPERATING INSTRUCTIONS The pull chain has four positions to control fan speed. One pull is HIGH, two is MEDIUM, three is LOW and four turns the fan OFF. Use the fan reverse switch, located on the switch housing, to optimize your fan for seasonal performance.

  • Page 15: Care And Maintenance

    OPERATING INSTRUCTIONS 2C. IMPORTANT: Reverse switch must be set either completely UP or completely DOWN for fan to function. If the reverse switch is set in the middle position, fan will not operate. CARE AND MAINTENANCE At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all screws on the fan.

  • Page 16: Limited Lifetime Warranty

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. Blades are loose. Excessive wobbling. 1. Check to be sure plastic locking mechanisms are secure. 2. Blade arms incorrectly attached. 2. Re-install blade arms. 3. Unbalanced blades. 3. Switch one blade with a blade 4.

  • Page 17: Replacement Parts List

    0080297-A Canopy 0076888-B 0077285-B 0079837-B 0080297-B Mounting Bracket 0076888-C 0077285-C 0079837-C 0080297-C Blade 0076888-F 0077285-F 0079837-F 0080297-F Blade Arm 0076888-G 0077285-G 0079837-G 0080297-G Printed in China Harbor Breeze® is a registered trademark of LF, LLC. All Rights Reserved. Lowes.com/harborbreeze JMLI1508...
