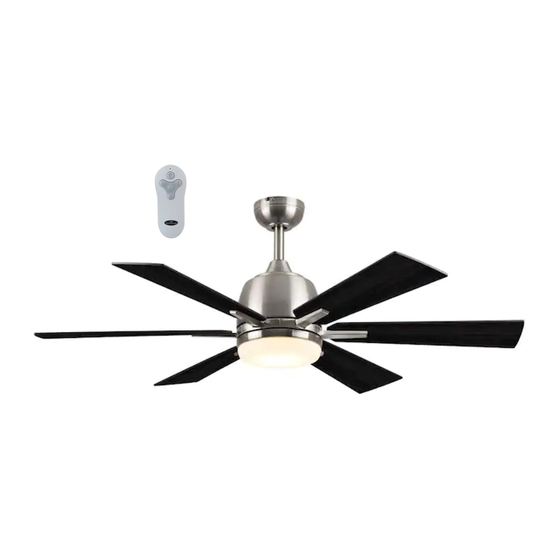

- Page 1 ITEM #2599780 4057329 4057327 BRADBURY CEILING FAN MODEL #BRD48BNK6LR HARBOR BREEZE and logo design are BRD48MBK6LR trademarks or registered trademarks of BRD60OSB6LR LF, LLC. All rights reserved. Español p. 22 ATTACH YOUR RECEIPT HERE ADJUNTE SU RECIBO AQUÍ 4007498 Purchase Date...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information ......................... 2 Package Contents ........................ 5 Hardware Contents ....................... 6 Preparation ........................... 6 Initial Installation ........................6 Downrod-Style Fan Mounting ....................8 Closemount-Style Fan Mounting ..................10 Wiring ...........................11 Final Installation ........................14 Operating Instructions ......................17 Care and Maintenance ......................19 Troubleshooting ......................... - Page 3 SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS Please read and understand this entire manual before attempting to assemble, install or operate the product. • Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs, it must be shipped in its original packaging to ensure proper protection against damage that might exceed the initial cause for return.
- Page 4 SAFETY INFORMATION WARNING WARNING To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control device or control fan speed with a full range dimmer switch. To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when installing them, balancing the blades or cleaning the fan.
-
Page 5: Package Contents
PACKAGE CONTENTS PART DESCRIPTION PART DESCRIPTION QUANTITY QUANTITY Downrod Canopy Mounting Screw/ Lock Washer Canopy (preassembled) Mounting Bracket Pin (preassembled) Motor Housing Clip (preassembled) Yoke Cover Motor Plate Screw LED Light Kit (preassembled) Blade Fitter Plate Screw Fitter Plate (preassembled) Shade Remote Pack Blade Arm... -
Page 6: Hardware Contents
HARDWARE CONTENTS (shown actual size) Fiber Blade Motor Screw Wire Blade Screw /Lock Washer Connector Washer Qty. 18 Qty. 12 Qty. 4 Qty. 18 + 1 extra + 1 extra + 1 extra PREPARATION Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on foam to avoid damage to finish. - Page 7 INITIAL INSTALLATION 2. Determine mounting method to use. A. Downrod mount (standard or angled ceiling) B. Closemount (standard ceiling only) 19° max. IMPORTANT: If using the angle mount, ensure the ceiling angle is not steeper than 19°. *Helpful Hint: Downrod-style mounting is best suited for ceilings 8 ft.
-
Page 8: Downrod-Style Fan Mounting
INITIAL INSTALLATION 5. Remove preassembled motor blocks from underside of motor housing (D). Discard the motor blocks. Motor Block For DOWNROD-STYLE FAN MOUNTING, proceed to Step 1 below. For CLOSEMOUNT-STYLE FAN MOUNTING, skip to page 10. Motor Block DOWNROD-STYLE FAN MOUNTING Remove pin (L) and clip (M) from downrod (A). - Page 9 DOWNROD-STYLE FAN MOUNTING 3. Slip downrod (A) into motor housing yoke, align holes and re-install pin (L) and clip (M). Tighten set screws in motor housing yoke and then tighten preassembled nut on one of the set screws. Then, slide yoke cover (E) down until it rests on top of motor housing (D).
-
Page 10: Closemount-Style Fan Mounting
DOWNROD-STYLE FAN MOUNTING Install hanging ball of downrod (A) into opening of mounting bracket (C). Align slot in hanging ball with tab in mounting bracket (C). DANGER: Failure to align the slot in the ball with the tab may result in serious injury or death. Continue to WIRING on page 11. -
Page 11: Wiring
CLOSEMOUNT-STYLE FAN MOUNTING 3. Pull wires up through hole in the middle of the Screw/Lock Washer canopy (B) and attach canopy (B) to motor housing (D) using the three previously removed screws/lock washers. Temporarily hang fan on the tab on the mounting bracket (C) using one of the non-slotted holes in the canopy (B). - Page 12 WIRNG 1a. Make the necessary wiring connections for remote control operation as detailed below and in the Wire Connectors accompanying drawing. For each wire connection, use one of the wire connectors from the remote pack (P), making sure to screw each wire connector on in a clockwise direction.
- Page 13 WIRING Wrap electrical tape (not included) around each individual wire connector (AA) down to the wire. WARNING: Make sure no bare wire or wire strands are visible after making connections. Place GREEN and WHITE connections on opposite side of the outlet box from the BLACK and BLUE (if applicable) connections.
-
Page 14: Final Installation
FINAL INSTALLATION Temporarily lift canopy (B) to mounting bracket (C) to determine which two canopy mounting screws/lock washers (K) in mounting bracket (C) align with slotted holes in canopy (B) and partially loosen these two canopy mounting screws/lock washers (K). Remove the other two canopy mounting screws/lock washers (K). - Page 15 FINAL INSTALLATION 4. Partially loosen two motor plate screws (N) in motor plate on underside of motor housing (D) and remove the other motor plate screw (N). Align slotted holes in fitter plate (H) with loosened motor plate screws (N), allowing molex connections from motor housing (D) to come through hole in fitter Motor plate (H).
- Page 16 FINAL INSTALLATION 7. Carefully arrange wiring within the fitter plate (H) to ensure wires do not get pinched when attaching the LED light kit (F). Align slotted holes in LED light kit (F) with loosened fitter plate screws (O) on fitter plate (H). Twist LED light kit (F) to lock in place.
-
Page 17: Operating Instructions
OPERATING INSTRUCTIONS CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. FCC Compliance Notice for Remote Control Modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment. - Page 18 OPERATING INSTRUCTIONS 2. Restore electrical power. Within 30 seconds of restoring electrical power, press and hold the “0” button on the remote control transmitter for 5 seconds or until light on the fan blinks twice. Use the remote control transmitter to test the light and fan functions to confirm the learning process is complete.
-
Page 19: Care And Maintenance
OPERATING INSTRUCTIONS 4A. In warmer weather, setting the reverse switch in the LEFT position will result in downward airflow creating a wind chill effect. 4B. In cooler weather, setting the reverse switch in the RIGHT position will result in upward airflow that can help move stagnant, hot air off the ceiling area. -
Page 20: Troubleshooting
TROUBLESHOOTING WARNING: Before beginning work, shut off the power supply to avoid electrical shock. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Fan does not 1. Reverse switch not engaged. 1. Push switch firmly either left or move. right. 2. Power is off or fuse is blown. 2. -
Page 21: Limited Lifetime Warranty
LIMITED LIFETIME WARRANTY The distributor warrants this fan to be free from defects in workmanship and materials present at time of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option, replace the ceiling fan with a comparable or superior model.
