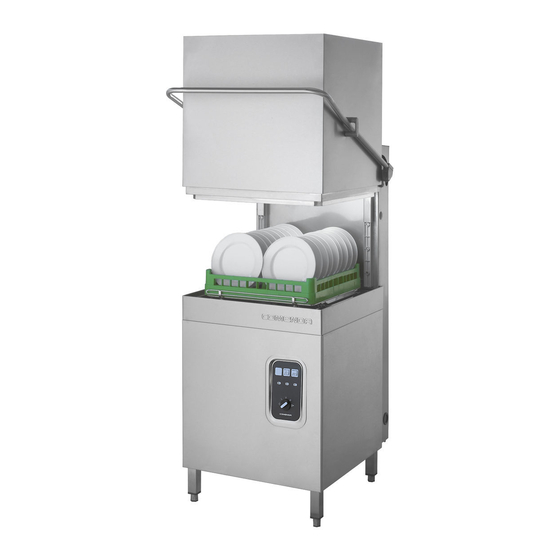

- Page 1 Manuale di istruzione per lavastoviglie Instruction manual for dishwashers Notice d’utilisation pour lave-vaisselle Gebrauchsanweisung für Geschirrspüler Mod. C1000E C1300E ELECTRONIC 2004...
- Page 2 INSTRUCTIONS FOR THE USER INTRODUCTION 1) Read carefully all instructions supplied in this manual which contains important information for correct installation, use and maintenance. Keep in a safe place for future reference. 2) After opening all packing, check to ensure if all is in order. If in doubt, do not use and contact a qualified professional to check the appliance.Remove all packing materials (plastic bags, styrofoam packing, nails or staples, etc.) away from the reach of children as they can present danger.
-
Page 3: Instructions For Use
INSTRUCTIONS FOR THE USER INSTRUCTIONS FOR USE... - Page 4 INSTRUCTIONS FOR THE USER THE COMMANDS PANEL H9 a H9 b H9 c H9 d DISPLAY...
- Page 5 INSTRUCTIONS FOR THE USER OPERATION AND USE HOW TO USE 1 Before using check that: -it is plugged in -the water supply is on -there is water in the pipe -the pump filter is correctly inserted -the overflow pipe is connected -the blades may move freely -temperatures used are those which are recommended at 55°C for washing and 85°C for rinsing.
- Page 6 INSTRUCTIONS FOR THE USER WASH CYCLE SELECTION 3. Press the "S9" button to select the wash cycle according to the dirtiness of the dishes: ??H9a short cycle: for glasses and cups; ??H9b medium cycle: for normally dirty dishes; ??H9c long cycle: for particularly deep or dirty dishes and for utensils;...
- Page 7 INSTRUCTIONS FOR THE USER IMPORTANT N.B.: Machine in conformity with the existing hygienic standards, guaranteeing a final rinse at 82°C. Wash cycle automatically lengthened if final rinse temperature is not reached. To avoid the machine blocking in this intervention, after 8 minutes the intervention is stopped and the cycle continues.
- Page 8 INSTRUCTIONS FOR THE USER MANUAL DRAIN 7 It is possible to empty the tank at any time of the day. With the machine off, take out the overflow pipe from the tank and wait until it is completely empty. For machines equipped with drain pump it is possible to empty the tank by starting the manual drain cycle during which only the drain pump is active.
- Page 9 INSTRUCTIONS FOR THE USER DEACTIVATING THE DISHWASHER AT THE END OF THE DAY 9.At the end of service, turn off by using the main wall switch and close the water valve. WARNINGS WHILE WASHING 1) Check that the washing temperature stays at 55°C 2) Do not use bare hands when handling soapy water.
- Page 10 INSTRUCTIONS FOR THE USER USEFUL ADVICE 1) MAINTANANCE: Before beginning any cleaning or maintanance operation, the machine MUST be disconnected from the main power supply. Frequently check and clean the blades, taking them out from the column to remove any debris or crustation. The frequency of this operation is suggested by the quantity of residue or by non-satisfactory results from washing.
- Page 11 INSTRUCTIONS FOR THE USER 4) SANITIZING It is vital to thoroughly clean the machine at least once a week. It is advisable to use specifically a detergent which disinfects, the use of which will substantially increase the following advantages: -Establishes a secure hygenic state by using active detergents and disinfectants.
- Page 12 INSTRUCTIONS FOR TECHNICAL PERSONNEL INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE This manual should be used by qualified personnel, authorized to examine and eventually repair the machine. The Manufacturer takes no responsibility for action taken by non-qualified personnel.
- Page 13 Supply 380V 3N Supply 220V/3 Supply 220V/1 C1000E C1300E For other supplies the cable cross section and the circuit breaker switch must be calculated according to voltage and length of cabling. If cabling too long adjust cable size to Amp rating; do not pull on supply cable or install it under...
- Page 14 INSTRUCTIONS FOR TECHNICAL PERSONNEL 2) WATER SUPPLY: Provide a water tap in an accessible location, size 3/4" gas, and that which is connected first to the filter, then to the discharge tube which are a part of the machine. Pay careful attention to National and Regional requirements.
- Page 15 INSTRUCTIONS FOR TECHNICAL PERSONNEL 6) VIEWING AND SETTING PARAMETERS The parameter programming environment can be accessed only with the machine off, by pressing the "S3" button. for 10 sec. There are three types of programmable parameters: P setting of functions (same for all cycles);...
- Page 16 INSTRUCTIONS FOR TECHNICAL PERSONNEL 6.2 CHANGING "t" and "L" PARAMETERS Choose the cycle to change using the "S9" button. Press the "S10" button to enter the programming phase. ?? The display shows "t.1. .". Press "S3" to view the value set for the tank temperature of the cycle selected.
- Page 17 INSTRUCTIONS FOR TECHNICAL PERSONNEL 7) SELF DIAGNOSTICS: ALARMS AND FUNCTIONS ON THE DISPLAY The alarm codes and indication of the functions active while the machine is operating are: ? ? OFF.: MACHINE OFF. ? ? A 1: CYCLE NOT COMPLETED (appears upon turning the machine on after interrupting a cycle using the "Q1".
- Page 18 Consumption Heater Heater Power hourly capacity per cycle (L) capacity with water with water at 12°C at 55°C C1000E 3.000 9.000 1100 10.100 55/36/24 C1300E 3.000 10.000 1500 11.500 72/40/30 The rack capacity diminishes for water feeders with a lower capacity.
-
Page 19: Electrical Information
INSTRUCTIONS FOR TECHNICAL PERSONNEL ELECTRICAL INFORMATION control console printed circuit board Drill for boiler temperature Drill for tank temperature noise filter Boiler heater Tank heater Main fuse Wash pump overload relay Printed circuit fuse H9..Cycle selected indicator lamp Display Main relay Boiler heater contactor KE2b...
