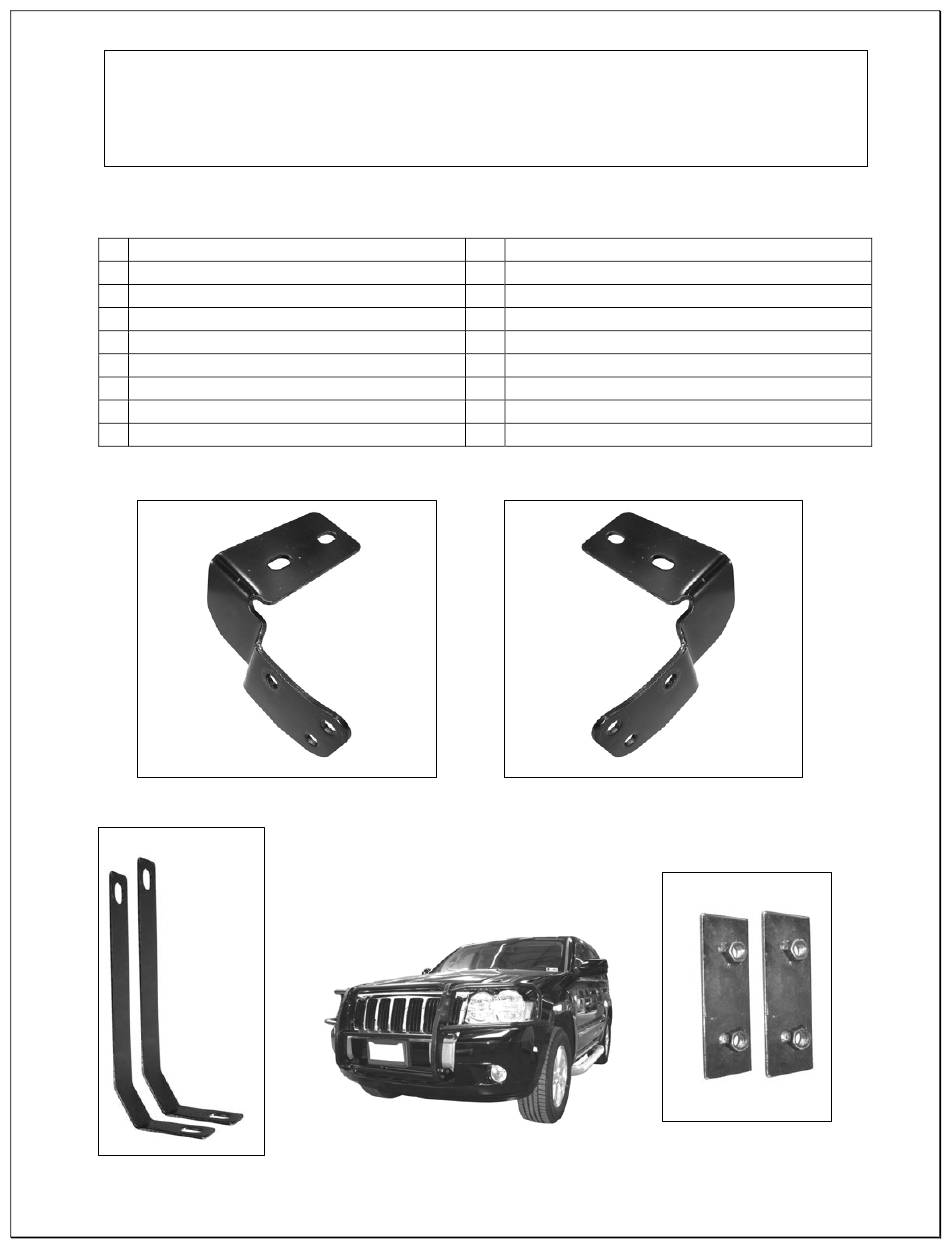

PARTS LIST:
1 Grille Guard
1 Driver/Left Mounting Bracket
1 Passenger/Right Mounting Bracket
2 10mm Double Nut Plates
2 Top Brackets
Top Brackets
INSTALLATION INSTRUCTIONS
GRILLE GUARD
05-10 JEEP GRAND CHEROKEE
PART # 1046/1046-2
Passenger Side
Mounting Bracket
Page 1 of 4
6 12-1.75mm x 35mm Hex Head Bolts
6 12mm Hex Nuts
6 12mm Lock Washers
12 12mm ID x 30mm OD x 3mm Flat Washers
2 10-1.50mm x 30mm Button Head Bolt
4 10-1.50mm x 35mm Hex Head Bolts
6 10mm ID x 26mm OD x 3mm Flat Washers
6 10mm Hex Nuts
6 10mm Lock Washers
Driver Side
Mounting Bracket
Double Nut Plates
3/11/08 (AM)
Advertisement
Related Manuals for Aries 1046
Summary of Contents for Aries 1046
- Page 1 INSTALLATION INSTRUCTIONS GRILLE GUARD 05-10 JEEP GRAND CHEROKEE PART # 1046/1046-2 PARTS LIST: 1 Grille Guard 6 12-1.75mm x 35mm Hex Head Bolts 1 Driver/Left Mounting Bracket 6 12mm Hex Nuts 1 Passenger/Right Mounting Bracket 6 12mm Lock Washers 12 12mm ID x 30mm OD x 3mm Flat Washers...
- Page 2 PROCEDURE: 1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. 2. Starting on the driver side of the vehicle, through bumper intake locate the three factory holes in the bottom of the radiator support and insert one of the 12mm Double Nut Plates trough the inside square hole and oriented to small round hole (Figure 1).
- Page 3 Remove these plastic fasteners Fig 3 (Passenger Side Top Bracket Installation) Remove this Factory bolt factory bolt Top Bracket Fig 4 Fig 5 (Driver Side Top Bracket Installation) Mark plastic shroud here Remove this factory bolt Fig 6 Fig 7 Page 3 of 4 3/11/08 (AM)
- Page 4 Factory Bolt Top Bracket Fig 8 Fig 9 Top Bracket Fig 10 Fig 11 Fig 12 10mm x 30mm Button Bolt 12mm x 35mm Hex Bolts 10mm Lock Washer 12mm Lock Washers 10mm Hex Nut 12mm Hex Nuts 10mm Flat Washers 12mm Flat Washers Page 4 of 4 3/11/08 (AM)
