Aries 1110310 Installation Manual

INSTALLATION MANUAL

Parts List

2 Headache rack tie down
2 Threaded knob, M8
2 Hex bolt, M8 - 1.25 x 20mm

Torque Specifications

M6 bolt 3 ft.-lbs.
M8 bolt 7 ft.-lbs.
M10 bolt 16 ft.-lbs.
M12 bolt 28 ft.-lbs.
1/4" bolt 3 ft.-lbs.
5/16" bolt 7 ft.-lbs.
3/8" bolt 16 ft.-lbs.
7/16" bolt 20 ft.-lbs.
1/2" bolt 28 ft.-lbs.
Caution: Do not use in this manner

Level of Difficulty

Easy

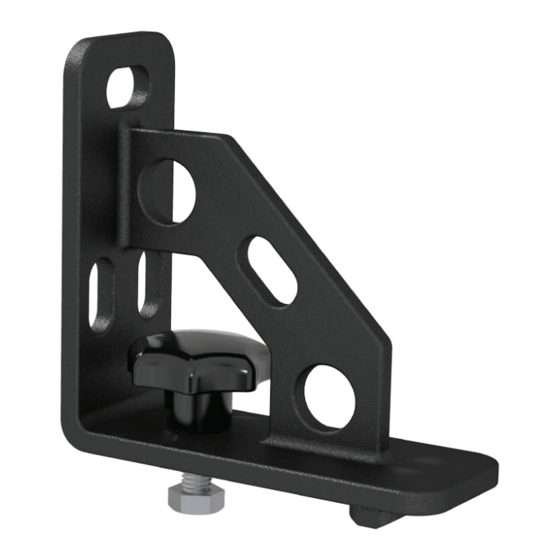

Product Image

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.
For black finishes, mild soap may be used to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
Caution: Failure to follow the guidelines below and on page 2 may result in damage
or loss of load. This includes, but not limited to, damage to tie downs, headache
rack and vehicle. It is the drivers responsibility to ensure the load is secure and to
periodically check to make sure the load remains secure.
Headache rack tie downs are designed to withstand
150 pounds of straight line tension force.
Any hooks placed into tie downs must be small enough
to fit completely into holes or slots and and should also rotate freely.
Tie downs should not be used to secure loads in the bed of pickup truck or any
other place that would cause the tie downs and headache rack to be side loaded.
Tie downs should only be used to secure loads on top of headache rack.
PAGE 1 • 1110310-INS-RA • 800.798.0813 • NEED ASSISTANCE?
