Aries 1110311 Installation Manual

INSTALLATION MANUAL

Parts List

2 Light mounting bracket
2 Hex bolt, M8
2 Flat washer, M8
2 Lock washer, M8
2 Hex nut, M8
2 Nut plate, M8

Tools Required

Torque wrench Socket, 13mm
Extension --

Torque Specifications

M6 bolt 3 ft.-lbs.
M8 bolt 7 ft.-lbs.
M10 bolt 16 ft.-lbs.
M12 bolt 28 ft.-lbs.
1/4" bolt 3 ft.-lbs.
5/16" bolt 7 ft.-lbs.
3/8" bolt 16 ft.-lbs.
7/16" bolt 20 ft.-lbs.
1/2" bolt 28 ft.-lbs.
Level of Difficulty
Easy

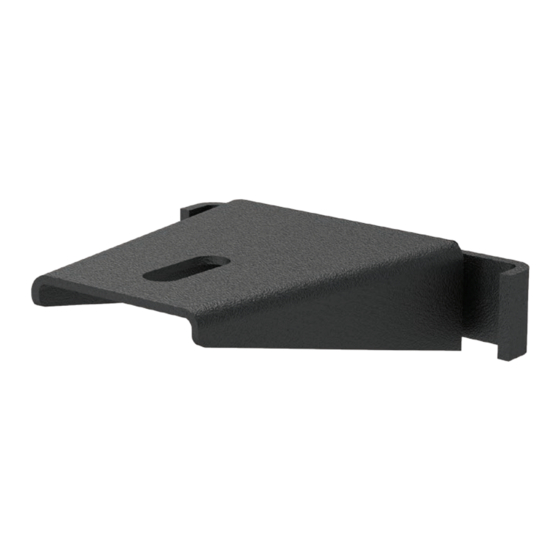

Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For black finishes, mild soap may be used to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
PAGE 1 • 1110311-INS-RA • 800.798.0813 • NEED ASSISTANCE?
1110311
Scan
for helpful
install tips
• ARIESAUTOMOTIVE.COM
