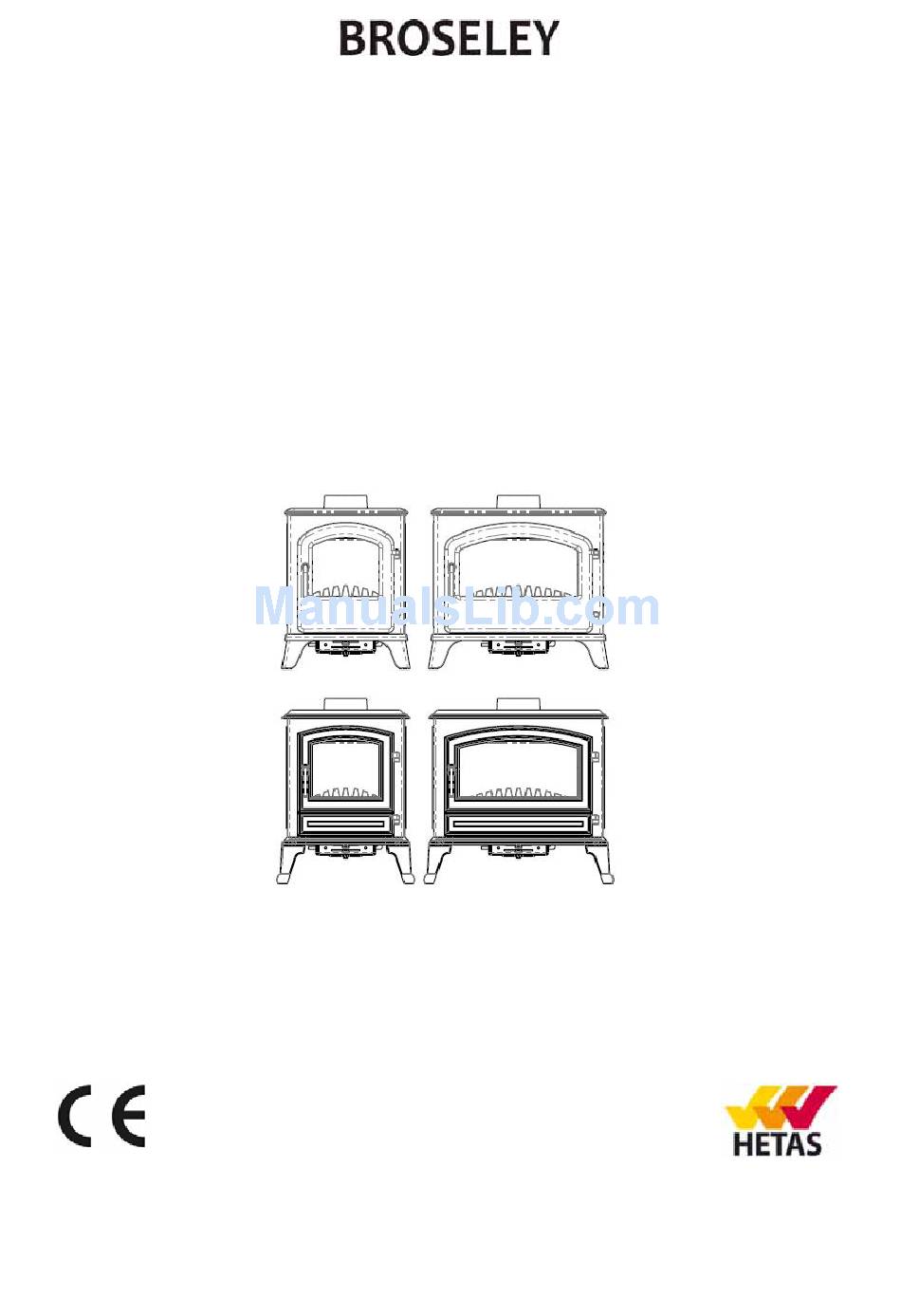

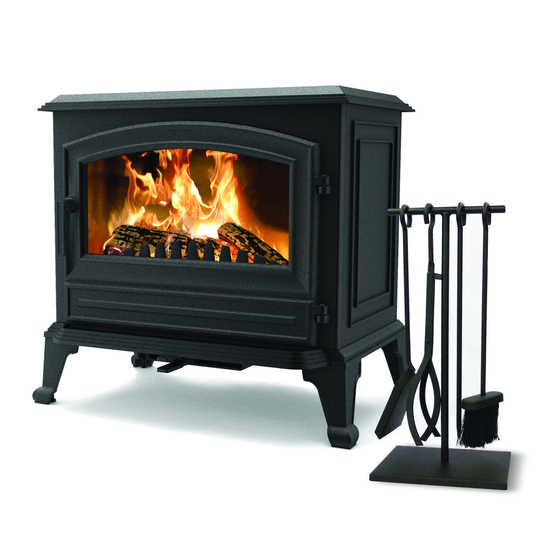

- Page 1 Installation & Operating Instructions Covering Models: York Midi SE, York Grande SE, Serrano 5 SE, Serrano 7 SE, Standard & Log Store Multifuel Stoves Tested to EN 13240 These appliances must be installed and commissioned by a HETAS registered engineer...
-
Page 2: Table Of Contents
Contents Introduction Packing List Health & Safety Specifications Dimensions Hearth Requirements & Clearances Chimney Requirements Combustion Air Requirements Assembly Stove Operation Controls Layout Controls Explained Air wash System Ash Pan Recommended Fuels 16 Lighting the Stove Kindling Stage Burning Wood & Burning Coal Smoke Exempt Requirements Lighting Sequence (in a smoke controlled area) Warning Notes... -
Page 3: Introduction
2007 + A1 2010 as an alternative means to achieve an equivalent level of performance to that obtained following the guidance given in Approved Document J. Please note that it is a requirement under the Broseley Fires warranty system that the installation of the stove is carried out by a Competent Person registered with a Government approved Competent Persons Scheme. -
Page 4: Health & Safety
Health & Safety Special care must be taken when installing the stove such that the requirements of the Health and Safety at Work Act are met. Installation This appliance MUST be installed and commisioned by a HETAS registered installer in England and Wales and a fully qualified Heating Engineer in Scotland and Ireland. -
Page 5: Specifications
Specifications In the UK these stoves have been approved by HETAS Ltd as intermittent heating appliances for burning coal suitable for a closed appliance and wood logs only. York Serrano York Serrano Serrano 5 Serrano 7 Midi Grande Logstore Logstore Nominal Heat Output (Wood) Nominal Heat Output (Ancit) Efficiency (Wood) %... -
Page 6: Dimensions
Dimensions Serrano 5 SE Serrano 7 SE York Midi SE York Grande SE OCT10/GB Issue 4d... - Page 7 Dimensions Serrano 5 SE Logstore Serrano 7 Logstore OCT10/GB Issue 4d...
-
Page 8: Hearth Requirements & Clearances
Material Rear Side Hearth Above Combustible 400mm 750mm 300mm 600mm Serrano 5 SE York Midi SE Non-combustible 100mm 100mm 300mm 100mm Serrano 7 SE Combustible 550mm 550mm 300mm 600mm York Grande SE Non-combustible 100mm 100mm 300mm 100mm Combustible 300mm 575mm 300mm 600mm... -
Page 9: Chimney Requirements
Chimney Requirements This appliance must not be fitted into a chimney serving another heating appliance. It is most important that there is no obstruction in the flue or chimney. Please ensure that any existing chimney is clear of obstruction and swept clean immediately before installation of the new stove. -
Page 10: Combustion Air Requirements
Combustion Air Requirements In order for the stove to perform efficiently and safely there should be an adequate air supply into the room in which the stove is installed to provide combustion air. This is particularly necessary in modern houses where drafts have been almost eliminated by double glazing etc. -
Page 11: Assembly
Assembly The diagram below shows the stove with all internals taken out. To take internals out of the stove follow the numbered sequence backwards from 6 down to 1. m 6 down to 1. To refit the internals follow the numbered sequence from 1 – 6. The firebricks should fit quite snug however small gaps are acceptable due to cast iron tolerances. - Page 12 Assembly It is possible to remove the stove from the store ( Serrano log store versions) this may be necessary for transport purposes. The diagram below shows the locations of the fixings (4x bolts labelled 1) which hold the stove to the log store. OCT10/GB Issue 4d...
- Page 13 Assembly Smoke exempt modification Your stove will come pre-set for use in a smoke control zone. The threaded bar indicated on the diagram below (marked 3) prevents the air slider from fully closing, this allows a small amount of combustion air into the fire chamber to comply with smoke control regulations.
-
Page 14: Controls Layout
Controls Layout The stove is fitted with two air controls which need to be correctly operated in order to light and maintain a fire. Both controls are situated below the ash lip of the stove (as indicated on the diagram below) and are in the form of sliders. OCT10/GB Issue 4d... -
Page 15: Controls Explained
Controls Explained Primary Air Intake The primary air intake is the bottom slider situated below the ash lip at the front of the stove. Having the slider pushed to the left (Shown centrally in the diagram previous) would indicate the intake is closed. When the slider is moved fully to the right the intake is completely open. -
Page 16: Recommended Fuels
Recommended Fuels This appliance has obtained approval from HETAS Ltd., for burning – * HETAS approved coal suitable for a closed appliance. * Split Wood logs not exceeding 35cms in length and not over 20% moisture content. Approval does not cover the use of other fuels either alone or mixed with the suitable fuels listed above. -
Page 17: Lighting The Stove
Lighting the Stove Curing On initial firing you will notice a very pungent odour, this is caused through the curing of the paint, we recommend starting with short burning sessions (with smaller quantities of fuel) and build up gradually to allow the components of the stove to settle. Opening doors and windows will allow the paint curing odour to dissipate and to allow ventilation into the room. -
Page 18: Burning Wood & Burning Coal
Burning Wood Once you have kindled your stove (see previous page) and your chimney (flue) is sufficiently heated, you are now ready to start adding you logs. Stage 4 Place 1-3 small logs onto the bed of hot embers using the gloves provided, close the door and reduce the Primary Air Control to approximately half way. -
Page 19: Smoke Exempt Requirements
Smoke Exempt Requirements The Clean Air Act 1993 and Smoke Control Areas Under the Clean Air Act local authorities may declare the whole or part of the district of the authority to be a smoke control area. It is an offence to emit smoke from a chimney of a building, from a furnace or from any fixed boiler if located in a designated smoke control area. -
Page 20: Lighting Sequence (In A Smoke Controlled Area)
Lighting Sequence (in smoke controlled areas) Using the approved appliance in a smoke controlled area Ignition sequence – burning wood For the appliance to burn cleanly, it is important to establish a hot fire as quickly as possible. The following sequence should be followed at the ignition stage: •... -
Page 21: Maintenance
Maintenance Ash Removal The ash pans can be removed by using the ash tool to hook it forward so that you can grasp the pan using the gloves provided. We would recommend emptying the ash into a metal bucket for transportation. You should only empty the ash when the appliance and ashes are completely cool and can be disposed of in your normal household refuse. -
Page 22: Trouble-Shooting
Trouble-shooting Smoke comes out of the stove when the loading door is opened. • The chimney cavity into which the 125mm flue pipe has been installed may be less than the minimum requirement. • Deposits (soot or other obstructions) may have built up in the chimney and be restricting the flow of waste products. -
Page 23: Commissioning Form
Commissioning Form Commissioning Statement and Check-list Stove Purchased From:_________________________________________________________________ Address:_______________________________________________________________ Telephone Inc area code:_________________________________________________ Installation Date:_____/_____/__________ Stove Name:________________________ year service is due 1 year from this date Product Serial Number:________________ Invoice Number:_____________________ Stove installed by:_______________________________________________________ Address:_______________________________________________________________ Telephone Inc area code:_________________________________________________ HETAS Registration Number:______________________________________________ Check-list (please indicate Yes or No by circling or ticking appropriatley) Is the flue system the correct length and diameter for stove:... -
Page 24: Spare Parts
Spare Parts (1) Side (2) Front (3) Glass Clip (4) Left Firebrick (5) Lid (6) Spigot (7) Baffle (8) Grate (9) Ash Pan (10) Rear Firebrick (11) Air Wash Section (12) Slider Bracket 1 (13) Slider Bracket 4 (14) Slider Bracket 3 (15) Rear (16) Blanking Disc (17) Air Inlet (18) Slider Rod (19) Slider 1 (20) Slider Way (21) Slider 2 Pusher (22) Slider 4 Pusher (23) Slider Bracket 2 (24) Slider 2 (25) Right Firebrick (26) Leg (27) Bottom Cover (28) Lever 2 (29) Lever 1 (30) Lever Overlay (31) Base (32) Hinge... -
Page 25: Ec Declaration
CE MARKING INFORMATION - EN 13240 See Specification Particulate/Smoke Conditions Exempt As the Manufacturer's authorised representative established within the EEC, Broseley Fires Ltd Declare sole responsibility that the product for mentioned follows the provisions of the directives above. 13/11/2013 Shrewsbury UK... - Page 26 CE MARKING INFORMATION - EN 13240 See Specification Particulate/Smoke Conditions Exempt As the Manufacturer's authorised representative established within the EEC, Broseley Fires Ltd Declare sole responsibility that the product for mentioned follows the provisions of the directives above. 13/11/2013 Shrewsbury UK...
-
Page 27: Annual Service Record
Annual Service Record 1ST YEAR SERVICE completion date: SERVICE ENGINEER: REG. No. COMPANY NAME: . COMPANY ADDRESS: . POSTCODE: CONTACT NUMBER 2ND YEAR SERVICE completion date: SERVICE ENGINEER: REG. No. COMPANY NAME: . COMPANY ADDRESS: . POSTCODE: CONTACT NUMBER 3RD YEAR SERVICE completion date: SERVICE ENGINEER: REG. -
Page 28: Warranty
Should you wish to claim under the warranty, please contact the supplier / dealer from whom you purchased the appliance. Do not claim directly to Broseley Fires, as they are unable to process any direct claim from an end user.
