Wheelhouse units

Note:
Rear side of the
APC10 Sonar
Processor Unit
152

Cleaning

The units must be kept clean and dry. Remove salt water residue
with a soft cloth moistened in fresh water. Do not use strong
solvents.
The display screen must be handled with care to avoid damage
to the anti-glare filter coating. Use a soft cloth without any
strong solvents when cleaning it.

Dust filter

To avoid overheating, the dust filter(s) must be inspected, and if
necessary, cleaned once every third month.
Due to design changes, your sonar may be equipped with either
of the following computers.
APC10 Sonar Processor Unit

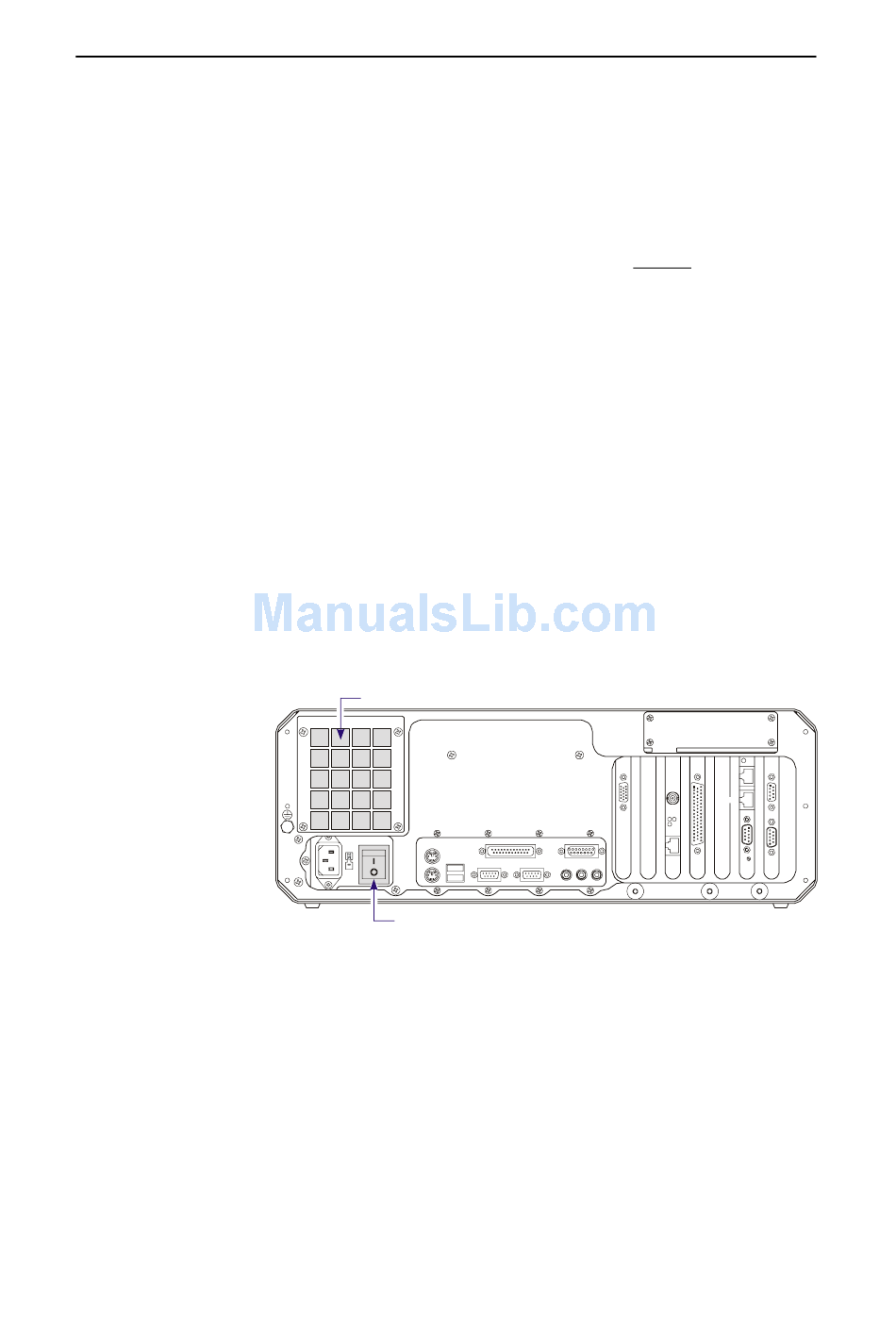

The dust filter on the APC10 is located on the air inlet on the
rear side of the Sonar Processor Unit.
Dust filter
S102
The filter is accessible by unscrewing the four screws which
fasten the filter grid. The filter should be vacuum cleaned, or
washed in soap and water. If washed, the filter must be dried
thoroughly before being reinstalled.
