Display organisation

A E
857-160970 / Rev.H

Main view

The ES60 display is organised as follows (from top):
• Menu bar
• For each transceiver channel:
- Two echo frames
• Status bar

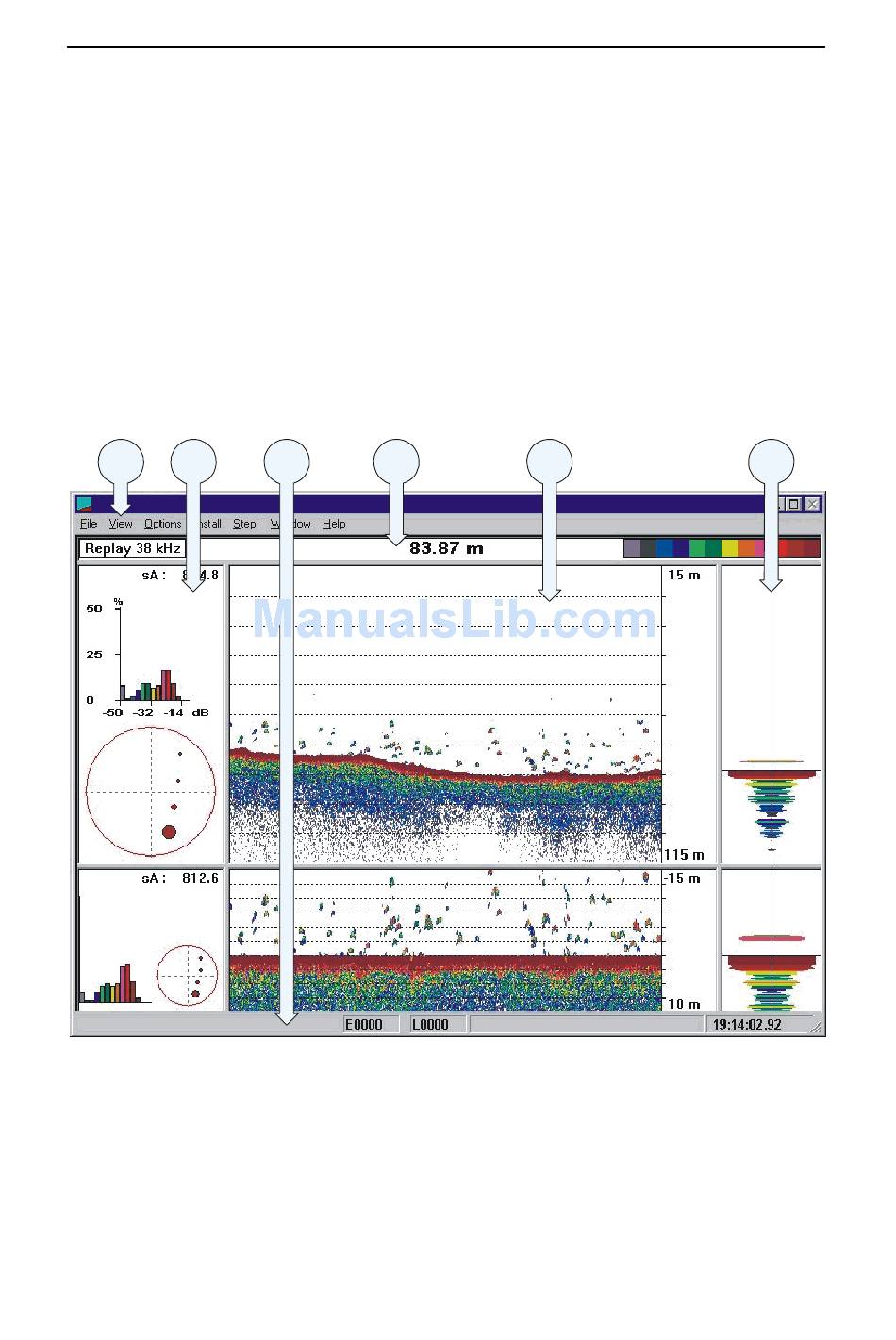

A single channel display is shown below as an example.
F B
(A) Main menu
(C) Echogram and range view
(E) Single echo view
Display views
C
(B) Header view
(D) Scope view
(F) Status bar
D
(CD10202)
13
