Temperature Sensor

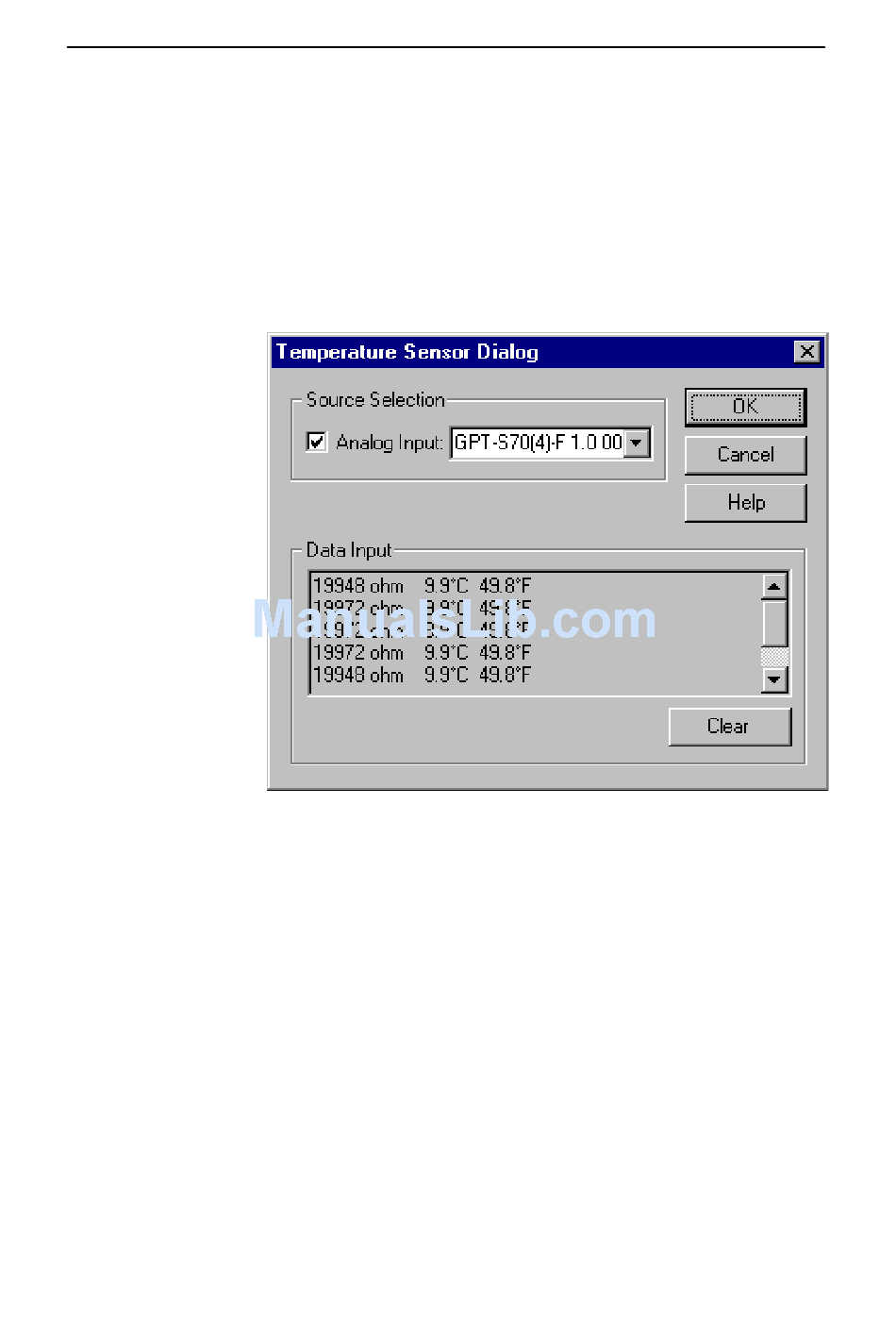

The Temperature Sensor dialogue box is accessed from the
Install menu. Water temperature is shown on the echo sounder
display provided a thermistor (temperature sensitive resistor, 10
kohm at 25 deg C) is interfaced to the system.
The thermistor wires are connected directly to the Auxiliary
connector of the nearest transceiver.
Analog Input - Select the appropriate transceiver from the list
of installed transceivers. Each entry in the list contains
transceiver type, operating frequency, unique identifier, channel
number and transducer type. The GPT uses its Ethernet address
for unique identification.
Data Input - The most recent input data are displayed in a list.
Measured thermistor resistance and the computed temperature
value are displayed. This function is useful during installation
and troubleshooting.
Clear - This button clears the input data list.
