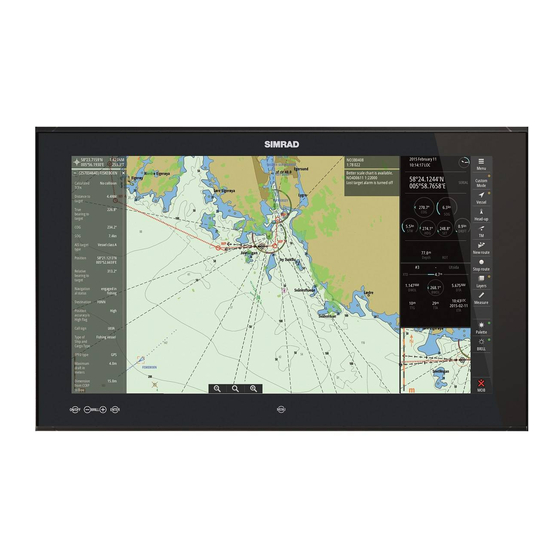

Maris™ ECDIS900 System
Installation Manual
ENGLISH
www.navico-commercial.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Maris ECDIS900 and is the answer not in the manual?

Questions and answers

Related Manuals for Simrad Maris ECDIS900

Summary of Contents for Simrad Maris ECDIS900

  • Page 1 Maris™ ECDIS900 System Installation Manual ENGLISH www.navico-commercial.com...

  • Page 2: Preface

    MARIS ECDIS900 Installation Manual PREFACE DISCLAIMER As Navico is continuously improving this product, we retain the right to make changes to the product at any time which may not be reflected in this version of the manual. Please contact your nearest distributor if you require any further assistance.
  • Page 3 • Navico® is a trademark of Navico Holding AS. • SIMRAD® is a trademark of Kongsberg Maritime AS, Licensed to Navico Holding AS. • C-MAP® is a trademark of Navico Holding AS. • NMEA® is a trademark of National Marine Electronics Association.

  • Page 4: Table Of Contents

    SINGLE ECDIS ................................7 DUAL ECDIS ................................. 9 TRIPLE ECDIS ................................10 FULL MARIS SYSTEM ..............................11 FACTORY DEFAULTS FOR MARIS ECDIS900 MK15/16 ....................12 IEC 61162-450 COMPLIANCE ............................ 13 BRIDGE ALERT MANAGEMENT INTERFACES ......................15 ALERT ID AND TEXT ..............................16 SERIAL INTERFACE, SIS4000-MK2 ........................
  • Page 5 MARIS ECDIS900 Installation Manual TERMINAL LAYOUT FOR 24’’ ............................. 42 WIRING DETAILS FOR MK15 ............................43 HATTELAND FLAT PANEL COMPUTER MK15 ......................43 HATTELAND MONITOR HD26T21 ..........................44 ECDIS900 PC MK5 ..............................44 INSTALLATION KITS ..............................45 SIS4000-MK2 INSTALLATION AND CONFIGURATION ....................47 C-MAP CHART INSTALLATION ...........................

  • Page 6: System Overview

    Stand-alone unit MARIS ECDIS900 MK15 19” 4S MARIS ECDIS900 MK15 24” 4S Split unit MARIS ECDIS900 MK5 and MK5A can be delivered with four different monitors: • Hatteland 24" monitor • Hatteland 26" monitor • Simrad M5024 • Simrad M5027 Both variants have VGA output for a slave monitor that can be used for Conning Display or installed in the captain’s quarter.

  • Page 7: Single Ecdis

    MARIS ECDIS900 Installation Manual SINGLE ECDIS MINIMUM CONFIGURATION Important: An RJ45 loop-through network plug must be fitted to avoid network problems. The MK15 minimal configuration is as follows: STANDARD DELIVERY FOR MK15 The standard delivery of a single ECDIS includes: •...
  • Page 8 MARIS ECDIS900 Installation Manual • MARIS ECDIS900 24" Monitor • KIT, D-SUB FOR HATTELAND MONITORS • KEYBOARD CHERRY US/ENGLISH, USB • MOUSE, LOGITECH MARBLE USB • SIS4000 MK2 - 8CH SERIAL TO LAN • ECDIS900 Documentation and installation kit Page 8...

  • Page 9: Dual Ecdis

    MARIS ECDIS900 Installation Manual DUAL ECDIS MINIMUM CONFIGURATION This is the typical configuration on board most ships. The system meets IMO minimum requirements for sailing paperless. Note that the mandatory signals are hardwired to each computer. One fail does not affect the rest of the equipment that stays fully functional.

  • Page 10: Triple Ecdis

    MARIS ECDIS900 Installation Manual STANDARD DELIVERY OF ECDIS MK5 The standard delivery of dual ECDIS includes: • Two split units (PC and monitor), including 8 channels NMEA interface (SIS4000-MK2) • Network switch TRIPLE ECDIS An extra ECDIS workstation is added.

  • Page 11: Full Maris System

    MARIS ECDIS900 Installation Manual FULL MARIS SYSTEM The Conning station displays in a graphical manner data that is available from the network. For example, engine, rudder, thruster, etc. This is typically engine data from the VDR and navigational data from the ECDIS.

  • Page 12: Factory Defaults For Maris Ecdis900 Mk15/16

    MARIS ECDIS900 Installation Manual FACTORY DEFAULTS FOR MARIS ECDIS900 MK15/16 All computers leave the factory with these settings. Windows 7 logon: Computer name: Monitoring Workgroup: Maris User name: Maris Password: Empty Network: Name Type IP-Address Subnet mask Gateway/DNS ECDIS network Work 192.168.3.150...

  • Page 13: Iec 61162-450 Compliance

    MARIS ECDIS900 Installation Manual Programs pre-installed: • Sensor Monitor with Hatteland Display Controller configured • ECDIS900 • Application Manager • TeamViewer • CaptureScreenClient Additional software ready for installation can be found in the folder “Maris Apps” on the desktop. IEC 61162-450 COMPLIANCE SYSTEM FUNCTION BLOCK ECDIS900 uses UDP communication and datagrams.
  • Page 14 MARIS ECDIS900 Installation Manual OTHER NETWORK FUNCTION (ONF) Sensor Monitor (SM) is used as ONF. It sends 61162-1 sentences to the network using broadcast messages and internal format. SM doesn’t use multicast, IPs and ports from the standard. It uses ports 8001 and 8005, and broadcast IPs 192.168.3.255 (255.255.255.0).

  • Page 15: Bridge Alert Management Interfaces

    MARIS ECDIS900 Installation Manual DATAGRAM TYPES All UDP multicast datagrams used in the ECDIS900 contain one of the following strings, followed by a null character (all bits set to zero) as the first six bytes of the datagram: • RaUdP" for transmission of binary file e.g., screen dump to VDR.

  • Page 16: Alert Id And Text

    MARIS ECDIS900 Installation Manual Category B alerts Information Type Position system failure Gyro failure STW failure Different geodetic datum. (If the local datum on the GPS is different from the WGS-84 datum, a warning is generated.) Note: The ECDIS900 doesn’t handle Emergency alarms, or category C alerts.

  • Page 17: Serial Interface, Sis4000-Mk2

    MARIS ECDIS900 Installation Manual , SIS4000-M ERIAL INTERFACE HARDWARE NOTES SIS4000-Mk2 is a network-based module. All channels are configured for RS422. Channel 1 to 6 is input only, Baud rates 4800 or 9600, 8n1. Channel 7 and 8 is input/output, Baud rates 1200 to 115200, 8n1.
  • Page 18 MARIS ECDIS900 Installation Manual DUAL ECDIS900 Monitoring SIS4000-Mk2 GPS1 Ch1, port 8010 GPS2 Gyro Ch2, port 8011 Ch3, port 8012 ARPA_X Ch4, port 8013 ARPA_S Wind Ch5, port 8014 Ch6, port 8015 Navtex Ch7, port 8016 Ch8, port 8017 Planning...
  • Page 19 MARIS ECDIS900 Installation Manual TRIPLE ECDIS900 Monitoring SIS4000-Mk2 GPS1 Ch1, port 8010 GPS2 Gyro Ch2, port 8011 Ch3, port 8012 ARPA_X Ch4, port 8013 ARPA_S Wind Ch5, port 8014 Ch6, port 8015 Navtex Ch7, port 8016 Ch8, port 8017 Planning...
  • Page 20 MARIS ECDIS900 Installation Manual Backup SIS4000-Mk2 GPS1 Ch1, port 8030 GPS2 Gyro Ch2, port 8031 Ch3, port 8032 Free Ch4, port 8033 Free Ch5, port 8034 Free Ch6, port 8035 Free Ch7, port 8036 Free Ch8, port 8037 Note the different port numbers! If the defaults are not changed, the sensors will transmit on the same port, leading to inaccurate data.

  • Page 21: Electrical

    MARIS ECDIS900 Installation Manual INSTALLATION, POWER The SIS4000-Mk2 accepts 10-40 VDC. Note the polarity. From AC/DC power supply, it is mandatory that the AC power comes from the same source as for the computer. From emergency or radio batteries, take the power from the same source that feeds the main navigational GPS.

  • Page 22: Ups

    MARIS ECDIS900 Installation Manual Other items can be powered from the same source or from elsewhere. Do NOT power the equipment from the Lighting Switchboard as it may not be connected to the emergency diesel generator. Powering from the Lighting Switchboard may lead the class society or the flag state to reject the installation and deny the final approval.

  • Page 23: Cable Run

    MARIS ECDIS900 Installation Manual ABLE RUN Plan the installation and lay up the cables. Use existing cable ways and transitions as much as possible. New transitions must be made in accordance with good workmanship and they must be properly sealed (for fire protection).

  • Page 24: Connecting Sensors

    MARIS ECDIS900 Installation Manual ONNECTING SENSORS All serial NMEA data is connected to SIS4000-Mk2. This box has 8 input channels, 2 of them can be set for input/output. Communication is network based with the ECDIS900 computer over the 2 LAN adapter.

  • Page 25: Time And Date

    MARIS ECDIS900 Installation Manual IME AND DATE The time and date are important for chart updates. Enter BIOS and change the settings as listed in the tables found in chapter BIOS settings. Restart and set Windows Date/Time to UTC, Time Zone = Coordinated Universal Time.

  • Page 26: Network Basics, Sensors Network

    MARIS ECDIS900 Installation Manual Important notes: Computer names The suggested names must be changed to something descriptive, for example, Monitoring, Planning, Chart Table, Planning 1, MBA or Conning. Always change the name before software installation. Workgroup name. This workgroup name “MARIS” must NEVER be changed.

  • Page 27: Network Bindings

    MARIS ECDIS900 Installation Manual This is reserved for PC Radar 6.0 network module. Disable unused network connections. In general (and regardless of the computer model) all unused connections must be disabled in order not to waste system resources. ETWORK BINDINGS Continue from Network and Sharing Center/Change Adapter Settings.

  • Page 28: Share Folders/Security Options

    MARIS ECDIS900 Installation Manual HARE FOLDERS ECURITY PTIONS Share the folders Charts and ECDIS_UserData for full read/write access: Start Explorer. Right- click the folder and select Share with/Specific people. Click the down arrow, select Everyone, and click Add. Change Permission Level to Read/Write. Click Share.

  • Page 29: Installing Maris Applications

    MARIS ECDIS900 Installation Manual MARIS NSTALLING APPLICATIONS The computers come with preinstalled software. Check the versions and update if needed. An update can be done on top of the existing version and will not overwrite configurations or user data. Sensor Monitor and Application Manager are installed as part of ECDIS900. Other programs must be installed separately.
  • Page 30 Enable AIS Target Table filter with 15 NM range and 150 targets in the ECDIS computer. DISPLAY CONTROLLER MARIS ECDIS900 MK15/16 Verify correct Display Controller is installed. Select port COM2 for HTC01 computer. Select port COM1 for MK5 computer. When using the monitor, the Y-cable is used for connection between computer and monitor/alarm panel.

  • Page 31: Ship Specific Settings

    MARIS ECDIS900 Installation Manual AIS input: The AIS transponder sends a lot of information to the ECDIS900, especially in busy areas such as Singapore or Rotterdam. Therefore, it is important to connect the AIS to only one PC to avoid overloading the network.

  • Page 32: Navtex

    MARIS ECDIS900 Installation Manual AVTEX Connect the Navtex receiver data output (not printer output) to SIS4000-Mk2. It is common practice to connect to the monitoring computer, but very often it is easier to connect to the planning computer at the chart table.
  • Page 33 MARIS ECDIS900 Installation Manual 1. Open the Inbox program. Click “Tools/Options/Position Settings”. Select “Accept the Position from Sensor Monitor”. Click “Ok”. 2. Click “Options/Expiry”. Select “Enable Auto Check” and set it to 3 days. 3. Click “Tools/Options/Mailbase Path”. Click “Browse” and point to C:\Program Files (x86)\MARIS\Navtex\InBox. Click “Ok”.

  • Page 34: Application Manager

    MARIS ECDIS900 Installation Manual PPLICATION ANAGER GENERAL Application Manager is a software application which works as a Shell on MARIS computers and restricts the access to the computer to protect the PC and to run the ECDIS900 in Approval mode.
  • Page 35 MARIS ECDIS900 Installation Manual Select Service mode Click the button with a yellow key and then click the button with a red shield Enter password and restart. The computer restarts in maintenance mode and Application Manager is not running. Setting up Auto Start Programs Press the button .
  • Page 36 MARIS ECDIS900 Installation Manual Application Manager main window in Application Manager main window shown in Operational mode showing the programs Service (non-approved) mode. you have allowed to run. Note: Your configuration will differ, depending of what programs are installed on the computer.

  • Page 37: Dead Man Alarm

    MARIS ECDIS900 Installation Manual AN ALARM The Dead Man Alarm function is designed to monitor bridge activity and alert the master or other qualified navigators if the bridge becomes unattended. If the mouse or keyboard has not been used for a fixed period (By default 10 min), the module sends an alarm message (pulse) to the BNWAS system connected by PLC to the PC.

  • Page 38: Charts Installation

    MARIS ECDIS900 Installation Manual Boot with the CD to create a USB Drive bootable Backup or Restore: Boot with media (CD or USB): Select Start Redo Backup. Select the option Backup or Restore. HARTS INSTALLATION ENC and AVCS First install the permits and then install the charts from the CDs provided.

  • Page 39: Htc01

    MARIS ECDIS900 Installation Manual BIOS SETTINGS HTC01 Select the menu ’Load setup defaults’ and answer yes. Follow the table below and change settings as indicated. Menu Submenu New setting Standard CMOS features Date Set UTC date Time Set UTC time...

  • Page 40: Ecdis Mk15

    MARIS ECDIS900 Installation Manual ECHANICAL DRAWINGS ECDIS MK15 Page 40...

  • Page 41: Dimensional Drawings For 19

    MARIS ECDIS900 Installation Manual DIMENSIONAL DRAWINGS FOR 19’’ TERMINAL LAYOUT FOR 19’’ Page 41...

  • Page 42: Dimensional Drawings For 24

    MARIS ECDIS900 Installation Manual DIMENSIONAL DRAWINGS FOR 24’’ TERMINAL LAYOUT FOR 24’’ Page 42...

  • Page 43: Wiring Details For Mk15

    MARIS ECDIS900 Installation Manual WIRING DETAILS FOR MK15 MK15 ATTELAND ANEL OMPUTER Page 43...

  • Page 44: Hatteland Monitor Hd26T21

    MARIS ECDIS900 Installation Manual HD26T21 ATTELAND MONITOR ECDIS900 PC MK5 Page 44...

  • Page 45: Installation Kits

    MARIS ECDIS900 Installation Manual NSTALLATION KITS ECDIS900 installation kit Description Part no. CS68-19” or CS68-24” ECDIS900 unit Power cables (240 V AC and 115 V AC) Terminal block (for 24 V DC) Terminal blocks (for Serial Interface) Ferrite clamp (for keyboard)
  • Page 46 MARIS ECDIS900 Installation Manual E-Token (for unlocking charts) Keyboard 000-11763-001 Trackball/Mouse 000-11765-001 Panel mounting kit (for CS68-19”) Panel mounting kit (for CS68-24”) OPTIONAL EQUIPMENT Mounting brackets (for CS68-19’’) 000-11804-001 Mounting brackets (for CS68-24”) 000-11805-001 USB Extension cable (1 m) 000-11802-001...

  • Page 47: Sis4000-Mk2 Installation And Configuration

    MARIS ECDIS900 Installation Manual SIS4000-M INSTALLATION AND CONFIGURATION PREPARATIONS Install the box, connect the sensors and power up. At least one sensor must be active (yellow LED above connection is blinking). If there is no activity, the box is in sleep mode and cannot be programmed from Sensor Monitor.
  • Page 48 MARIS ECDIS900 Installation Manual PROGRAMMING SENSOR MONITOR Create a new sensor. Click Norm Type and select CN8E Router. Click Sensor ID and rename it to SIS4000. Click Parameters and set up as shown. Note: Read From/Write To is set to Send & Receive.
  • Page 49 MARIS ECDIS900 Installation Manual 8012 8022 8032 8013 8023 8033 8014 8024 8034 8015 8025 8035 8016 8026 8036 8017 8027 8037 Example showing two sensors enabled. Channel 8 output is also enabled. The baud rate can be changed in menu Serial Port Settings.
  • Page 50 MARIS ECDIS900 Installation Manual CREATING NMEA SENSOR IN SENSOR MONITOR Create a new sensor. Click Media Type and select Network. Norm Type defaults to NMEA 0183 Sensor. Click Sensor ID and give the sensor a descriptive name. Click Parameters and enter the corresponding port number in SIS4000 for both PortToRead and PortToWrite.
  • Page 51 MARIS ECDIS900 Installation Manual CREATING AIS SENSOR IN SENSOR MONITOR As above but go to Media Type and select AIS Transponder. The AIS can be remotely controlled from the ECDIS900, where the navigators have a big screen and a decent keyboard and mouse.
  • Page 52 MARIS ECDIS900 Installation Manual CREATING SENSOR WITH OUTPUT The AIS sensor from above is used as an example. 1. Enable channel 8 in SIS4000. Change the channel ID name to AIS and the port number to 8017. 2. Select menu Channels Settings and change the NMEA-8 name to AIS. The names must be identical, and they are case sensitive.

  • Page 53: C-Map Chart Installation

    MARIS ECDIS900 Installation Manual AP CHART INSTALLATION C-Map charts are copy protected by dongles. 3 options are available: 1. eToken Pro Dongle (Legacy, old device). 2. eToken Pro 72K Java dongle (Java, new device). 3. No Hardware Protection (Software based dongle).
  • Page 54 MARIS ECDIS900 Installation Manual INSTALLING ETOKEN LEGACY Check the current version of ECDIS900. If older than 4.5.4.77, use Windows Add/Remove programs and uninstall ECDIS900, C-Map Professional SDK Runtime and eToken PKI Client. Note that C-Map services must be stopped before they can be uninstalled. Restart the computer.
  • Page 55 MARIS ECDIS900 Installation Manual Note that C-Map services must be stopped before they can be uninstalled. Restart the computer. Install ECDIS900 and select eToken Pro Dongle (Java) as shown here: Continue installation by following instructions on screen. After the installation has finished, check Registry for these keys:...

  • Page 56: More About Ups

    MARIS ECDIS900 Installation Manual INSTALLING SOFTWARE DONGLE Check the current version of ECDIS900. If older than 4.5.4.77, use Windows Add/Remove programs and uninstall ECDIS900, C-Map Professional SDK Runtime and eToken PKI Client. Note that C-Map services must be stopped before they can be uninstalled. Restart the computer.
  • Page 57 MARIS ECDIS900 Installation Manual Typically, there are no supervisory circuits for battery condition. If the power line is stable, as in your office, this type can be a candidate. When running on a stable power line, the power goes straight through the box. It is exactly like powering your computer from the wall outlet.
  • Page 58 MARIS ECDIS900 Installation Manual Figure 2: Block diagram of an always-on type UPS. Two versions of the always-on type are available from MARIS, DnV approved. Part number 10167, UPS, Eaton EX 700 Tower, 110VAC-240VAC. Part number 11394, UPS, Eaton EX 700 Tower, 100VAC (Japan).

  • Page 59: Ecdis Checklist

    MARIS ECDIS900 Installation Manual ECDIS CHECKLIST Item Text Comment Computer Type Serial no. MARIS ID, Sentinel dongle no. C-Map dongle no. Monitor if split installation Type Serial no. Network Computer name Workgroup name MARIS IP address, ECDIS network 192.168. DHCP IP address, Sensor network 192.168.004.200...
  • Page 60 MARIS ECDIS900 Installation Manual Display Ctl., audible alarm and dimmer tested Sensor COM3 or channel1 Sensor COM4 or channel2 Sensor COM5 or channel3 Sensor COM6 or channel4 Sensor COM7 or channel5 Sensor COM8 or channel6 Sensor COM9 or channel7 Sensor COM10 or channel8...
  • Page 61 MARIS ECDIS900 Installation Manual Item Text Comment ECDIS Version no. Mode Ship Properties corrected Safety depth and route corrected ECDIS settings locked Radar Overlay Version no. v.4 is Pci, v6 is LAN Type of radar connected Trigger, Video, HM, AZI adj.
  • Page 62 MARIS ECDIS900 Installation Manual Application Manager Version no. Programs in Auto / Other defined System locked in Approved mode Finalizing Ghost disk burned Charts installed Page 62...
