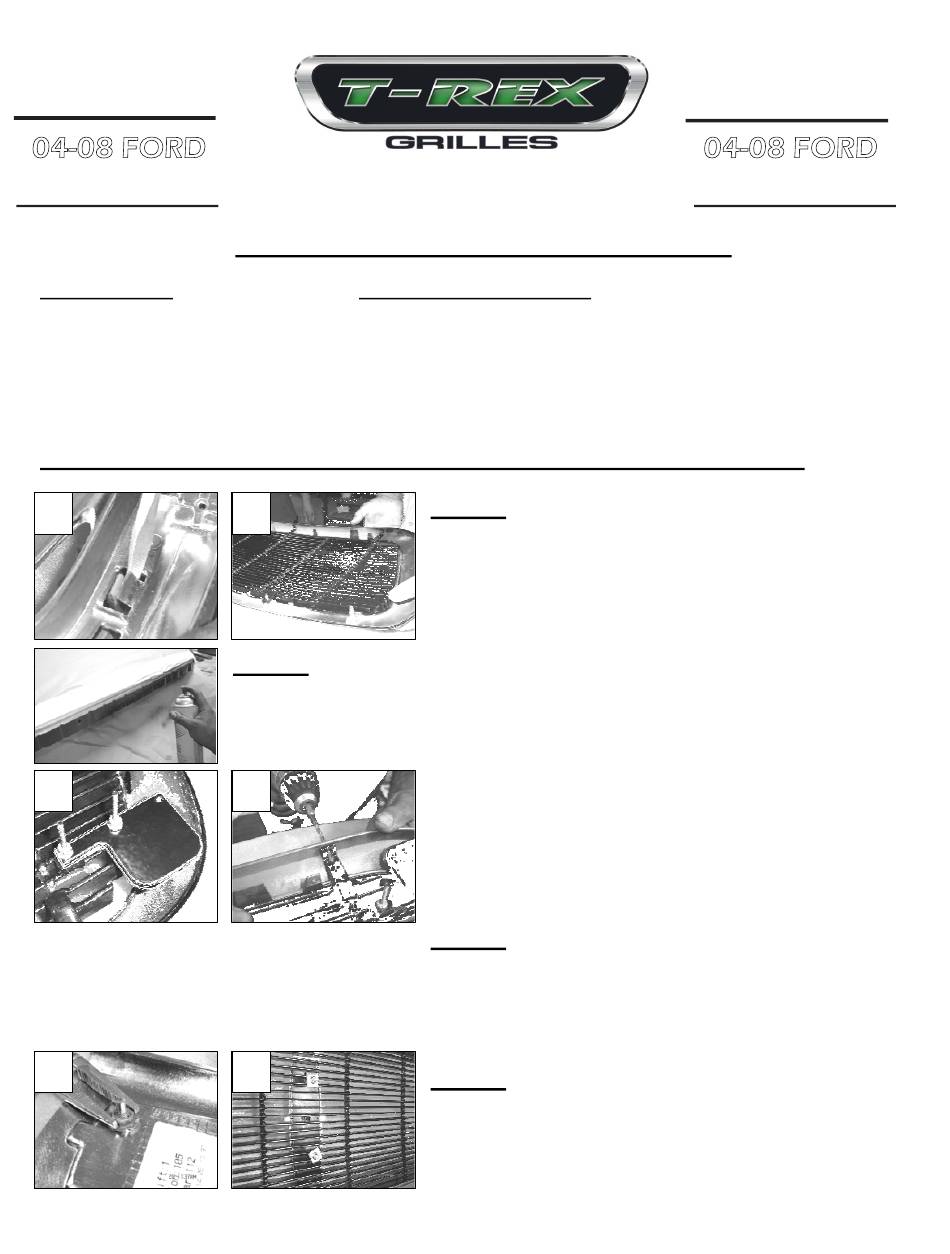

T-Rex 21556 Manual

21556
21556B
04-08 FORD
F-150 ALL
Tools Required:
Needle Nose Pliers
Phillip & Flat Screw Driver
Drill & 1/8" Drill Bit
Socket Set
Torx Driver
Black Spray Paint
Read and understand instructions before attempting installation
1
3
Fasten the brackets in each corner as shown (3). Use the machine screws and Nylon lock nuts. Note the
eight brackets (four along the top and four along the bottom) welded to the rear of the billet insert. Center
the billet into the outer shell (2). Drill a 1/8" hole aligned with the lower mounting tabs (4). Fasten using #8
screws and flat nuts.
5
2004-2008 Ford F-150 & 05-07 Lincoln LT
Hardware / Parts Included:
1 Main Billet Insert (20 Bars)
4 #8 x ¾ Phillip Screws
4 #8 Flat Nuts
6 6-32 x ¾" Machine Screws
6 6-32 Nylon Lock Nuts
2
Step 2
Mask a line across the front of the hood just above the grille mounting holes. Apply
a coat of black paint to hide the paint that will be visible behind the billet grille. If
the vehicle is a dark color skip to Step 3.
4
6
Step 1
Remove the grille shell from the vehicle. Place it face down
on a workbench. Now remove the screws holding the metal
brackets. Separate the factory plastic grille insert from the
outer chrome or painted shell (1). Use a flat head screw
driver or pliers to carefully unfasten the molded clips.
Step 3
Step 4
If the vehicle is a Lincoln LT, remove the emblem and
attach it to the billet grille (5 & 6). Remove the black plastic
21556
21556B
04-08 FORD
F-150 ALL
6 #6 Flat Washers
2 "L" Plate Brackets
