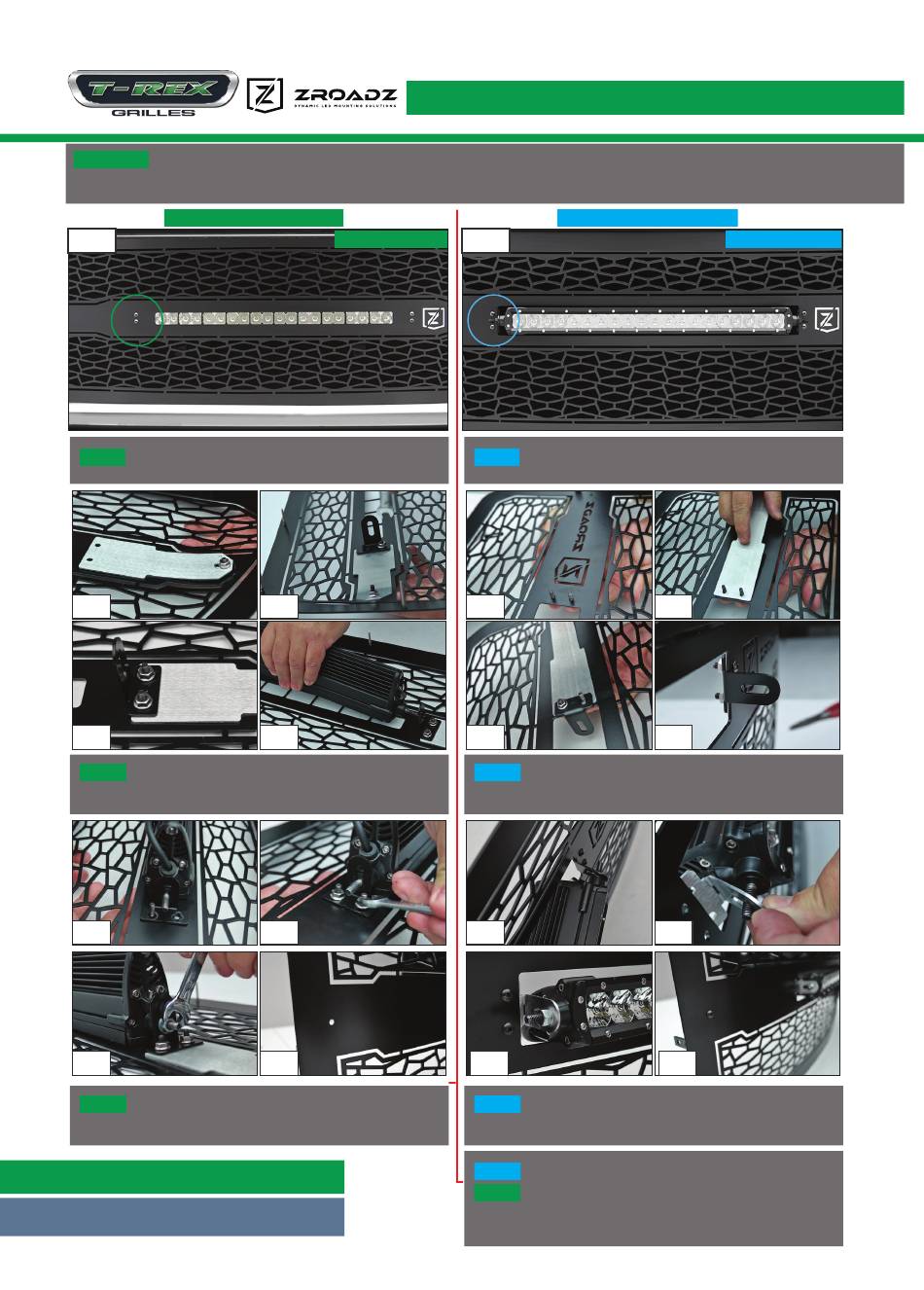

T-Rex ZROADZ Series Installation Manual

START HERE
The ZROADZ Series Grilles comes into 2 different configurations. One style features the LED Light Bar mounting hidden on the backside, while
the other style has exposed mounting provisions on the face side of the grille. Please note this and identify your ZROADZ Grille Series configuration and follow the
instruction version that corresponds with your grille.
GRILLE CONFIGURATION STYLE 1
FIG 1
Lay out your parts. From the backside of the grille, put
STEP 1
into place the ZROADZ Logo Backing Plate.
FIG 1
FIG 3
Put into place one of the Bracket Tabs and seucre with
STEP 2
provided Hardware as seen in Fig. # 2-4 and then from the
backside of grille position LED Light Bar.
FIG 5
FIG 7
With LED Light placement set, put into position the
STEP 3
remaining bracket and the finally tighten LED and all
Mounting Brackets into their final secured position.
GRILLE Assembly - Complete
Page 1
ZROADZ Grille series - LED Installation Guide
HIDDEN LED LIGHT
FIG 2
FIG 4
FIG 6
FIG 8
GRILLE CONFIGURATION STYLE 2
FIG 2
Lay out your parts. From the backside of the grille, put
STEP 1
into place the ZROADZ Logo Backing Plate.
FIG 1
FIG 3
Put into place one of the Bracket Tabs and seucre with
STEP 2
provided Hardware as seen in Fig. # 1-4.
FIG 5
FIG 7
From the face side of grille slip the LED Light bar into
STEP 3
place. On the opposite side, position the remaining
bracket and finally tighten LED and Brackets into position.
There is a final step for both styles of ZROADZ Grilles. See
STEP 4
both of the Figure #8 Images and note that there is an
STEP 4
exposed hole. Use the Provided Hardware Button Head
Screw and fill the hole and tighted down with Nut. This
will create symetrical look from side to side.
EXPOSED LED LIGHT
FIG 2
FIG 4
FIG 6
FIG 8
