Kemimoto B1309-00102SL Installation Tips

Installation Tips
SKU
BEFORE YOU BEGIN
1. Read these instructions and check to be sure all parts and tools are accounted for.
2. Please retain these installation instructions for future reference and parts ordering information
IMPORTANT
1. Please read the installation instructions carefully before you start.
2. If the vehicle is clean and free of other debris, it will be easy to install.
3. For your safety and to ensure a satisfactory installation, please complete all the installation steps in the order shown below.

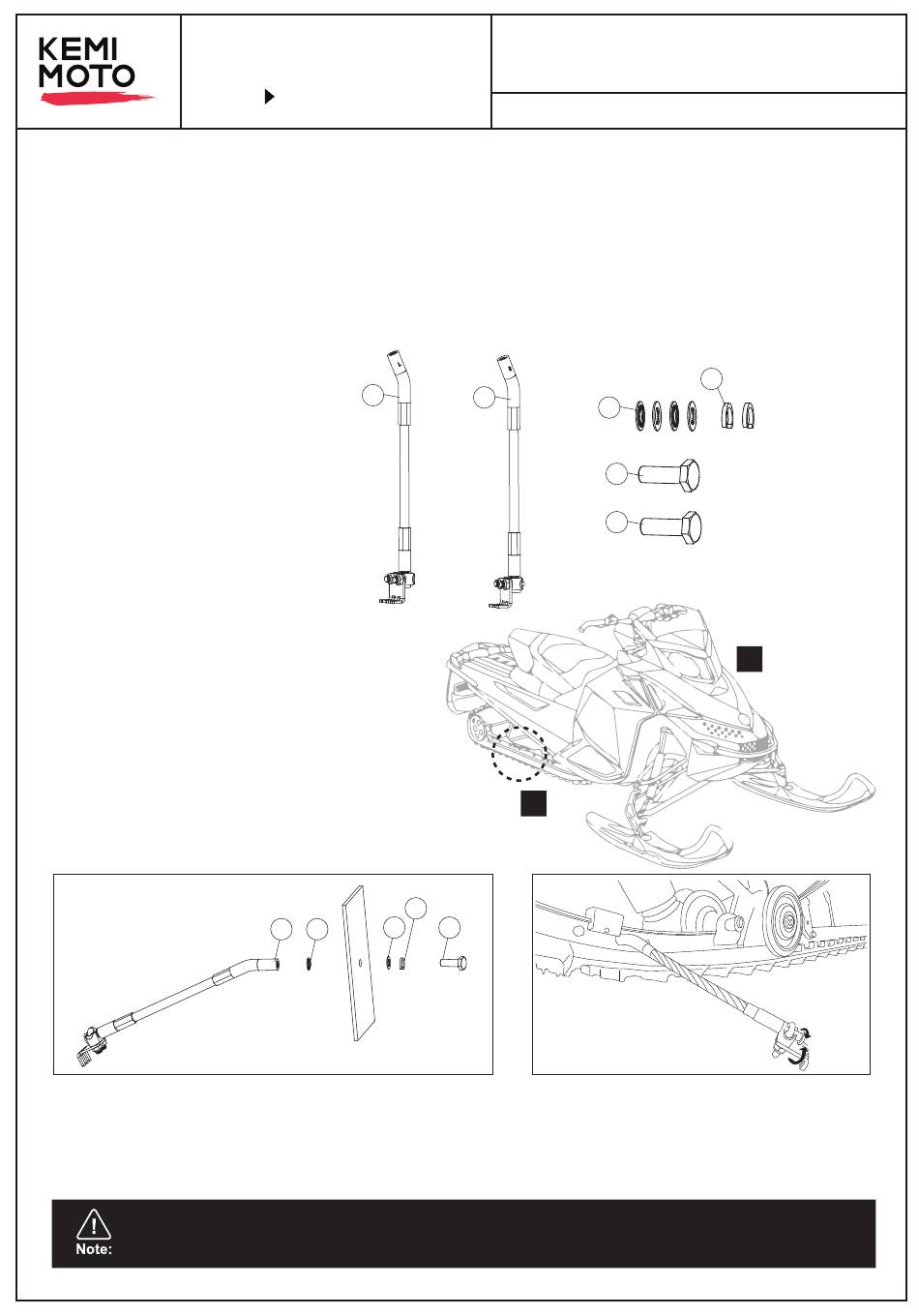

PRODUCT INFORMATION:
[1] Ice Scratcher - L x1
[2] Ice Scratcher - R x1
[3] Tooth Gasket x4
[4] Spring Washer x2
[5] M10*L35 Screw - L x1
[6] M10*L35 Screw - R x1
INSTALLATION TIPS:
STEP 1:
Drill or locate a 2/5 in (10 mm) hole on 2 to 3 in up from
inner surface of snowmobile track. Make sure the craw of
the ice scratcher can reach the floor.
STEP 2:
Remove the screw [5/6] at the end of the ice scratcher [1/2]. Install
the ice scratcher [1/2] to the snowmobile track with two tooth
gaskets [3], one spring washer [4] and screw [5/6] as shown.
- There is L or R sign on ice scratcher.
- Distinguish Ice Scratcher - L [1] and Ice Scratcher - R [2] before installation, or there is a risk of losing the ice
scratchers while riding.
B1309-00102SL
1
4
3 5/6
1/2 3
1 of 1
Complete journey of dreams
Designed by Kemimoto Group
2
3
5
6
R
STEP 3:
Loosen two screws on craw. The craw can be rotated
360°. Tighten the screws after finishing adjustment.
Repeat steps 1-2 for other side installation.
Web: www. kemimoto. com
4
L
360°
B1309-00102SL
