Kemimoto B1406-03901BK Product Manual

BEFORE YOU BEGIN
1. Read these instructions and check to be sure all parts and
tools are accounted for.
2. Please retain these installation instructions for future
reference and parts ordering information.
PRODUCT INFORMATION
Telescopic Rod-L
1
Telescopic Rod-R
2
Connecting Pipe
3
M6xL35 Screw
4
M6 Lock Nut
5
M6 Spring Washer
6
M4xL8 Screw
7
Plastic Fastener
8
M6xL40 Thumb Screw
9
Webbing
10
Buckle Strap
11

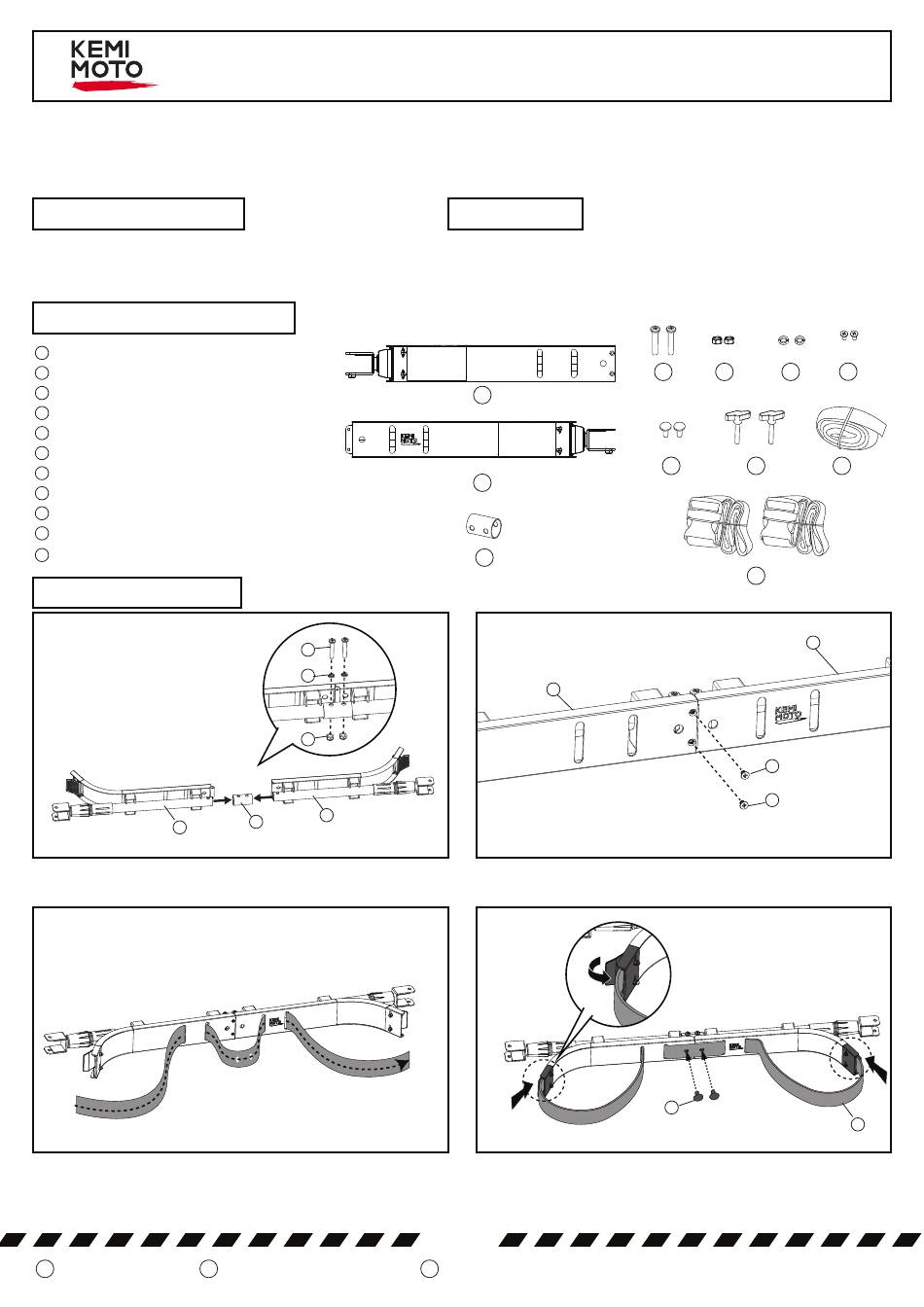

INSTALLATION TIPS
2
STEP 1 Assemble rod-L [1], rod-R [2] and connecting pipe [3] by
using accessories [4][5][6].
STEP 3 Pass webbing [10] through slots on assembled rod as
shown.
K www.kemimoto.com K
PRODUCT MANUAL
SKU: B1406-03901BK
x1
x1
x1
x2
x2
x2
x2
x2
x2
x1
x2
4
6
5
1
3
Designed by Kemimoto Group
Complete journey of dreams
IMPORTANT
1. Please read the installation instructions carefully before you start.
2. If the vehicle is clean and free of other debris, it will be easy to install.
3. For your safety and to ensure a satisfactory installation, please
complete all the installation steps in the order shown below.
1
2
3
1
STEP 2 Lock rod-L [1] and rod-R [2] with two M4xL8 screws [7].
Lock
STEP 4 Align two holes of webbing [10] with the holes on the
assembled rod. Press two fasteners [8] into the holes to
secure the webbing [10]. Insert two ends of the webbing
[10] into the buckle and lock.
1 of 2
K Kemimoto All Rights Reserved,Infringement must be prosecuted.
4 5 6
8 9
11
2
7
7
8
7
10
10
