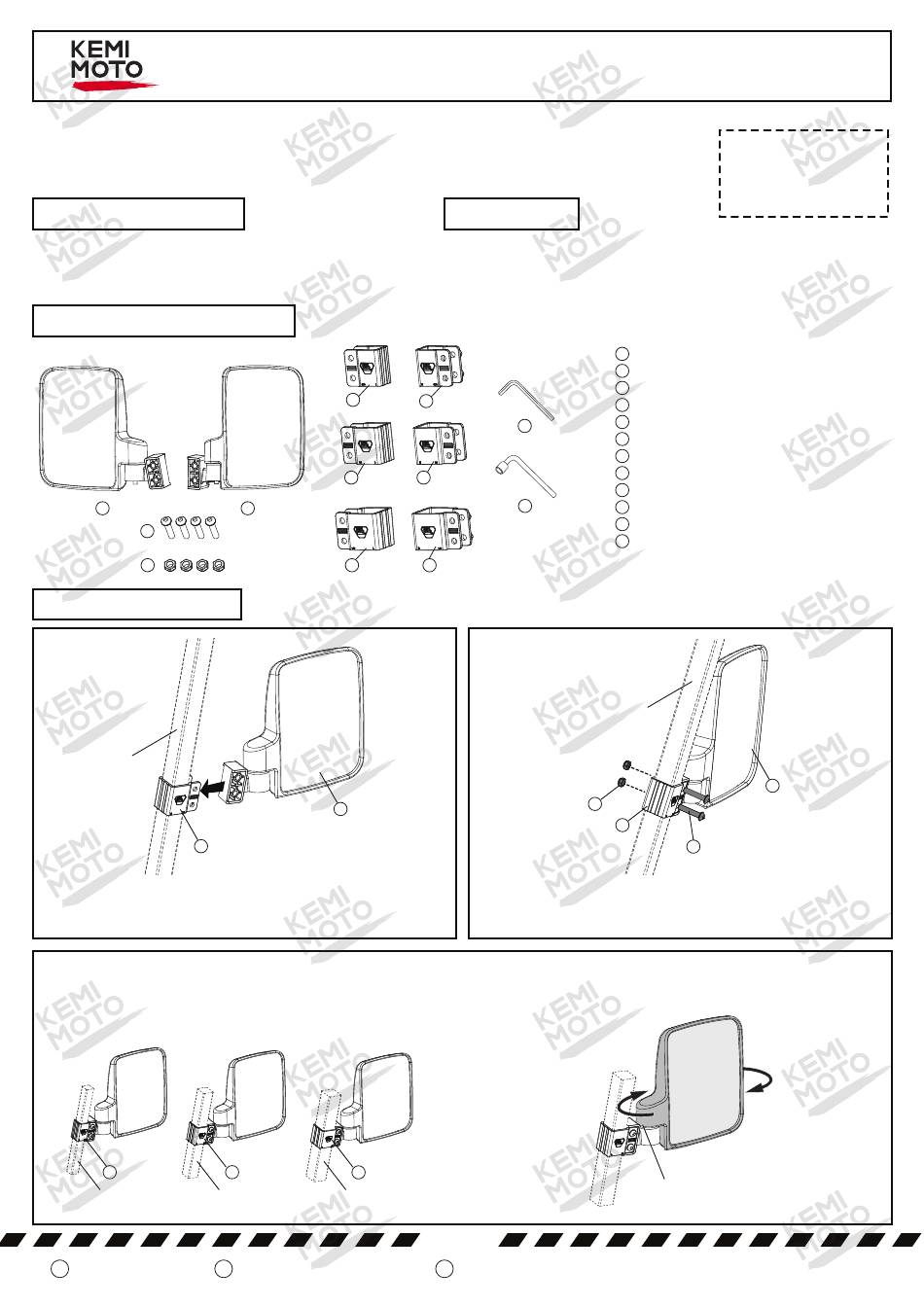

Kemimoto B0106-16101BK Product Manual

BEFORE YOU BEGIN
1. Please read the instructions carefully and verify that each
item is in the list.
2. Please retain these installation instructions for further
reference and parts ordering information.
PRODUCT INFORMATION
1
3
4
INSTALLATION TIPS
STEP 1
0.75inch
6
According to the size of vehicle square tube, install the
pipe clamp.
FUNCTION
01:
It fits 0.75inch，1.0inch or 1.25inch diameter square tube.
Passenger Side
6
0.75inch
K www.kemimoto.com
PRODUCT MANUAL
SKU: B0106-16101BK
5
7
2
9
2
Passenger Side
8 10
1.0inch 1.25inch
K Designed by Kemimoto Group
Complete journey of dreams
IMPORTANT
1. Please read the installation instructions carefully before you start.
2. If the vehicle is clean and free of other debris, it will be easy to install.
3. For your safety and to ensure a satisfactory installation, please
complete all the installation steps in the order shown below.
6
11
8
12
10
STEP 2
0.75inch
4
Install left mirror [2] to pipe clamp [6] with two M6 screws [3]
and M6 nuts [4].
Repeat steps to install the other side mirror.
02:
The mirror can be swung front and back 180°.
1 of 1
K Kemimoto All Rights Reserved, Infringement must be prosecuted.
Estimated installation time:
15 minutes
Mirror-L
1
Mirror-R
2
M6xL30 Screw
3
M6 Nut
4
0.75 inch Pipe Clamp-L
5
0.75 inch Pipe Clamp-R
6
1.0 inch Pipe Clamp-L
7
1.0 inch Pipe Clamp-R
8
1.25 inch Pipe Clamp-L
9
1.25 inch Pipe Clamp-R
10
Hexagonal Wrench 4mm
11
Socket Wrench 10mm
12
2
6
3
Passenger Side
180°
x1
x1
x4
x4
x1
x1
x1
x1
x1
x1
x1
x1
