Kemimoto B1709-00401BK Product Manual

BEFORE YOU BEGIN
1. Please read the instructions carefully and verify that each item is in the list.
2. Please retain these installation instructions for further reference and parts ordering information.
IMPORTANT
1. Please read the installation instructions carefully before you start.
2. If the vehicle is clean and free of other debris, it will be easy to install.
3. For your safety and to ensure a satisfactory installation, please complete all the installation steps in the order shown below.

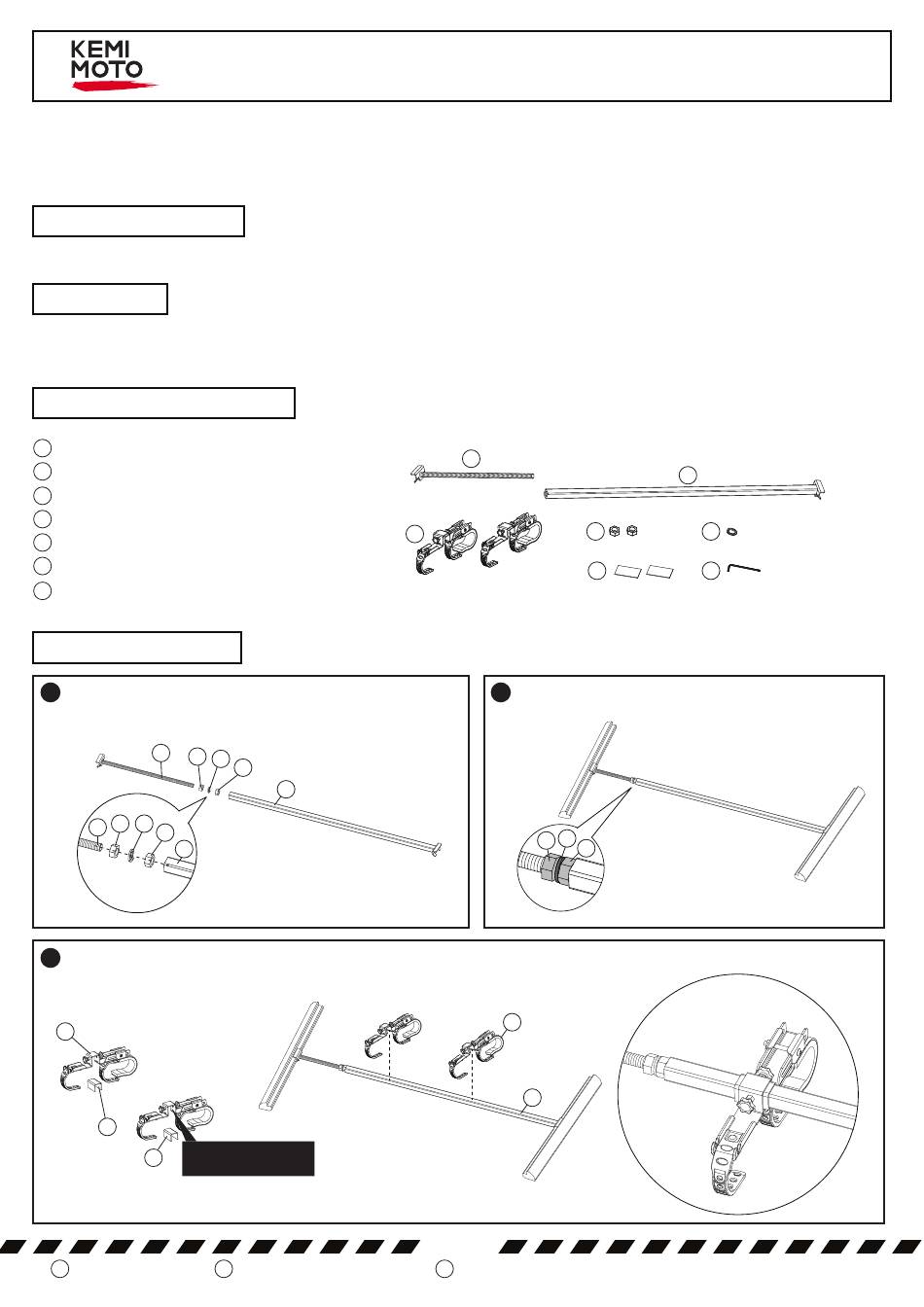

PRODUCT INFORMATION
1 Threaded Rod
2 Square Tube
Tool Support
3
M16x2 Nut
4
M16 Spring Washer
5
Rubber Pad
6
Allen Wrench
7
INSTALLATION TIPS
1
Screw a nut [4] , spring washer [5] and the other nut [4] ( in the
correct order ) into a certain position in threaded rod [1] , insert
threaded rod [1] into square tube [2].
1
4
4 5
1
4
2
3
Fix the rubber pads [6] to the tool brackets [3] , and then place the tool brackets [3] to the square pipe [2].
3
6
Attach to the inside of
6
the tool support [3].
K www.kemimoto.com
PRODUCT MANUAL
SKU: B1709-00401BK
x1
x1
x2
x2
x1
x2
x1
5
4
2
K Designed by Kemimoto Group
Complete journey of dreams
1
3
2
Install it on the pro-fit cage of the vehicle's roof , tighten
nuts [4] so that the two sides are tightly pushed on the
frame.
5
4
4
3
2
1 of 2
K Kemimoto All Rights Reserved,Infringement must be prosecuted.
2
4 5
6 7
The spring washer [5] is located
in the middle of the two nuts,
which plays the role of fastening
and preventing loosening.
