INSTALLATION GUIDE
BEX ALL PRESSURES PULL DOWN SINK MIXER
BRUSHED NICKEL / MATTE BLACK C-SMC03
SYSTEM REQUIREMENTS
To ensure the optimum performance and customer satisfaction please adhere to the following:
• Flush out all pipe work prior to installation.
• Maximum hot water temperature is 60˚C. If the water temperature exceeds 60˚C an approved tempering valve must be fitted.
• Installation should comply with relevant local authority requirements.
• In accordance with good plumbing practice, filters should be fitted to supply lines to eliminate damage to the ceramic cartridge
from suspended solids.
• AS/NZS 3500.1 states that pressures above 500kPa can cause damage from water hammer, reduce the life of appliances, taps &
fittings, cause excessive noise in the system and recommend that a pressure limiting valve (PLV) be fitted.
MAXIMUM STATIC PRESSURE
Maximum static pressure 1500kPa. If water pressure
exceeds or is likely to exceed
1500kPa, an approved pressure limiting valve must
be fitted.
Failure to comply with the above will void warranties
WHAT IS IN THE PACK
1 x sink mixer
2 x supply hoses
1 x sink fixing kit
1 x mounting triangle
IF YOU HAVE...
MAINS PRESSURE
Install product as supplied.
1. OUTLET:
Remove aerator from mixer and replace with flow
straightener.
2.
INLET:
Fit COLD supply hose end with male female
brass nipple with flow restrictor prefitted in the
orientation shown.
MINIMUM STATIC PRESSURE
Mains Pressure
Unequal Pressure
Equal Low Pressure
1 x aerator (coin slot)
1 x blue key for aerator
1 x flow straightener
UNEQUAL PRESSURE
1 x yellow key for flow straightener
1 x male female brass nipple
with flow restrictor prefitted
EQUAL LOW PRESSURE
Remove aerator from mixer outlet and replace with
flow straightener.

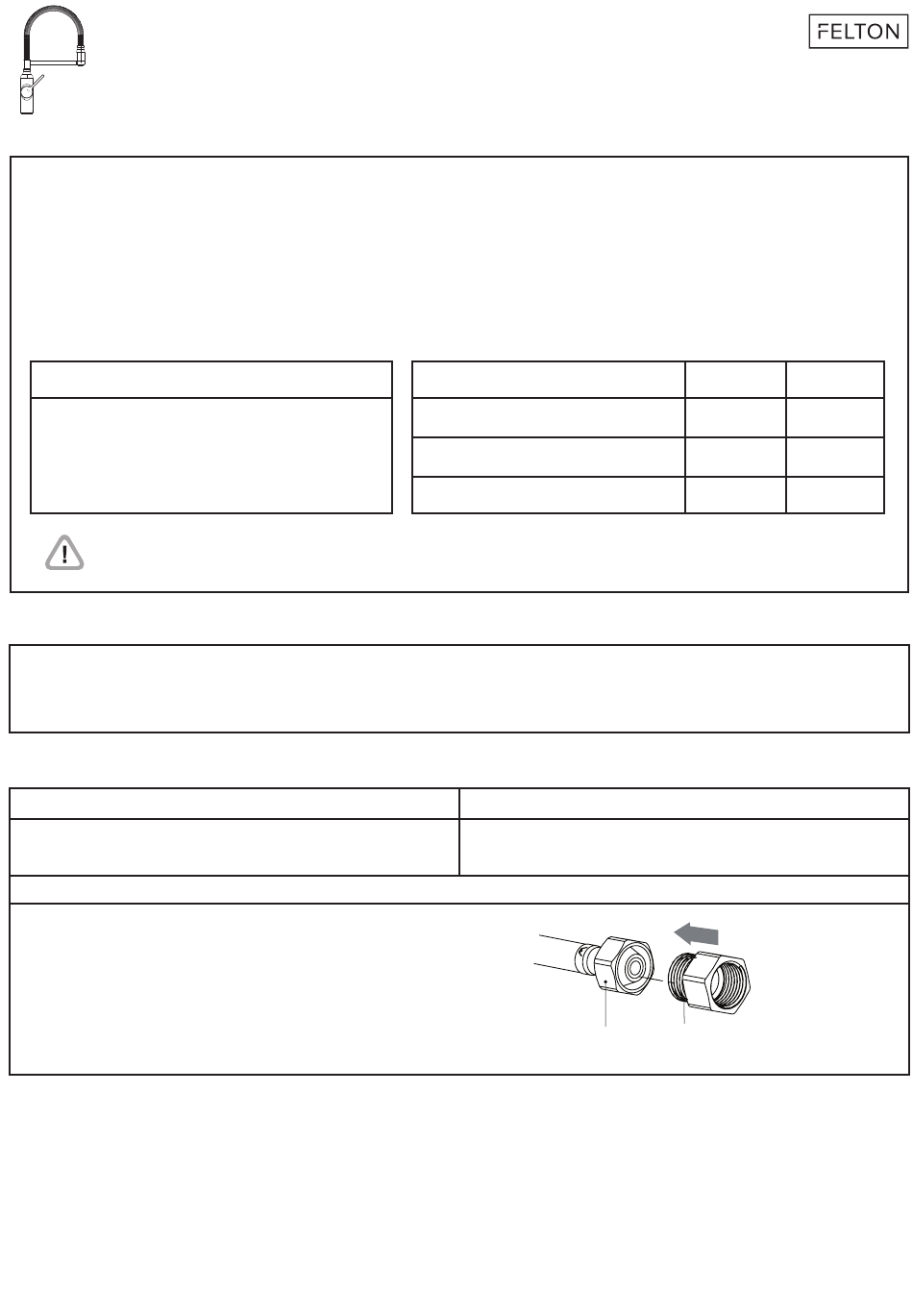

Supply Hose Male Female Brass Nipple
with flow restrictor prefitted
HOT COLD
150kPa 150kPa
36kPa 150kPa
36kPa 36kPa
Direction of flow
via water supply
