INSTALLATION GUIDE

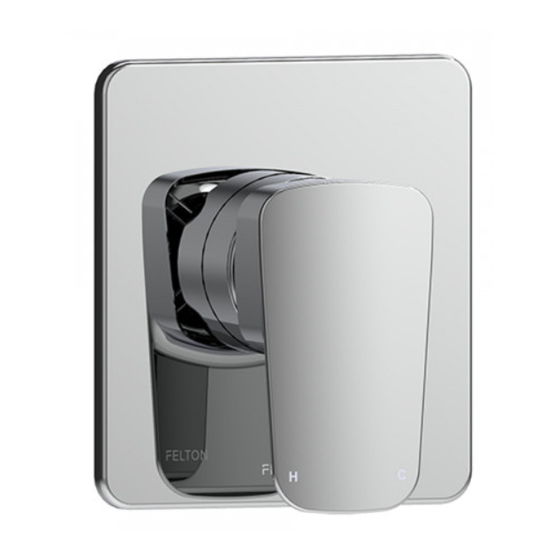

AXISS FUSION PLUS® SHOWER MIXER AXFSPCSMC
SYSTEM REQUIREMENTS
Unequal Pressure - Venturi jet installed
Operating Pressures - refer to the Venturi Selection Table on page 2
Equal High (Mains) & Equal Low Pressures - Venturi jet removed
Operating Pressures
Operating Hot Water Temperatures
Operating Cold Water Temperatures
Do not plug outlet when testing.
This shower mixer can be line tested up 1500kPa (217.6psi)
AS/NZS 3500.1 states that pressures above 500kPa can cause damage from water hammer, reduce the life of
appliances, taps & fittings, cause excessive noise in the system and recommend that a pressure limiting valve (PLV) be fitted.
WHAT IS IN THE PACK
Faceplate + O-Ring
Handle
IMPORTANT:
Factory fitted WITHOUT
Venturi Jet
BEFORE INSTALLATION
Pipework MUST be purged before connecting to the mixer
MIXER ORIENTATION
This mixer is designed to be connected with the hot water
supply on the left only and the cold water supply on the
right only.
If at any point the nut is removed, please ensure that both
black lines marked on the cartridge and cartridge nut are
aligned when the mixer is in full cold position as shown in
figure 1.
Patented New Zealand No. 605175
Mixer Assembly
MINIMUM
Hot
36kPa (5.1psi)
200kPa (29.0psi)
36kPa (5.1psi)
55° C
5° C
2x Venturi Jets for Unequal Pressures
Red
O-ring
TOP VIEW
Round Top
Grub Screw
Handle Cap
OUTLET
HOT
INLET
ONLY
MAXIMUM
Cold
1500kPa (217.6psi)
1500kPa (217.6psi)
60° C
N/A
Black
O-ring
TOP VIEW
Hex Top
8g x 32 Dome Head
Square Drive
Stainless Steel Screws
2.5mm Allen Key
COLD
INLET
ONLY
( FULL COLD POSITION )
Figure 1.
Page 1
