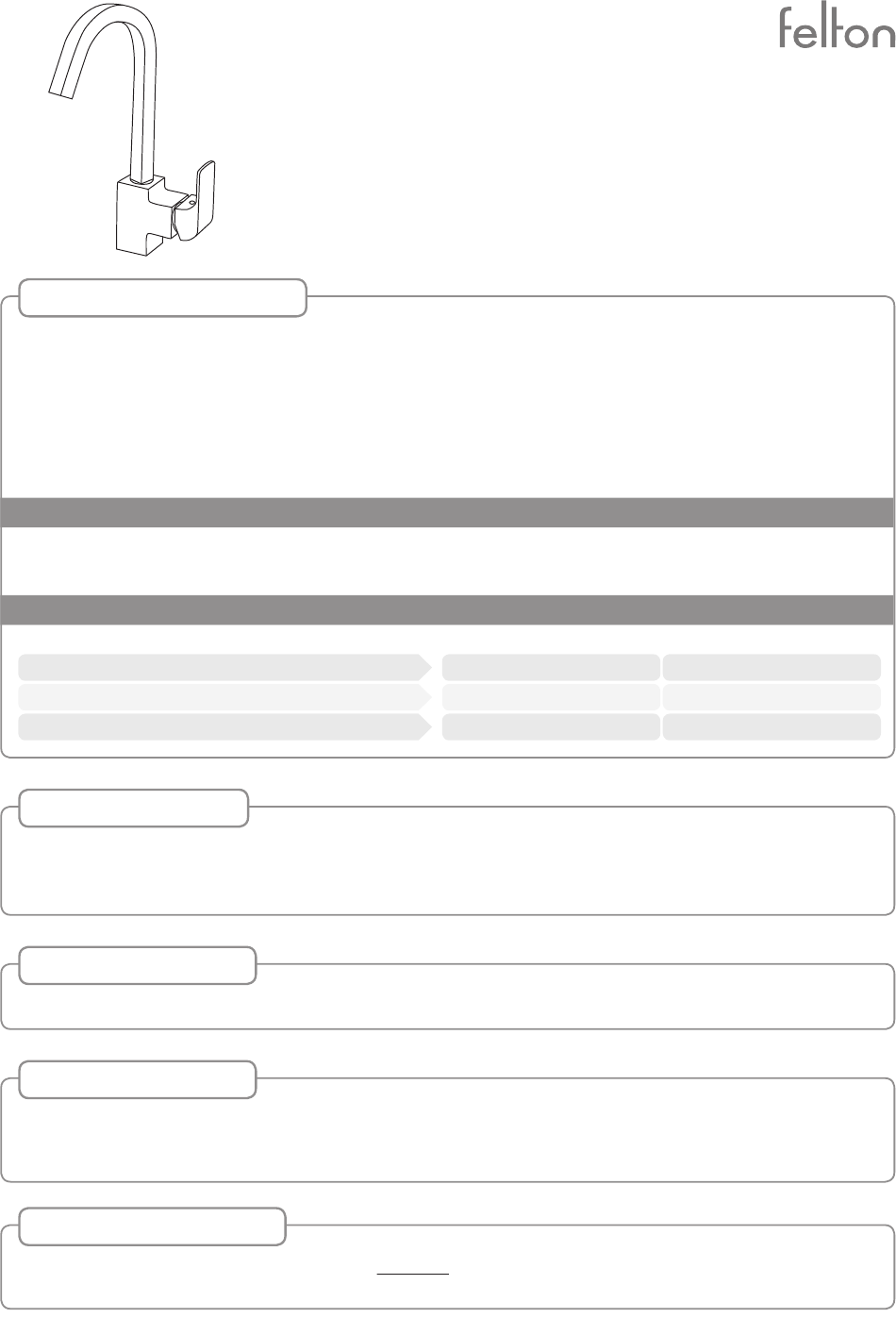

Felton USMC Installation Manual

System Requirements

To ensure the optimum performance and customer satisfaction please adhere to the following:
• Flush out all pipework prior to installation.
• Maximum hot water temperature: 80°C. If the water temperature exceeds 80°C an approved tempering
valve must be fitted.
• Installation should comply with relevant local authority requirements.
• In accordance with good plumbing practice, filters should be fitted to supply lines to eliminate damage
to the ceramic cartridge from suspended solids.
Maximum static pressure 700kPa. If the water pressure exceeds or is likely to exceed 700kPa, an
approved pressure limiting valve must be fitted.
Mains Pressure
Unequal Pressure
Equal Low Pressure

Contents of Pack

1 x sink mixer
1 x hot supply hose
1 x cold supply hose
Mains Pressure
Ensure that the 2 pink plastic regulators supplied are fitted to the brass nipples and fitted to both supply hoses.
Unequal Pressure
Ensure that the brown or yellow plastic regulator supplied is fitted to the brass nipple and fitted to the cold
supply hose. Remove the "aerator" fitting from the mixer outlet and replace it with the flow straightener
provided.
Equal Low Pressure
Ensure that any brown plastic regulators are removed from the brass nipples. Remove the "aerator" fitting
from the mixer outlet and replace it with the flow straightener provided.
INSTALLATION GUIDE

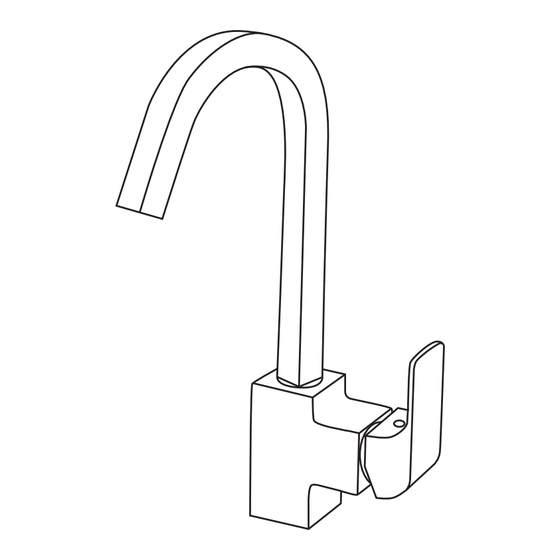

Urban Sink Mixer
(USMC)
MAXIMUM STATIC PRESSURE
MINIMUM STATIC PRESSURE
2 x brass nipples
1 x flow straightener
1 x sink fixings
HOT
150kPa
36kPa
36kPa
1 x brown or yellow regulator
2 x pink regulators
COLD
150kPa
150kPa
36kPa
