INSTALLATION GUIDE

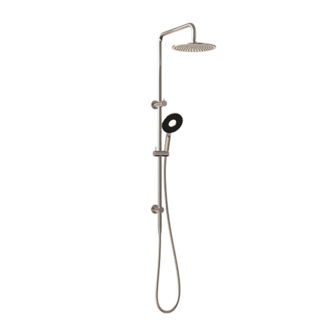

WILLO II RAIN SHOWER COLUMN BRUSHED NICKEL
W2RSCBN
SYSTEM REQUIREMENTS
To ensure the optimum performance and customer satisfaction please adhere to the following:
• Flush out all pipe work prior to installation.
• Maximum hot water temperature is 60˚C. If the water temperature exceeds 60˚C an approved tempering valve
must be fitted.
• Installation should comply with relevant local authority requirements.
• In accordance with good plumbing practice, filters should be fitted to supply lines to eliminate damage to the
ceramic cartridge from suspended solids.
• AS/NZS 3500.1 states that pressures above 500kPa can cause damage from water hammer, reduce the life of
appliances, taps & fittings, cause excessive noise in the system and recommend that a pressure limiting valve
(PLV) be fitted.
MAXIMUM STATIC PRESSURE
Maximum static pressure 500kPa. If water
pressure exceeds or is likely to exceed
500kPa, an approved pressure limiting valve
must be fitted.
Failure to comply with the above will void warranties.

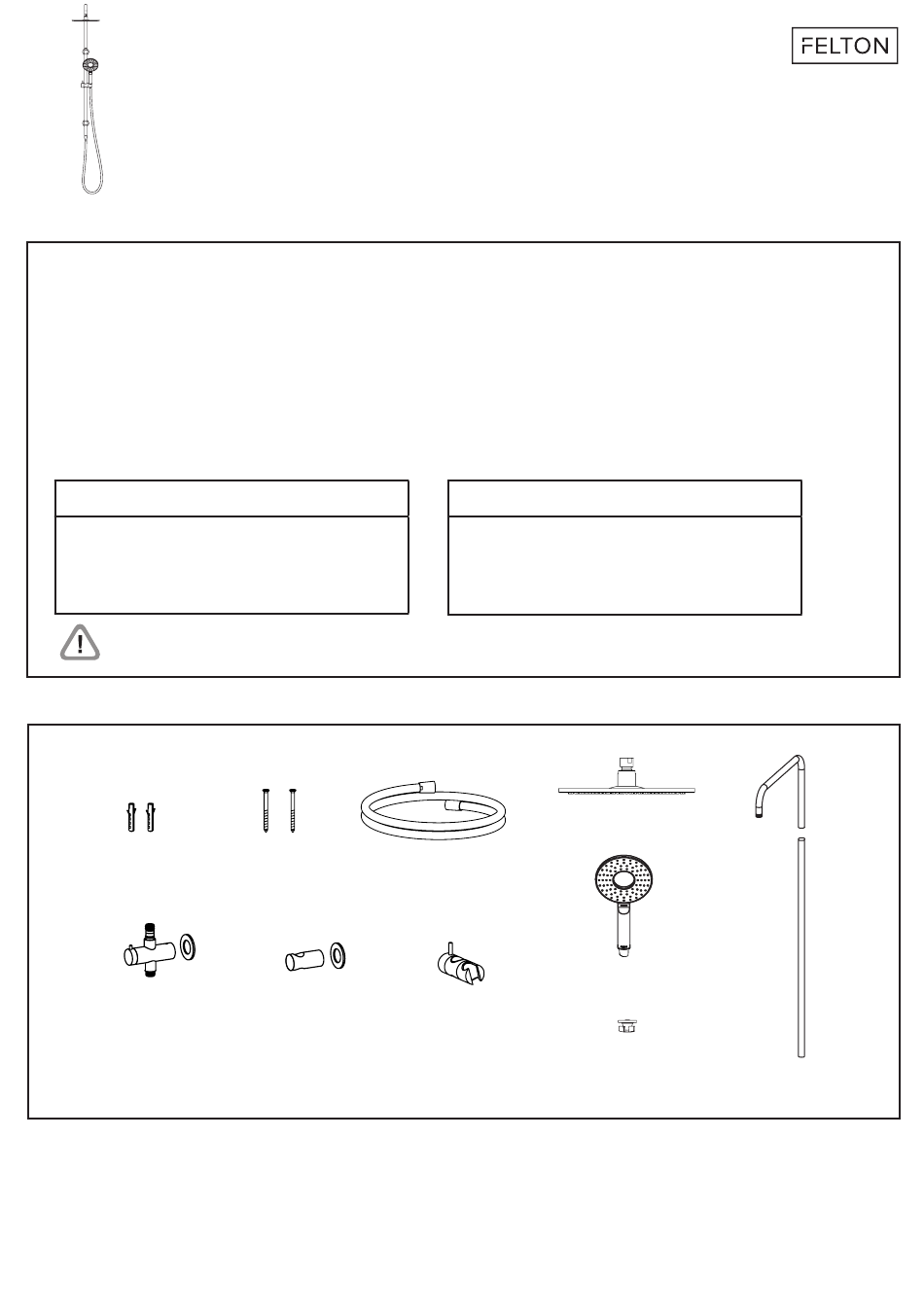

WHAT IS IN THE PACK
2 x Wall Anchors
Top Mounting Bracket +
Chrome Flange
(Diverter Valve)
2 x Screws
1 x Hose
Bottom Mounting Bracket
+ Chrome Flange
MINIMUM STATIC PRESSURE
Minimum static pressure 150kPa. To ensure
optimal performance the static pressure must
be greater or equal to 150kPa.
1 x Rain Head
1 x Single Spray
Handpiece
1 x Slider
2 x Flow Regulators
1x prefitted on handpiece
1x separate for the rain head
1 x Rail & Arm
Advertisement
Table of Contents
Related Manuals for Felton WILLO II W2RSCBN
Summary of Contents for Felton WILLO II W2RSCBN
- Page 1 INSTALLATION GUIDE WILLO II RAIN SHOWER COLUMN BRUSHED NICKEL W2RSCBN SYSTEM REQUIREMENTS To ensure the optimum performance and customer satisfaction please adhere to the following: • Flush out all pipe work prior to installation. • Maximum hot water temperature is 60˚C. If the water temperature exceeds 60˚C an approved tempering valve must be fitted.
- Page 2 HOW TO INSTALL BOTTOM DIVERTER VALVE REMOVE REMOVE Brass easy fit Loosen grub screws from the lower mounting bracket using a 2.5mm allen key and remove the Mark down vertical between 550mm Loosen grub screws on body of easy fit. Mark and use screws to fasten easy fit and 750mm from centre of water outlet.
- Page 3 This warranty is effective for 5 years from the date of purchase for the supply of replacement parts only, not including installation. You must retain proof of purchase of the product (such as an invoice or receipt) and provide this to Felton on request. This warranty is for manufacturing defects only and does not cover any damage to the product due to abuse, negligence or improper installation.
