Lutron Electronics TG-603PH-WH Manual

3-Way Preset Dimmer
English
Incandescent
Three-Way: AY-603P, AY-603PG, AY-603PNL
TG-603P, TG-603PG, TG-603PNL
Rated at: 120 V 60 Hz 600 W
Important Notes
Please read before installing.
1. CAUTION: Use "AY-" or "TG-" models only with permanently-installed
120 V incandescent or halogen fixtures. To avoid overheating and possible
damage to other equipment, do not use to con trol re cep ta cles, fluorescent
lighting fixtures, motor-driven appliances, or transformer-sup plied
appliances.
2. CAUTION: Use "AYLV-" models only with core and coil (magnetic) low-
• Easy-to-follow
voltage transformers. To control solid state (electronic) low-voltage
Instructions.
transformers, use Lutron
• Instrucciones
Fáciles de Seguir.
3. Operating magnetic low-voltage fixtures with all lamps inoperative or
removed may result in current flow in excess of normal levels. To avoid
possible transformer overheating and premature failure, Lutron strongly
recommends the following:
030-1287
• D o not operate magnetic low-voltage fixtures without operative lamps in place.
• R eplace burned-out lamps immediately.
• U se magnetic low-voltage fixtures with thermal protection or fused primary
windings to prevent transformer failure due to excess current.
4. When no "grounding means" exist within the wallbox then the NEC
Article 404.9 allows a dimmer without a grounding connection to be installed
• Easy-to-follow as a replacement, as long as a plastic, noncombustible wallplate is used. For
Instructions.
this type of installation, cap or remove the green ground wire on the dimmer
• Instrucciones
and use an appropriate wallplate such as Fassada
Fáciles de Seguir.
5. Recommended minimum load is 40 W.
6. Protect dimmer from dust and dirt when painting or spackling.
7. Dimmer may feel warm to the touch during normal operation.
030-1287
8. Only one dimmer can be used in a 3-way circuit.
9. For new installations, install a test switch before installing the dimmer.
10. In stall in accordance with all national and local electrical codes.
11. Clean dimmer with a soft damp cloth only. Do not use any chemical cleaners.
12. Do not use with compact fluorescent lamps.
Multigang Installations
When installing more than one control in the same wallbox, it may be necessary to remove all inner side sections
prior to wiring (see below). Using pliers, bend side sections up and down until they break off. Repeat for each side
section to be removed. Removal of dimmer side sections reduces maximum load capacity. Refer to chart below
for maximum dimmer capacity.
Each control has inside
section removed.
Do not remove outer
side sections.
Model Number Rating No Sides Removed
600 W 600 W
600 VA / 450 W 600 VA / 450 W
Technical Assistance
If you have questions concerning the installation or operation of this product, call the Lutron Technical
Support Center. Please provide exact model number when calling.
U.S.A. and Canada (24 hrs/7days)
1.800.523.9466
México Other countries 8am – 8pm ET
+1.888.235.2910 +1.610.282.3800
Limited Warranty
(Valid only in U.S.A., Canada, Puerto Rico, and the Caribbean.)
Lutron will, at its option, repair or replace any unit that is defective in materials or manufacture within one year after purchase. For warranty service, return unit to place
of purchase or mail to Lutron at 7200 Suter Rd., Coopersburg, PA 18036-1299, postage pre-paid.
This warranty is in lieu of all other express warranties, and the implied warranty of merchantability is limited to one year from purchase. This
warranty does not cover the cost of installation, removal or reinstallation, or damage resulting from misuse, abuse, or damage from improper wiring or
installation. This warranty does not cover incidental or consequential damages. LUTRON'S LIABILITY ON ANY CLAIM FOR DAMAGES ARISING OUT OF OR IN
CONNECTION WITH THE MANUFACTURE, SALE, INSTALLATION, DELIVERY, OR USE OF THE UNIT SHALL NEVER EXCEED THE PUR CHASE PRICE OF THE UNIT.
This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Some states do not allow the exclusion or limitation of
incidental or consequential damages, or limitation on how long an implied warranty may last, so the above limitations may not apply to you.
Lutron and Fassada are registered trademarks of Lutron Electronics Co., Inc. NEC is a registered trademark of National Fire Protection Association, Quincy, Massachusetts.
© 2010 Lutron Electronics Co., Inc.
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299, U.S.A.
Made and printed in U.S.A. 5/10 P/N 030-1287 Rev. A
Magnetic Low-Voltage
Three-Way: AYLV-603P
Rated at: 120 V 60 Hz
600 VA / 450 W
electronic low-voltage dimmers.
®
2008,
®
series wallplates by Lutron.
®
One Side Removed Two Sides Removed
500 W 400 W
500 VA / 400 W 400 VA / 300 W
Fax +1.610.282.6311
http://www.lutron.com
Lutron Technical Support Center 1.800.523.9466

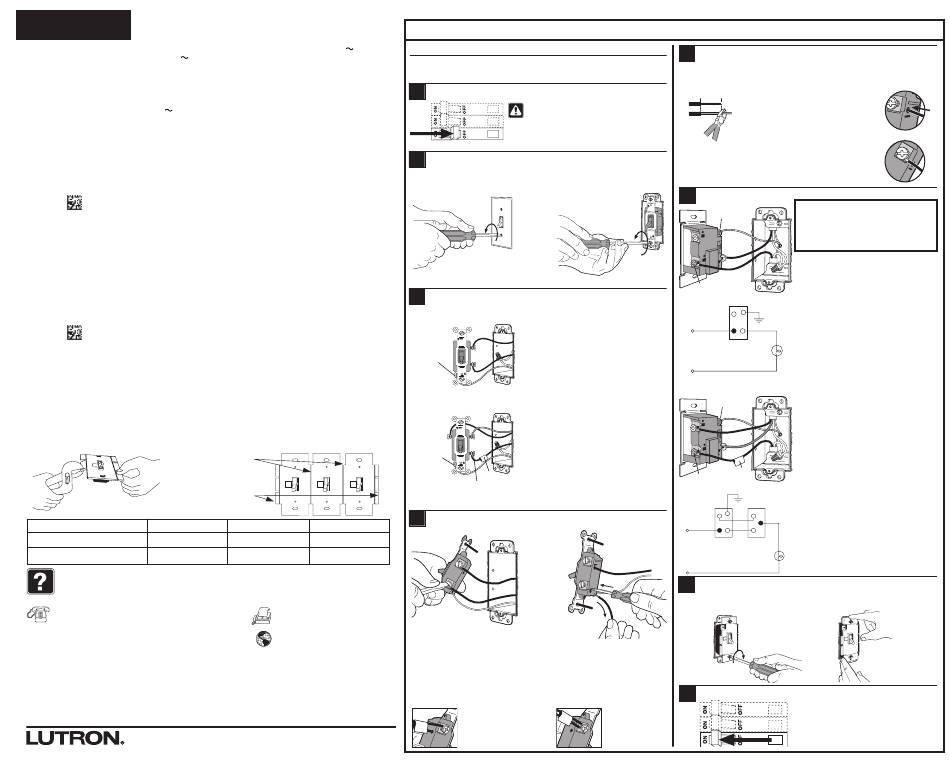

Installation
For installations involving more than one control in a wallbox, refer to Multigang
Installations before beginning.
1
Turn power off at circuit breaker or remove fuse.
WARNING: Shock Hazard. May result
in serious injury or death. Turn off
power at circuit breaker before
installing the unit.
2
Removing Wallplate and Switch
Remove the wallplate and switch mounting screws.
Carefully remove switch from wall (do not remove screws).
Turn screws
to loosen.
3
Identifying Type of Circuit
Single-Pole Circuit:
Insulated wires connected to two screws of the
same color: Replace with a single-pole or 3-way
dimmer. Follow: Single-Pole Wiring when
Ground (bare
completing step 6.
copper or
green wire)
Or
3-Way Circuit:
Insulated wires connected to three screws: One
of these wires is connected to a screw of a
different-color. TAG this wire to identify it when
wiring. Follow: 3-Way Wiring when completing
Ground (bare
copper or step 6.
green wire)
Tag
Different-colored screw
(Common)
4
Disconnecting Switch Wires
Or
Screw Terminals: Push-In Terminal:
Turn screws counterclockwise to loosen. Insert screwdriver and pull wire out.
Important Note: Your wall switch may have two wires attached to the same screw
(see illustrations below for examples). Tape these two wires together before
disconnecting. When wiring, connect wires to dimmer the same way they were
connected to the switch.
One wire in the backwired
hole and one to the screw.
24 hrs / 7 days www.lutron.com
5
Prepare Wires
Trim or strip wallbox wires to the length indicated by the strip gauge on the back
of the dimmer. Use the same procedure to wire your new dimmer as was used
with the old switch.
Push-In Terminals: Insert wires fully.
Note: Backwire holes are for use with
14 AWG (1.5 mm ) solid copper wire only. For
2
aluminum wire, consult an electrician. DO NOT use
stranded or twisted wire.
Or
Screw Terminals: Tighten securely. Screw terminals
are for use with solid copper wire only. For
aluminum wire, consult an electrician. DO NOT use
stranded or twisted wire.
6
Wiring the Dimmer
Ground
(Green screw)
Different-colored
screw
Ground
Live
120 V~
60 Hz Light
Neutral
Ground
(Green screw)
Tag
Different-colored
screw
Ground
Live
Dimmer 3-way
120 V~
Switch
60 Hz
Light
Neutral
7
Mounting Dimmer to Wallbox
Form wires carefully into the wallbox, mount and align dimmer.
Replace the wallplate.
Turn screws clockwise
to start.
8
Turn power ON at circuit breaker (or replace fuse).
One continuous wire to
the screw.
Helpful Hint: If you are replacing a single-pole
switch with a 3-way or single-pole/3-way
dimmer, the screw on the same side as the
different-colored screw is not used. Tighten the
screw securely.
Single-Pole Wiring
• Connect the bare copper or green ground
wire to the green ground screw on the
dimmer (see Important Note 4).
• Connect one of the remaining wires
removed from the switch to the different-
colored screw (or backwire hole) on the
dimmer.
• Connect the remaining wire removed from
the switch to the screw (or backwire hole)
opposite the different-colored screw on
the dimmer.
Or
3-Way Wiring
• Connect the bare copper or green ground
wire to the green ground screw on the
dimmer (see Important Note 4).
• Connect the tagged wire removed from the
switch to the different-colored (COMMON)
screw (or backwire hole) on the dimmer.
If two wires were taped together, connect
one wire to the screw and insert the other
wire into the backwire hole near the screw.
• Connect one of the remaining wires
removed from the switch to either of the
remaining screws (or backwire holes) on
the dimmer.
• Connect the last wire removed from
the switch to the remaining screw (or
backwire hole) on the dimmer.
Align dimmer and
tighten screws
clockwise.
