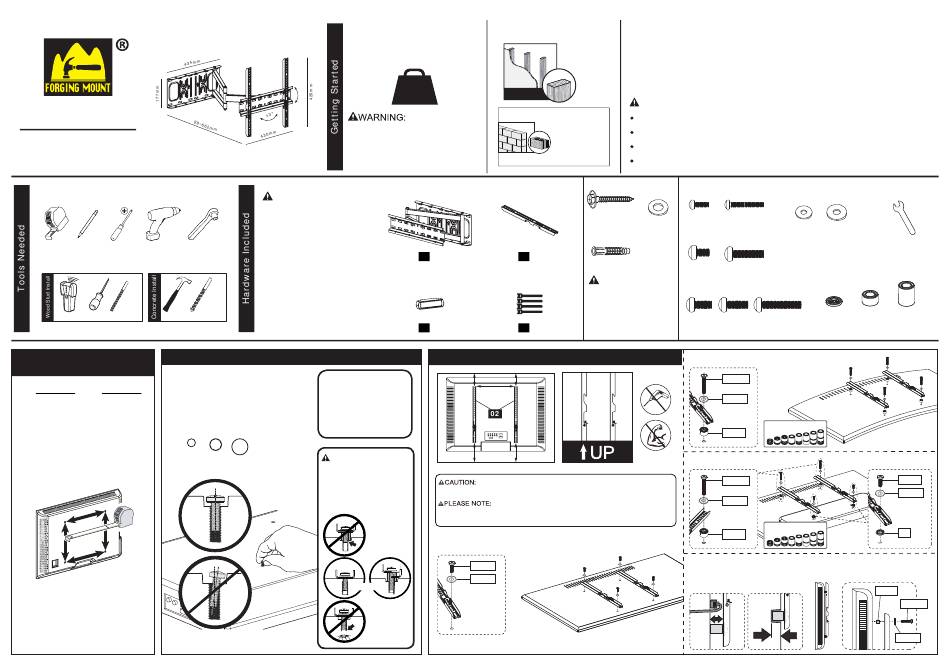

Instruction Manual
FULL MOTION
TV WALL MOUNT
Model :. HY9467-B
VESA: 400X400mm (Max)
Tape
Electric
1/2 in (13 mm)
Measure
Pencil
Screwdriver
Drill
Socket Wrench
7/32in.
(5mm)
Wood
Stud Finder
Awl
Drill Bit
Hammer
Step 1-1 Measure Your TV
Step 1-2 Select TV Screw Diameter
Hole Pattern
Hand thread screws into the threaded inserts
H
W
m
m
m
m
idth
x
eight
on the back of your TV to determine which
screw diameter ( M4, M6, or M8 ) to use.
100 mm = 10 cm ≈ 3.9 in.
200 mm = 20 cm ≈ 7.9 in.
300 mm = 30 cm ≈ 11.8 in.
M4
400 mm = 40 cm ≈ 15.7 in.
inch dimensions are approximate
W
H
Minimum VESA pattern:
100mm/3.9 in.(W)x100mm/3.9 in.(H)
Does your TV (including accessories)
weigth more than 77 lbs. ( 35 kg ) ?
V1.1
No — Perfect!
Yes — This mount is NOT compatible.
+5°
-12°
capacity can result in serious personal
injury or damage to equipment! It is the
installers's responsibility to make sure the
weight of the TV (with accessories) does
not exceed 77 lbs (35 kg).
WARNING:This product
contains small items that could
be a choking hazard if swallowed.
Before starting assembly, verify
all parts are included and
undamaged. If any parts are
missing or damaged, do not return
the damaged item to your dealer;
contact with Customer Service.
Never use damaged parts!
3/8in.
(10mm)
NOTE: Not all parts and hardware
Concrete
Drill Bit
included will be used.
Standard configurations
are shown. For special
applications, or if you
are uncertain about your
hardware selection,
you can contact at:
forgingmount888@163.com
M6
M8
CAUTION:
Verify
adequate thread engagement
with the screw/washer/spacer
combination and TV bracket.
-Too short will not hold the TV.
-Too long will damage the TV.
Too Short
Correct
Too Long
What is your wall made of ?
Dry wall with
woodstuds ?
77lbs
Perfect!
(35kg)
Solid concrete or
Exceeding the weight
concrete block?
Arm Assembly/ Wall Plate
TV Bracket
01
02
x1
x2
Level
Velcro Tie
03
04
x1
x4
Step 1-3 Secure the TV Brackets to the back of TV
Ensure the TV brackets [02] are EQUALLY CENTERED on your
TV and securely fastened in place.
The bolt hole locations on your TV may vary in accordance
with the manufacturers design of the TV. We are only illustrating possible
locations of the bolt holes.
Option A (For Flat Back TV)
D/F/H
J
/J
-1
-2
www.forgingmount.com
Please read through these instructions completely to be sure you're comfortable with
this install process. Also check your TV owner's manual to see if there are any special
requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation,
assembly or use of this product,please contact US via: forgingmount888@163.com
CAUTION:
Avoid potential personal injuries and property damage!
This product is designed for use in wood stud/concrete walls DO NOT install into drywall.
The wall must be capable of supportingfive times the weight of the TV and mount combined.
Do not use this product for any purpose not explicitly specified by manufacturer.
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
Lag Screw
Lag Bolt
TV Screws
Washers
ST7.3X57mm
M4X12mm
M4X30mm
B
A
x6
x6
D
E
x4
x4
Wall Anchor
C
x6
M6X15mm
M6X35mm
F
G
WARNING
x4
x4
:
Installation must use the
screws and accessories
provided by our company,
otherwise we are not
M8X15mm
M8X30mm
M8X50mm
responsible for any
H
I
X
x4
x4
problems.
Option B (For Round Back TV)
E/G/I/X
J
/J
-1
-2
K/L/T
Option C (For TV with A "Bump")
E/G/I/X
J
/J
-1
-2
K/L/T
Option D
For cable interference or inset holes, use spacers to create extra space between
the TV and TV brackets.
TV Washers
Wrench
Ø5
Ø8
J-1
J-2
M
x4
x4
x1
TV Spacers
L2.5MM
L10MM
L22MM
K
L
T
x8
x4
x4
x4
Alternate Spacer Setups
D/F/H
J
/J
-1
-2
Alternate Spacer Setups
K
(If needed)
K/L/T
E/G/I/X
J
/J
-1
-2
