www.forgingmount.com

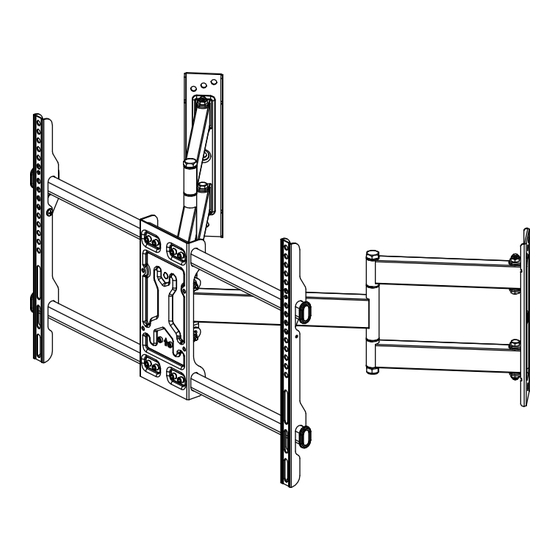

Corner TV Wall Mount
Instruction Manual
V1.1
VESA: 600X400mm(Max)
100X100mm(MIN)
Model: HY9395-B
Thank you for choosing our product! We strive to provide the best quality
and services for our customers. Would you kindly share your experience
on Amazon if you are satisfied? If you have any questions, please feel
free contact us.
Email: forgingmount888@163.com
We're ready to help!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Forging Mount HY9395-B
Summary of Contents for Forging Mount HY9395-B
- Page 1 V1.1 VESA: 600X400mm(Max) 100X100mm(MIN) Model: HY9395-B Thank you for choosing our product! We strive to provide the best quality and services for our customers. Would you kindly share your experience on Amazon if you are satisfied? If you have any questions, please feel free contact us.
-
Page 2: Specification Sheet
Specification Sheet www.forgingmount.com Min:1000 / 39" Max:1340 / 52" Max:1530 / 60"... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV owner’s manual to see if there are any special requirements for mounting your TV. If you do not understand these instructions or have doubts about the safety of the installation,assembly or use of this ptoduct, please contact US via: forgingmount888@163.com CAUTION: Avoid potential personal injuries and property damage! -
Page 4: Supplied Parts And Hardware
Verify Your Wall Construction CAUTION If you are not sure the wall construction, please contact DO NOT our costomer service at install into forgingmount888@163.com drywall alone Wood Studs Solid Concrete (with Drywall) or Concrete Block Tools Needed ( Not included ) Stud Finder Tape Measure Pencil... - Page 5 TV Bolts [Only one bolt size fits your TV] Note: The bolts are shown in accordance with the actual size M4 x 12mm M4 x 30mm M6 x 15mm M6 x 35mm M8 x 15mm M8 x 30mm M8 x 50mm Supplied Parts and Hardware for Step 2 Arm Assembly/Wall Plate Wall Plate Template...
- Page 6 Washer CAUTION! Wall These anchors are for Anchor concrete or brick walls ONLY. DO NOT use them in drywall or wood studs. Supplied Pares and Hardware for Step 3 to Step 6 Bolt M5x12mm [M] x2 Front Support Washer [N] x2 Step 1 Secure the TV Brackets to TV Select TV Bolts Only one bolt size fits your TV.
- Page 7 Note: If necessary, the spacers can be used in multi-layer. If the installation fails after trying various methods, please contact customer service at forgingmount888@163.com CAUTION: Ensure the TV brackets [03] are EQUALLY CENTERED on your TV AND securely fastened in place. Option A (For Flat Black TV) D/F/H Option B (For Round Back TV)
- Page 8 Option C (For TV with A “Bump”) Spacers may be necessary for 2 holes ONLY. D/F/H E/G/I/X Alternate Spacer Setups Option D For cable interference or inset holes, use spacers [06] to create extra space between the TV and TV brackets E/G/I/K Alternate Spacer Setups...
- Page 9 Step 2 Attach the Arm Assembly/Wall Plate [01] to Wall For wood stud installation, follow STEP 2A For concrete installation, follow STEP 2B Step 2A Wood Stud Option WARNING: ●Avoid potential personal injury or property damage! DO NOT over-tighten the lag screws [A].
- Page 10 2A-3 Drill 6 pilot holes using a 7/32 in.(5.5mm) diameter drill bit. IMPORTANT: Pilot holes must be drilled to a depth of 3 in.(75mm).Be sure to drill into the center of the stud. 3 in.(75mm) ø7/32 in.(5.5 mm) 2A-4 Install the arm assembly/wall plate [01] using lag screws [A] and washer [B] .
- Page 11 2B-1 Position the wall plate template [04] at your desired height and line up the holes with your stud center line. Level the wall plate template [04] and mark the holes. 2B-2 Drill 6 pilot holes using a 3/8 in. (10mm) diameter drill bit.
- Page 12 Step 3 Secure the Arm Assembly [02] to Wall Plate [01] Step 3 Secure the Front Support to the Arm Assembly/Wall Plate 1. Loosen the 4 bolts [S1] pre-installed in front support [02-2] and save them. 2. Tighten the 8 bolts [S1] on the front bracket [02-1] and [02-2] . 02-1 S1x8 02-2...
- Page 13 Step 4 Hang the TV onto the Front Support Remove the bolt [S2] and hang the TV onto the front support [02] Screwdriver HEAVY! You may need (Not lncluded) assistance with this step. Press the safety locks down, then fasten the removed bolts [S2] Screwdriver (Not lncluded)
- Page 14 Step 5 Adjustments CAUTION! DO NOT over-loosen these four nuts when Level adjusting the level angle to prevent the TV Loosen from falling off. 1.Loosen the bolt [M] . 2.Level your TV. 3.Tighten the bolt [M] to secure the TV in place. Tighten -5°...
- Page 15 Arrange all the cable and tie Cabel Management them to the arm with cable ties Cable WIDE WALL COMPATIBILITY Flat Wall “A”-Shaped Corner “V”-Shaped Corner “Z”-Shaped Corner...
- Page 16 Thank you again for choosing this forgingmount product!
