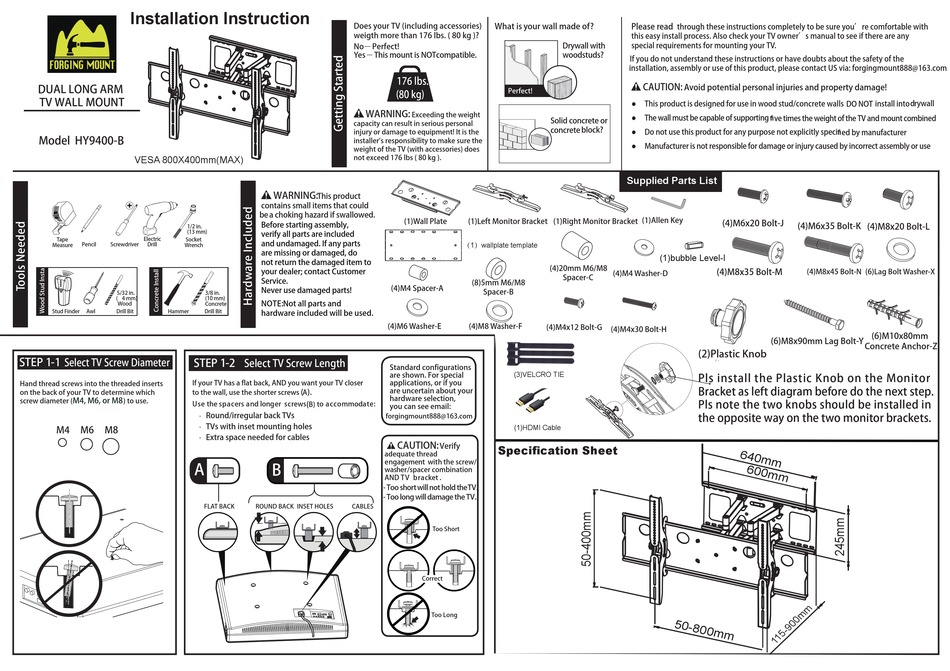

Forging Mount HY9400-B Installation Instruction

Installation Instruction

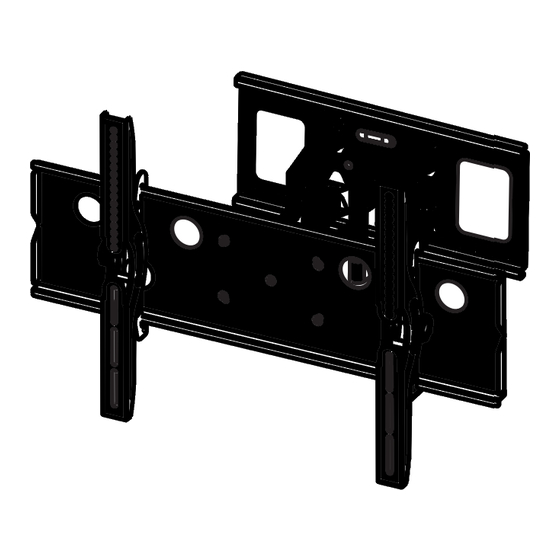

DUAL LONG ARM
TV WALL MOUNT
Model HY9400-B
VESA 800X400mm(MAX)
1/2 in.
(13 mm)
Electric
Tape Socket
Measure Pencil Screwdriver Drill Wrench
5/32 in.
( 4 mm)
Wood
Hammer
Stud Finder Awl Drill Bit
STEP 1-1
Select TV Screw Diameter STEP 1-2
If your TV has a flat back, AND you want your TV closer
Hand thread screws into the threaded inserts
on the back of your TV to determine which to the wall, use the shorter screws
M4, M6, or M8
screw diameter ( ) to use.
Use the spacers and longer s crews
M4 M6 M8
A
Does your TV (including accessories)
weigth more than 176 lbs. ( 80 kg )?
No — Perfect!
Y es — This mount is NOT compatible.
WARNING
capacity can result in serious personal
injury or damage to equipment! It is the
installer's responsibility to make sure the
weight of the TV (with accessories) does
not exceed 176 lbs ( 80 kg ).
WARNING:
This product
contains small items that could
be a choking hazard if swallowed.
Before starting assembly,
verify all parts are included
and undamaged. If any parts
are missing or damaged, do
not return the damaged item to
your dealer; contact Customer
Service.
Never use damaged parts!
3/8 in.
(10 mm)
NOTE: Not all parts and
Concrete
Drill Bit
hardware included will be used.
Select TV Screw Length
( ).
A
( B) to accommodate:
· Round/irregular back TVs
· TVs with inset mounting holes
· Extra space needed for cables
B
FLAT BACK ROUND BACK INSET HOLES CABLES
What is your wall made of?
Drywall with
woo studs?
176 lbs.
Perfect!
(80 kg)
:
Exceeding the weight
Solid concrete or
conc et block?
(1)Wall Plate (1)Left Monitor Bracket (1)Right Monitor Bracket
（1）wallplate template
(4)20mm M6/M8
Spacer-C
(8)5mm M6/M8
(4)M4 Spacer-A
Spacer-B
(4)M6 Washer-E (4)M8 Washer-F
(4)M4x12 Bolt-G
Standard configurations
(3)VELCRO TIE
are shown. For special
applications, or if you
are uncertain about your
hardware selection,
you can see email:
forgingmount888@163.com
(1)HDMI Cable
CAUTION :
Verify
Specification Sheet
adequate thread
engagement with the screw/
washer/spacer combination
AND TV bracket .
- Too sho will not hold the TV. rt
- Too long will damage the TV.
Too Short
Correct
Too Long
Please read
through these instructions completely to be sure you're comfortable with
this easy install process. Also check your TV owner's manual to see if there are any
special requirements for mounting your TV.
d
If you do not understand these instructions or have doubts about the safety of the
installation, assembly or use of this product, please contact US via: forgingmount888@163.com
CAUTION:
Avoid potential personal injuries and property damage!
●
This product is designed for use in wood stud/concrete walls DO NOT install into drywall
●
The wall must be capable of supporting ve times the weight of the TV and mount combined
r e ●
Do not use this product for any purpose not explicitly speci ed by manufacturer
●
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Supplied Parts List
(1)Allen Key
(4)M6x20 Bolt-J
(1)bubble Level-I
(4)M8x35 Bolt-M
(4)M4 Washer-D
(4)M4x30 Bolt-H
(2)Plastic Knob
Pls install the Plastic Knob on the Monitor
Bracket as left diagram before do the next step.
Pls note the two knobs should be installed in
the opposite way on the two monitor brackets.
fi
fi
(4)M6x35 Bolt-K
(4)M8x20 Bolt-L
(4)M8x45 Bolt-N (6)Lag Bolt Washer-X
(6)M10x80mm
(6)M8x90mm Lag Bolt-Y
Concrete Anchor-Z
