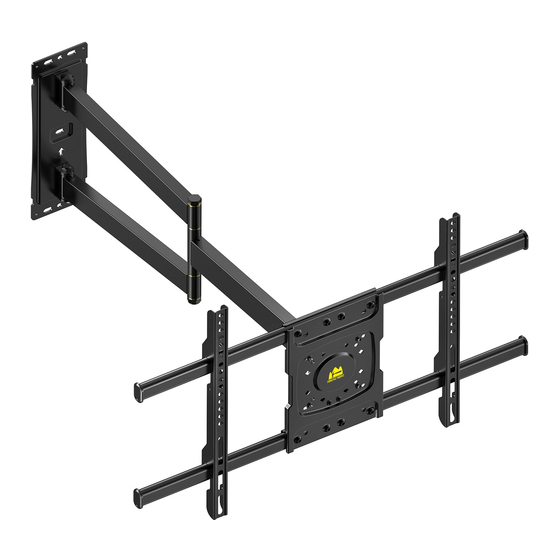

Forging Mount HY9440 Instruction Manual

Instruction Manual
FULL MOTION
TV WALL MOUNT
Model: HY9440
Max. VESA: 600X400mm
Max. Distance: 33" (83.8cm)
www.forgingmount.com
Tape Electric 1/2 in (13 mm)
Measure Pencil Screwdriver Drill Socket Wrench
7/32in.
(5mm) (10mm)
Wood Concrete
Stud Finder Awl Drill Bit Hammer Drill Bit
Step 1-1 Select TV Screw Diameter Step 1-2 Select TV Screw Length
Hand thread screws into the threaded inserts
If your TV has a flat back, AND you want your TV closer
on the back of your TV to determine which
to the wall, use the shorter screws(A).
screw diameter ( M4, M6, or M8 ) to use.
Use the spacers and longer screws(B) to accommodate:
M4 M6 M8
Does your TV (including accessories)
V2.0
weigth more than 99 lbs. ( 45 kg ) ?
No — Perfect!
Yes — This mount is NOT compatible.
WARNING:
capacity can result in serious personal
injury or damage to equipment! It is the
installers's responsibility to make sure the
weight of the TV (with accessories) does
not exceed 99 lbs(45kg).
Arm Assembly/ Wall Plate
WARNING
: This product
contains small items that could
be a choking hazard if swallowed.
Before starting assembly, verify
all parts are included and
undamaged. If any parts are
missing or damaged, do not return
the damaged item to your dealer;
contact Customer Service.
Never use damaged parts!
3/8in.
NOTE: Not all parts and hardware
included will be used.
· Round/irregular back TVs
· TVs with inset mounting holes
· Extra space needed for cables
FLAT BACK ROUND BACK INSET HOLES CABLES
What is your wall made of ?
Dry wall with
woodstuds ?
99lbs
(45kg)
Perfect!
Solid concrete or
Exceeding the weight
concrete block?
TV Mount Plate Arm Extension
01 02 03
x1 x1 x4
TV Bracket Wall Plate Template Level
05 06 07
x2 x1 x1
STEP1-3 Secure the TV Mount Plate / TV Brackets to the back of TV
Standard configurations
are shown. For special Position your TV Mount Plate / TV Backets over your TV hole
applications, or if you
pattern- making sure the brackets are centered and level over
are uncertain about your
the TV hole pattern.Secure the TV plate or brackets using your
hardware selection,
you can contact at: screw/washer spacer selectiion:
forgingmount888@163.com
(a) for Flat Back
(b) for Round Back/Extra space
CAUTION:
Verify
(a1) Flat Back
adequate thread engagement
with the screw/washer/spacer
combination and TV bracket. D/F/H
-Too short will not hold the TV.
J
-Too long will damage the TV.
Too Short
(b1) Round Back / Extra Space
E/G/I/X
Correct
J
Too Long
K/L
Please read throuth these instructions completely to be sure you're comfortable with
this install process. Also check your TV owner's manual to see if there are any special
requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation,
assembly or use of this product,please contact US via: forgingmount888@163.com
CAUTION:
Avoid potential personal injuries and property damage!
This product is designed for use in wood stud/concrete walls DO NOT install into drywall.
The wall must be capable of supportingfive times the weight of the TV and mount combined.
Do not use this product for any purpose not explicitly specified by manufacturer.
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
Fixed Bracket Lag Screw TV Screws
M4X12mm M4X30mm
5/16x2.75"
D
E
A x4
x4
x4
Lag Screw
04 Washers
x2
M6X15mm M6X35mm
Velcro Tie F G
x4 x4
B
x4
Wall Anchor
M8X15mm M8X30mm
H I
08
x5
x4 x4
C
x4
Note: If your TV VESA is less than 100x200mm / 4x8 inch,
you only need to install a TV Mount Plte. If your TV VESA is
more than 100x200mm/4x8 inch or less than 600x400 mm /
23x16 inch, you need to install a TV bracket.
CAUTION: Ensure TV Mount Plate / TV Bracket is
securely fastened before moving on to the next step.
(a2) Flat Back
02
D/F/H
J
(b2) Round Back / Extra Space
02
E/G/I/X
J
Alternate Spacer Setups K/L
TV Washers TV Spacers Allen key
Ø5 x4 Ø8 x4 L 5mm L 10mm
J K L O
x8 x8 x1
Bolts Washers Wrench
M8X50mm
M5X12mm Ø5
X
M N P
x4
x2 x2 x1
05
05
Alternate Spacer Setups
