Instruction Manual

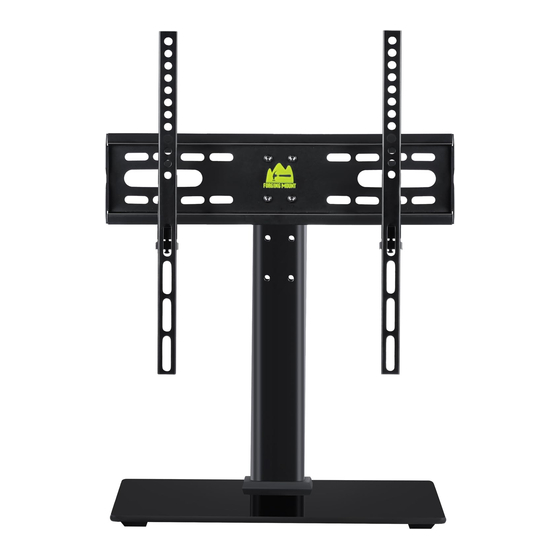

Swivel TV Stand
Thank you for choosing our product! We strive to provide the best quality
and services for our customers. Would you kindly share your experience
on Amazon if you are satisfied? If you have any questions, please feel
free contact us.
forgingmount888@163.com
Email：
We're ready to help!
HY4114
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Forging Mount HY4114
Summary of Contents for Forging Mount HY4114
- Page 1 ® Instruction Manual Swivel TV Stand HY4114 Thank you for choosing our product! We strive to provide the best quality and services for our customers. Would you kindly share your experience on Amazon if you are satisfied? If you have any questions, please feel free contact us.
- Page 2 Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of HY4114 and the display does not exceed 88 ibs(40kg).Use with heavier televisions may result in instability causing tip over resulting in death or serious injury! This product contains small items that could be a choking hazard if swallowed.
- Page 3 Step 1-2 Put O (Tempered Glass) on the table. Put R (Metal Pad) and L (M6x25 Bolt) under O. Turn Y (Plastic Cover) and P (Support Pillar) upside down under O to install and then tighten screws. Step 1-3 If you find the support column (P) is not in the correct direct ion, please see figure 1.1 below.
- Page 4 STEP 3-1 Attach the TV Plate(03) to the Swiveling bracket of Support Pillar (03) TV Plate (Q) M6X8 Bolt M6 X8 screws STEP 3-2 cable management (Attaching wire clips) Attaching J...
- Page 5 Step 4 Measure VESA and Check TV screws Measure the distance between the holes located at the back of your TV (these measures may form the shape of a square, or a rectangle) and check that these taken measures are within the VESA (*) range for this wall mount.
- Page 6 Step 5-1 Mounting the Monitor Brackets(N) to your TV First, make sure the diameter of the bolt(A-F) fits your TV. Then, please see the diagram above. You will need to thread the bolt into the TV using the correct washer (G) and spacer (G or I) if necessary with a screwdriver(Not included).
- Page 7 Step 6 Height Adjustable of the TV Brackets cable management STEP 7 Swivel adjustments 45 degrees Swivel left to right...
