PowerTec 71132 Instruction Sheet

INSTRUCTION SHEET
QUICK RELEASE WORKBENCH
CASTER PLATE KIT (4 PACK)
QUESTION...
1•847•780•6120
This kit contains four workbench caster plates to be used
with Powertec 17000 Workbench Caster Kit or other
compatible brands. One set of casters may be used with
multiple sets of the workbench caster plate kits.
PACKAGING CONTENTS
4 - Caster Plates
4 - Locking Pins
8 - Bolt 1/4"-20 x 2 (50.8 mm) long
8 - Washers
8 -Nuts
ASSEMBLY
• Make sure the stand is sitting on a flat stable surface.
• Measure and mark 2-1/2" (65.3 mm) from the floor to
the center of the workbench leg.
• Place the caster plate onto the workbench leg and align
the bottom hole with the 2-1/2" (65.3 mm) mark. Mark
the top hole [4" (101.6 mm)]. Remove caster plate and
drill holes into workbench leg. Repeat on each leg.
NOTE: If assembling several caster plates, a template
can be created.
• Mount the caster plate to workbench leg with supplied
hardware (bolt, washer, nut). Repeat on each leg.
NOTE: If the workbench leg is larger then 1-1/2"
(38.1 mm), longer bolts (not included) will be needed.

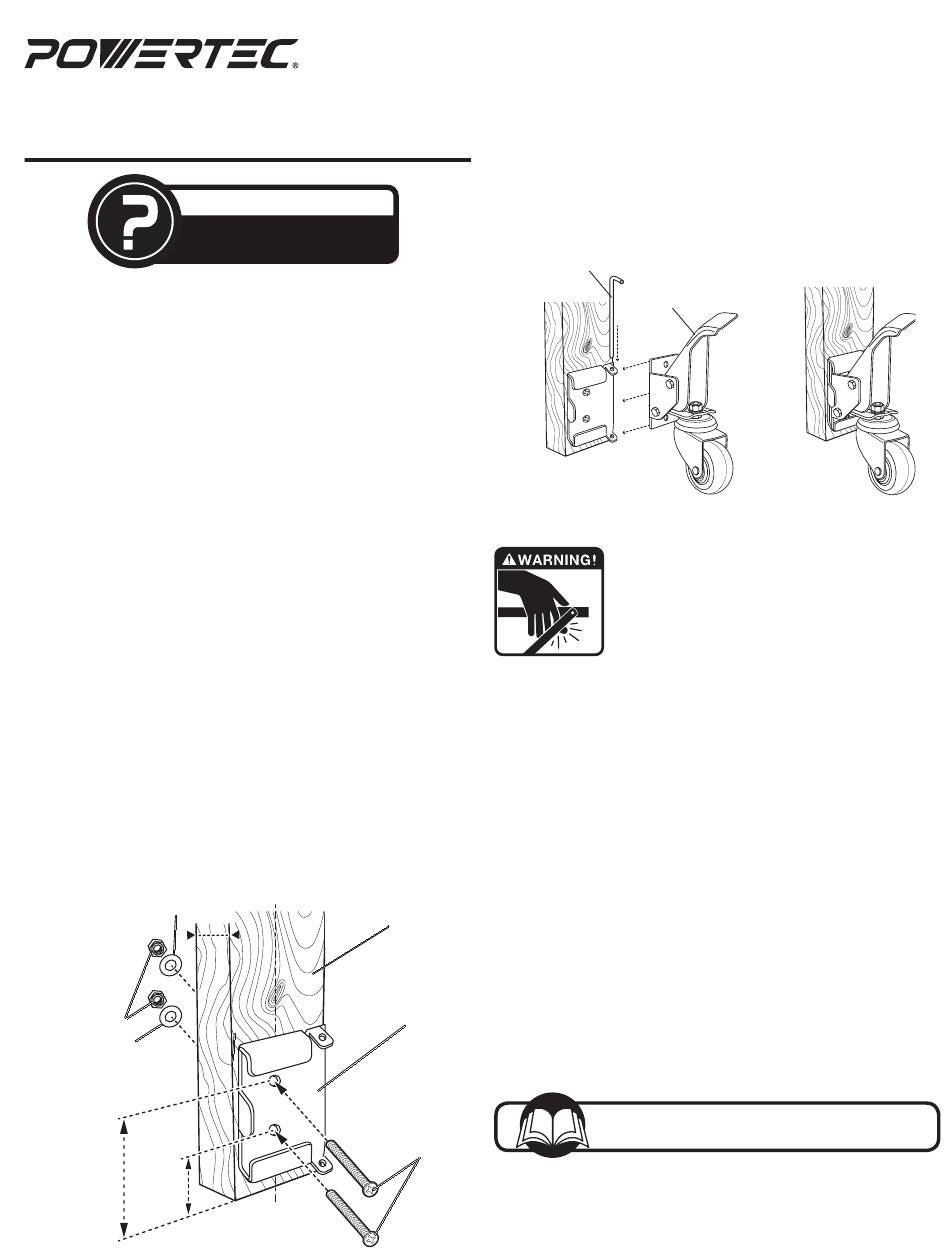

Figure 1
1-1/2"
Washer
(38.1 mm)
Nuts
Washer
4"
2-1/2"
(101.6 mm)
(63.5 mm)
Workbench
Leg
Plate
Screws
Floor
• With caster in the "up" position align to caster plate and
slide into place, lock in place with locking pin.
Figure 2
Locking Pin
Caster in "up"
position
TO USE
PINCH HAZARD! Always use feet to step
on the caster levers.
• Step on the caster lever and the caster assembly will
extend and lift the legs off the ground allowing the stand
to be moved.
• To retract, use your foot to raise the caster lever and the
caster assembly will "snap" up, lowering the leg.
Visit us on the web at www.southerntechllc.com
Put these instructions and the original sales invoice in a safe,
dry place for future reference.
Southern Technologies, LLC
3816 Hawthorn CT,
Waukegan, IL 60087
Model No. 71132
17-1206
