Rhino-Rack 43178 Manual

Place these instructions in the vehicle's glove box after installation is complete.
Important: Please read these instructions carefully prior to installation.
Please refer to your fi tting instruction to ensure that the alloy tray is installed correctly.
Check the contents of this kit before commencing fi tment and report any discrepancies.
Item Component Name
1 M10 Eye Bolt Black
2
M10 Shakeproof Washer
3 M10 x 38 x 2.5mm Flat Washer
4
M10 x 30 x 2.5mm Flat Washer
5 M10 Plate Nut
6 Instructions
1
2

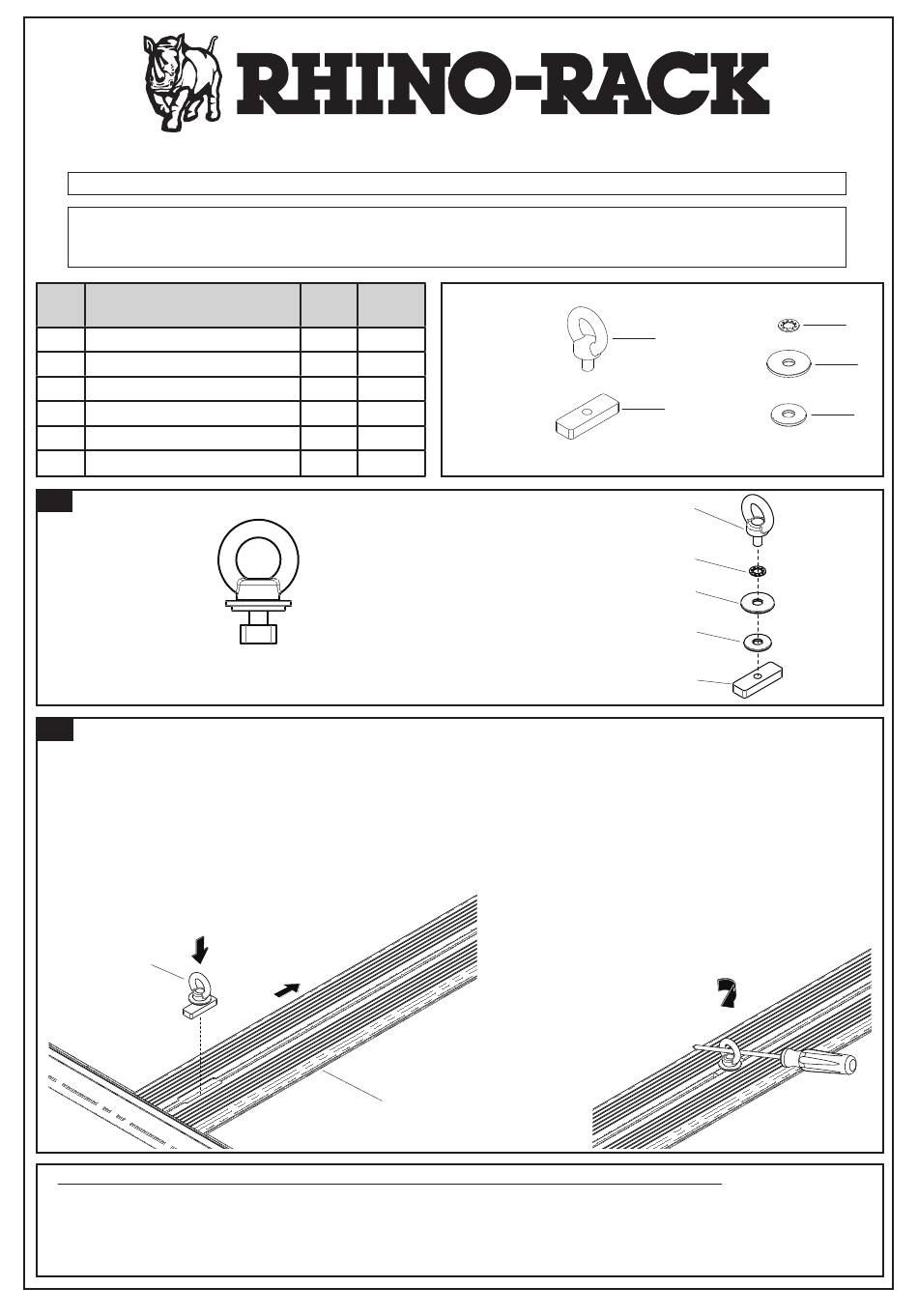

Fit Eye Bolt to Plank
Lower the eye bolt assembly into the slot at the front of the plank as shown, the plate nut should be sitting within the
C channel of the plank. Slide the eye bolt along the plank to the desired position. Secure the eye bolt in place by
sliding a screwdriver through the eye of the bolt and rotate clockwise to tighten.
Eye Nut
Assembly
Note for Dealers and Fitters:
It is your responsibility to ensure these fi tting instructions are given to the end user or client
Rhino-Rack, 22 Hanson St, Eastern Creek
NSW 2766, Australia
(02) 8846 1900
rhinorack.com.au
These instructions remain the property of Rhino-Rack Australia Pty. Ltd. and may not be used or changed for any other purpose than intended.
43178 - Eye Bolt Pioneer Alloy Tray
Qty Part No.
43178
4 C013-B
4
W021
4 W022
4
W023
4 N061
1 RR248
Assembled
View
Plank
Shakeproof Washer
OD38 Flat Washer
OD30 Flat Washer
Document No: RR-248
Issue No: 04
Issue Date: 29/07/2019
CONTROLLED
1
5
M10 Eye Bolt
M10 Plate Nut
2
3
4
Page 1 of 1
