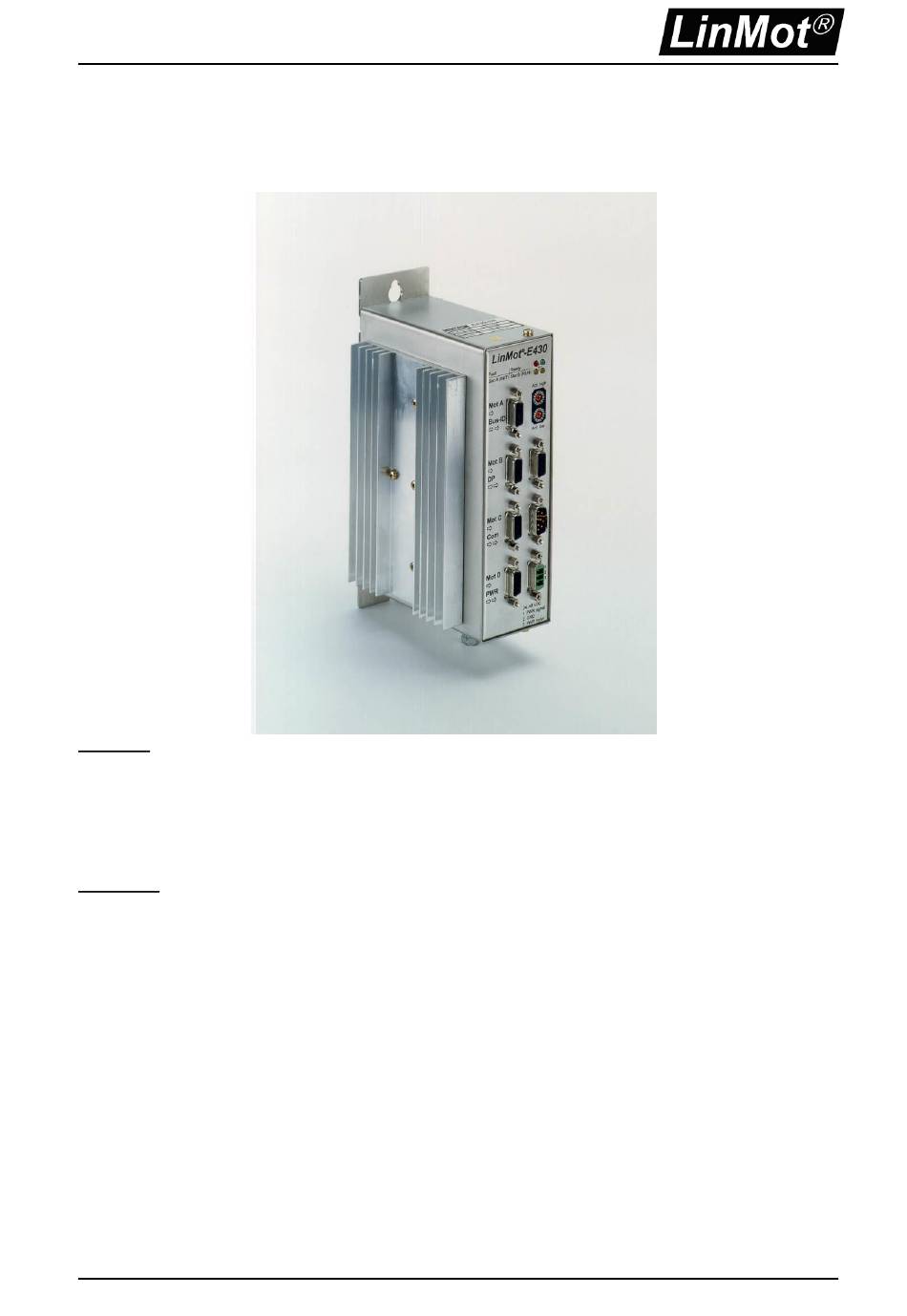

Controller Series E130/230/430
Installation Guide
Controller Series E130/E230/E430
Products
E130-DP
E230-DP
E430-DP
Content
IMPORTANT NOTES FOR E130/E230/E430 SERIES CONTROLLERS ..................... 2
SYSTEM OVERVIEW ............................................................................................................. 3
E130 SERIES FUNCTION AND WIRING ........................................................................... 4
POWER SUPPLY AND GROUNDING ................................................................................ 5
DESCRIPTION OF THE CONNECTORS / INTERFACES .............................................. 6
POWER SUPPLY REQUIREMENT ................................................................................... 10
ORDERING INFORMATION ............................................................................................... 10
DECLARATION OF CONFORMITY CE-MARKING ....................................................... 11
ERROR CODES .................................................................................................................... 12
CONTACT ADDRESSES .......................... FEHLER! TEXTMARKE NICHT DEFINIERT.
NTI AG
Installation: E130/E230/E430 series / 12.12.2017
Page 1/12
Advertisement
Table of Contents
Related Manuals for LinMot E130 Series
Summary of Contents for LinMot E130 Series
-
Page 1: Table Of Contents
E430-DP Content IMPORTANT NOTES FOR E130/E230/E430 SERIES CONTROLLERS ..... 2 SYSTEM OVERVIEW ......................3 E130 SERIES FUNCTION AND WIRING ................4 POWER SUPPLY AND GROUNDING ................5 DESCRIPTION OF THE CONNECTORS / INTERFACES ..........6 POWER SUPPLY REQUIREMENT ................... 10 ORDERING INFORMATION .................... -
Page 2: Important Notes For E130/E230/E430 Series Controllers
All connectors must not be connected or disconnected while DC voltage is present. Do not disconnect system components until all LinMot controller LED’s have turned off. (Capacitors in the power supply may not fully discharge for several minutes after input voltage been disconnected). -
Page 3: System Overview
Controller Series E130/230/430 System Overview Complete E430 Controller based system (E130 and E230 controllers will only drive one respectively two motors). Power Supply for Signal and Motor may be the same device (see later). NTI AG Installation: E130/E230/E430 series / 12.12.2017 Page 3/12... -
Page 4: E130 Series Function And Wiring
Controller Series E130/230/430 E130 series Function and Wiring Picture shows typical wiring of a single axes controller. Multiple axes controller will have additional motor connectors. NTI AG Installation: E130/E230/E430 series / 12.12.2017 Page 4/12... -
Page 5: Power Supply And Grounding
In order to assure a safe and error free operation, and to avoid severe damage to system components, all system components must be well grounded to either a single earth or utility ground. This includes both LinMot and all other control system components to the same ground bus. -
Page 6: Description Of The Connectors / Interfaces
Controller Series E130/230/430 Description of the connectors / Interfaces Power Supply Supply: Supply Voltage 24...48VDC. Absolute max. Rating 48VDC + 10% Supply voltage for PWR Signal and PWR Motor may be different Motor Supply GND must be externally connected to earth Caution: By exceeding 53VDC supply voltage, the controller will go into error state. - Page 7 Do not connect or disconnect the motors from controllers with voltage present. Wait to connect or dis- connect motors until all LinMot controller LED’s have turned off. (Capacitors may not fully discharge for several minutes after power has been turned off).Failure to observe these precautions may result in se- vere damage to electronic components in LinMot motors and/or controllers.
- Page 8 Controller Series E130/230/430 Profibus Connector DSUB-9 (female) Isolated 5V output: max 50 mA Profibus ID ID 1 : Profibus address high ID 2 : Profibus address low NTI AG Installation: E130/E230/E430 series / 12.12.2017 Page 8/12...
-
Page 9: Mechanical Dimension
Controller Series E130/230/430 Mechanical Dimension Dimensions Recommended mounting for multiple controller installation NTI AG Installation: E130/E230/E430 series / 12.12.2017 Page 9/12... -
Page 10: Power Supply Requirement
The calculation of the needed power for the Motor supply is depending on the application and the used motor(s). The following table shows a recommendation for general applications. Controller Voltage/ Power LinMot Switched- Power Supply Part-Nr. E100 1 motor 48 V / 150 W... -
Page 11: Declaration Of Conformity Ce-Marking
Controller Series E130/230/430 Declaration of Conformity CE-Marking Manufacturer: NTI AG ® LinMot Haerdlistrasse 15 8957 Spreitenbach Switzerland Tel.: +41 (0)56 419 91 91 Fax: +41 (0)56 419 91 92 ® Products: LinMot Controllers Type Art.-No. Type Art-No. Type Art.-No. E130-DP... -
Page 12: Error Codes
Bodenaeckerstrasse 2 Tech Support: +41-(0)56-544 71 00 CH-8957 Spreitenbach support@linmot.com Schweiz http://www.linmot.com/support skype:support.linmot Fax: +41 (0)56-419 91 92 Web: www.linmot.com LinMot Inc. Sales: 877-546-3270 204 E Morrissey Dr. 262-743-2555 Elkhorn Tech. Service: 877-804-0718 WI 53121 262-743-1284 Fax: 800-463-8708 262-723-6688 E-Mail: sales@linmot-usa.com...
