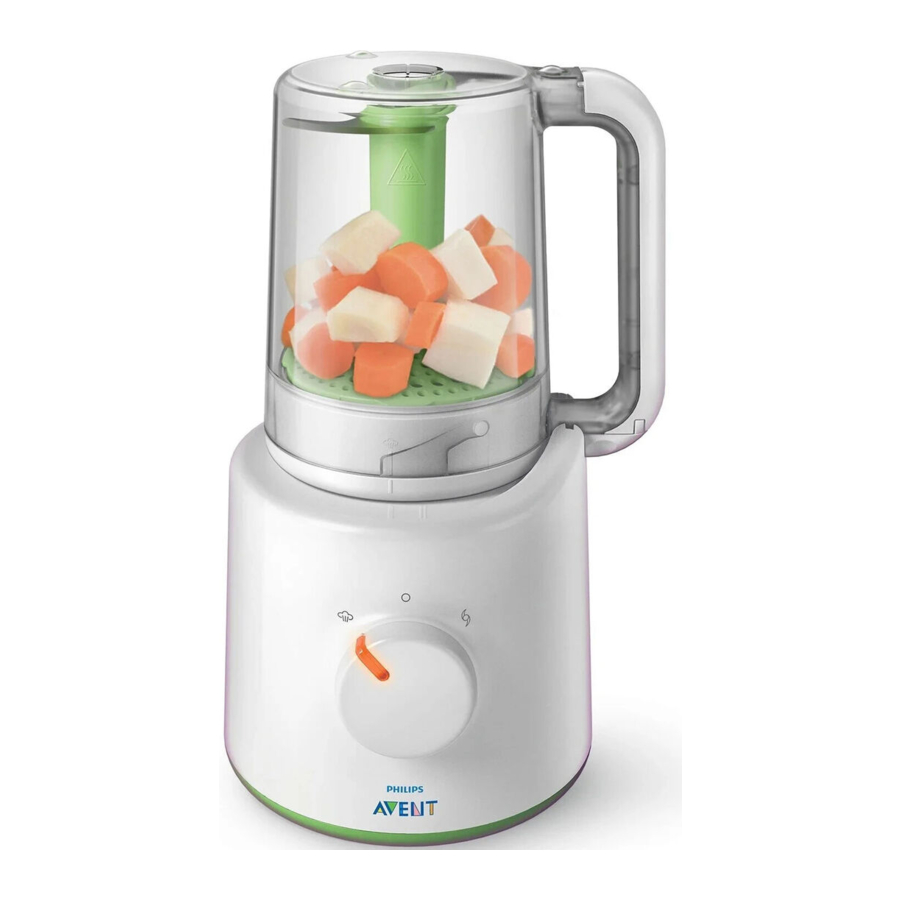

Philips AVENT SCF870 Manual

Introduction

To fully benefit from the support that Philips AVENT offers, register your product at www.philips.com/welcome.
This combined steamer and blender is particularly suitable for preparing small amounts of baby food. The combined steamer and blender supports all parents in preparing fresh meals for their babies with a simple steaming and blending function combined in one appliance.

General description

1. Lid with steam hole
2. Valve
3. Sieve
4. Blade unit
5. Jar with blade unit holder
6. Steam outlet on motor unit
7. Locking area for handle
8. Filling opening of water tank
9. Motor unit
10. Steaming light
11. Control knob
12. Bottom of the appliance with mains cord
13. Measuring cup
14. Spatula

Before first use

1. Remove all packaging material from the appliance.
2. Clean all parts except the motor unit (see chapter 'Cleaning and maintenance').

Using the appliance

Always check the temperature of the baby food on the back of your hand before you feed your baby.
Always make sure that the lid has cooled down after steaming before you open it to add more ingredients for blending, if necessary. Do not exceed the maximum level indicated on the jar.
Empty the water tank before you reill it to start a new steaming process.
Always make sure that the top edge of the green blade unit is not covered with food when you start steaming.
Do not exceed the maximum level indicated on the jar (450ml) when you blend liquids.
This appliance is intended for steaming fresh solid ingredients and then blending them to obtain baby food. See the recipe booklet for some examples. Normally you would first steam the ingredients and then blend them. However, you can also use the appliance for steaming or blending only. When you use the appliance for blending only, skip the sections 'Filling the water tank' and 'Steaming' and only follow the instructions in section 'Blending'. After blending, never steam already blended food. Never steam the same batch of ingredients for longer than 20 minutes or more than once.
This appliance is NOT intended for:

• Defrosting food
• Steaming frozen food
• Steaming already blended food
• Steaming the same ingredients for more than 20 minutes
• Cooking rice and pasta
• Blending ingredients first and then steaming them
• Heating up flluids, e.g. soup or water
• Keeping food warm for several hours
• Reheating food

Filling the water tank

1. Fill the measuring cup with water up to the required level (Fig. 3).
   The measuring cup shows milliliters and the corresponding steaming time in minutes. See the separate recipe booklet for the recommended quantities of the recipes.
   Note: Do not exceed the maximum level indicated on the measuring cup (200ml) to make sure that you do not overfill the water tank.
   Note: We advise you not to use mineral water, as the minerals contained in this type of water cause scale to build up inside the water tank.

2. Pour the water into the filling opening and close the lid (Fig. 4).
   Note: Never put anything else than water in the water tank.


Steaming
If certain vegetables and fruits are steamed gently, they are perfect for babies who start to eat solid food. Steaming is the healthiest way of preparing food, as the food retains lots of vitamins and other healthy nutrients.
Note: You can find recipes and the cooking times required for these recipes in the separate recipe booklet. Note that the recipes are related to the age of the child.
Note: Do not steam frozen ingredients because the appliance cannot heat up frozen food to the temperature required for steaming. Always defrost frozen solid ingredients before you steam them in this appliance. Shake off any excess water from the defrosted ingredients before you put them in the jar.

1. Put the blade unit on the blade unit holder in the jar (Fig. 5).

2. Cut solid ingredients into small pieces (cubes not bigger than 2-3cm) before you put them in the jar.
   Note: Do not process a large quantity of solid ingredients at the same time. Process these ingredients in a series of small batches instead.
3. Put the ingredients in the jar. (Fig. 6)
   Note: Do not exceed the top edge of the green blade unit.
   Note: Never put water or any other liquid in the jar for steaming, to avoid damage to the appliance.

4. Put the valve in the lid of the jar (Fig. 7).
   Note: Make sure the valve is fixed in the lid.

5. Put the sieve in the lid of the jar ('click') (Fig. 8).

6. Place the lid on the jar and turn it clockwise to fix it. The small projections on the lid have to slide into the grooves in the jar. Make sure that the large projection of the lid is placed exactly over the handle of the jar (Fig. 9).

7. Place the jar upside down on the motor unit, i.e. with the lid downwards. Make sure the handle is on the right-hand side (Fig. 10).
   Note: The appliance does not start steaming if the jar and handle are not in the correct position.

8. Turn the control knob to the steaming position.
   • The steaming light lights up orange to indicate that the appliance is steaming (Fig. 11).

     Hot steam or hot water could burn your fingers. Do not touch and never let children touch hot parts and steam, as this may cause scalds (Fig. 12).

   • The steaming time depends on the amount of water you have put in the water tank. See the table in chapter 'Ingredients and steaming times' and the recipe booklet.
   • When the steaming process is finished, the appliance produces a buzzing sound and the steaming light goes out.
9. Set the control knob to the off position. Wait 2 minutes until no more steam comes out of the steam outlet, to avoid scalding by hot steam. (Fig. 13)
   If you want to serve the steamed baby food without blending it, test the food on the back of your hand to make sure it is at a safe temperature for your baby.
   Note: If you want to steam another batch of ingredients, let the appliance cool down for 10 minutes before you start steaming again.

10. If you want to proceed with blending the steamed food, follow the instructions in section 'Blending after steaming' below.
11. Under normal conditions, no water remains behind in the water tank after steaming. However, in some situations (e.g. in case of scale build-up inside the water tank, interruption of the steaming process or unintended use), some water could remain behind in the water tank. In this case, empty the water tank completely after use to avoid bacterial growth. To descale the water tank, see chapter 'Cleaning and maintenance'.

Blending after steaming

1. Grab the jar handle and lift the jar off the motor unit. Turn the jar around and shake it so that the food falls down onto the blade unit (Fig. 14).

   Only touch the jar handle. The lid, bottom and outer surface of the jar are hot (Fig. 15).

2. If necessary, remove the lid and add additional ingredients for blending (e.g. water or oil).
   Always make sure that the lid has cooled down after steaming before you open it to add more ingredients (do not exceed the maximum level indication) or to remove the remaining water from the water tank.
   After you have put liquids in the jar, never put the jar in the steaming position.
3. Place the jar upright on the motor unit, i.e. with the lid upwards. Make sure the handle is on the right-hand side and positioned between the two ridges of the locking area (Fig. 16).

4. Turn the control knob to the blending position. Hold the knob in this position until the food is properly blended (Fig. 17).
   Do not let the appliance blend for more than 30 seconds at a time. If you have not finished blending after 30 seconds, switch off the appliance and wait a few seconds before you continue. If the appliance becomes hot, let it cool down for a few minutes before you continue.
   Note: If the ingredients stick to the wall of the jar, switch off the appliance and loosen them with the spatula or add some liquid.
   Note: Make sure that the blended baby food has the right consistency (e.g. no lumps) before you serve it.
   Note: If the baby food is still too solid add some flluid (e.g. water) until the baby food is soft and smooth.

5. When you have finished blending, simply release the control knob. (Fig. 18), The knob automatically returns to the off position.

6. Remove the blended food from the jar. If necessary, use a spatula.
   Make sure that the baby food is at a safe temperature for your baby.
7. Unplug the appliance.
8. Under normal conditions, no water remains behind in the water tank after steaming. However, in some situations (e.g. in case of scale build-up inside the water tank, interruption of the steaming process or unintended use), some water could remain behind in the water tank. In this case, empty the water tank completely after use to avoid bacterial growth. To descale the water tank, see chapter 'Cleaning and maintenance'.

Blending without steaming
The appliance is intended for:

• pureeing steamed and cooked ingredients for baby food
• blending flluids and fruits for baby drinks

The appliance is not intended for chopping hard ingredients such as ice cubes and sugar cubes.
After you have put liquids in the jar, never put the jar in the steaming position.
Note: When you blend flluids, make sure you do not ill the jar beyond the maximum level indication on the jar.
Note: Never steam baby food after you have blended it.

1. Put the blade unit on the blade unit holder in the jar (Fig. 5).
2. Cut solid ingredients into small pieces (cubes not bigger than 2-3cm) before you put them in the jar.
   Tip: Do not process a large quantity of solid ingredients at the same time. Process these ingredients in a series of small batches instead.
3. Put the ingredients in the jar. (Fig. 6)
   Note: Do not exceed the top edge of the green blade unit.
4. Put the valve in the lid of the jar (Fig. 7).
   Note: Make sure the valve is fixed in the lid.
5. Put the sieve in the lid of the jar ('click') (Fig. 8).
6. Place the lid on the jar and turn it clockwise to fix it. The small projections on the lid have to slide into the grooves in the jar. Make sure that the large projection of the lid is placed exactly over the handle of the jar. (Fig. 9)
7. Place the jar upright on the motor unit, i.e. with the lid upwards. Make sure the handle is on the right-hand side and positioned between the two ridges of the locking area (Fig. 16).
8. Turn the control knob to the blending position. Hold the knob in this position for as long as you need but for not more than 30 seconds (Fig. 17).
   Note: If the ingredients stick to the wall of the jar, switch off the appliance and loosen them with the spatula or add some liquid. Do not exceed the maximum level indication on the jar.
   Note: Make sure that the blended baby food has the right consistency (e.g. no lumps) before you serve it.
   Note: If the baby food is still too solid add some flluid (e.g. water) until the baby food is soft and smooth. Do not exceed the maximum level indication on the jar.
   Note: Never steam baby food after you have blended it.
   Do not let the appliance blend for more than 30 seconds at a time. If you have not finished blending after 30 seconds, switch off the appliance and wait a few seconds before you continue. If the motor unit becomes hot, let it cool down for a few minutes before you continue.
   Make sure the baby food is at a safe temperature for your baby.
9. When you have finished blending, simply release the control knob. (Fig. 18), The knob automatically returns to the off position.
10. Remove the blended food from the jar. If necessary, use a spatula.
    Make sure that the baby food is at a safe temperature for your baby.
11. Unplug the appliance.

Ingredients and steaming times

* All food has to be cut in small cubes, no bigger than 2-3cm.

Cleaning and maintenance

Clean the appliance after every use.
Never immerse the motor unit in water.
Never use bleach or chemical sterilising solutions/tablets in the appliance.
Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol, acetone or alcohol to clean the appliance.

1. Unplug the appliance and remove the jar from the motor unit (Fig. 19).

2. Remove the lid from the jar and turn the lid upside down (Fig. 20).

3. remove the sieve and the valve from the lid. (Fig. 21)

4. Remove the blade unit from the jar (Fig. 22).

5. Clean the blade unit under the tap thoroughly, immediately after use. Make sure you also rinse the inside of the tube of the blade unit (Fig. 23).
   Handle the blade unit very carefully. The cutting edges are very sharp.
   Note: If you want to clean the blade unit more thoroughly, you can also place it in the dishwasher after you have rinsed it.

6. Clean the other parts that have come into contact with food in hot water with some washing-up liquid immediately after use.
   Note: All parts, except the motor unit, can also be cleaned in the dishwasher.
7. If necessary, clean the motor unit with a moist cloth.
8. Check if any food particles have entered the water tank. You can do this by looking into the filling opening to see if there are any food particles in it or by checking if the water has an unusual colour and by smelling if the water tank produces an unpleasant or a burnt smell. If this is the case, clean the water tank (see section 'Descaling the water tank' in this chapter).
9. Leave the lid of the filling opening open to prevent bacterial growth.

Descaling the water tank
If food particles enter the water tank, they may get stuck to the heating element in the water tank during the next steaming processes. These particles cannot be removed by just rinsing the water tank.
In addition, you have to descale the appliance every four weeks to ensure it continues to work 100% effectively. To reduce scale build-up, it is helpful to use pre-boiled or filtered water in the appliance.
To remove food particles inside the water tank and to descale the appliance, follow the descaling instructions below.

1. Make sure the appliance is switched off.
2. Add one sachet of citric acid (10g) to 200ml of warm water.
   Note: You can also use a solution of 150ml water and 50ml white vinegar (8% acetic acid).
3. Fill the water tank with the solution of citric acid (or vinegar) and water.
4. Close the lid of the filling opening.
5. Place the empty jar (without any food inside) fully assembled with blade unit and lid on the motor unit in steaming position (i.e. with the lid pointing downwards).
6. Turn the control knob to steaming position.
   • The steaming light lights up orange to indicate that the appliance is steaming.
7. Switch off the appliance after 5-6 min of steaming and unplug it.
8. Pour the used solution of citric acid (or vinegar) and water out of the water tank. (Fig. 24)

9. Rinse the water tank and the jar thoroughly with fresh water several times.
10. Fill the tank with 200ml water and let the appliance complete a steaming process of 20 minutes with the empty jar before you use the appliance with food again.
11. Leave the lid of the filling opening open to prevent bacterial growth.

Environment

• Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 25).


Storage

1. Empty the water tank before you store the appliance (Fig. 24).
2. Make sure all parts are clean and dry before you store the appliance (see chapter 'Cleaning').
3. Store the appliance with the blade unit in the jar to prevent damage.
4. Do not place the lid on the jar and leave the lid of the filling opening open to avoid bacterial growth.

Service

If you need service or information or if you have a problem, please visit the Philips AVENT website at www.philips.com/AVENT or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country.

Technical specifications

• Voltage/wattage: see type plate on the bottom of the appliance.
• Maximum capacity of water tank: 200ml.
• Maximum capacity of jar, solid ingredients: 800ml.
• Maximum capacity of jar, liquids: 450ml.
• Usage temperature: 10°C to 40°C
• Protection: temperature-controlled heating system and safety lock.

Important

Read this user manual carefully before you use the appliance and save it for future reference.

• Never immerse the motor unit in water or any other liquid, nor rinse it under the tap.

• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
• Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
• If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep the appliance out of the reach of children.
• Do not touch the blades, especially when the appliance is plugged in. The blades are very sharp.
• If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades.
• The appliance becomes very hot during steaming and may cause burns when touched. Only lift the jar by its handle.
• Beware of hot steam that comes out of the jar during steaming and when you remove its lid.
• Beware of hot steam that comes out of the filling opening of the water tank when you open its lid.
• When the steaming process is finished, hot steam continues to come out of the steam outlet on the motor unit and the steam hole in the lid of the jar for some time. Be careful when you lift the jar off the motor unit.

• If the appliance is used improperly, hot steam could come out of the filling opening. Consult the chapter 'Troubleshooting' in order to avoid or to resolve this.
• Never let the appliance operate unattended.

• Never use any accessories or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.
• Do not place the appliance on or near an operating or still hot stove or cooker.
• Always unplug the appliance before you assemble or disassemble any of the parts and before you clean it.
• Always unplug the appliance and let it cool down before you clean it.
• Never use the jar or any other part of the appliance in a microwave, as the metal parts of the jar handle and blade unit are not suitable for this use.
• Never sterilise the jar or any other part of the appliance in a steriliser or in a microwave, as the metal parts of the jar handle and blade unit are not suitable for this use.
• This appliance is intended for household use only. If the appliance is used improperly or for professional or semi-professional purposes or if it is not used according to the instructions in the user manual, the guarantee becomes invalid and Philips refuses any liability for damage caused.
• Place the appliance on a stable, horizontal and level surface. Make sure there is enough free space around it to prevent damage to e.g. cabinets or other objects, as the appliance emits hot steam during use.
• Do not use the appliance if it has fallen or is damaged in any way. Take it to an authorised Philips service centre for repair.
• Never use the steaming function without water.
• Make sure that you do not overfill the water tank (max. 200ml). Do not exceed the maximum level indicated on the measuring cup.
• When you steam ingredients, make sure that you do not overfill the jar. Make sure that the top edge of the green blade unit is not covered with food (Fig. 2).

• When you blend liquids, do not exceed the maximum level indicated on the jar (450ml).
• Do not lift and move the appliance while it is operating.
• Do not insert any object into the filling opening or the steam outlet.
• Never refill the water tank during the steaming process, as hot water and steam may come out of the appliance as a result.
• Always make sure that the lid has cooled down after steaming before you open it to add more ingredients for blending, if necessary.
• Never connect this appliance to a timer switch or remote control system in order to avoid a hazardous situation.
• Always check the temperature of the baby food on the back of your hand before you feed your baby.
• Always check the consistency of the baby food. Make sure there are no chunks in the food.
• When the steaming process (max. 20 minutes) is finished, do not steam or reheat the baby food again.
• Only use the spatula supplied to take the food out of the jar.
• Regular descaling prevents damage to the appliance.

Safety system
The appliance is equipped with a built-in safety lock. The appliance only functions if you have properly assembled all parts on the motor unit. If all parts are assembled correctly, the built-in safety lock will be unlocked.
The appliance is also equipped with overheat protection. Overheating could occur if the time between two steaming processes is too short, if the blending function is used too long or if there are too much ingredients in the jar. If the overheat protection switches off the appliance during use, set the control knob to 0 and let the appliance cool down for a few minutes. After this, you can use the appliance again.

Electromagnetic Fields (EMF)
This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
