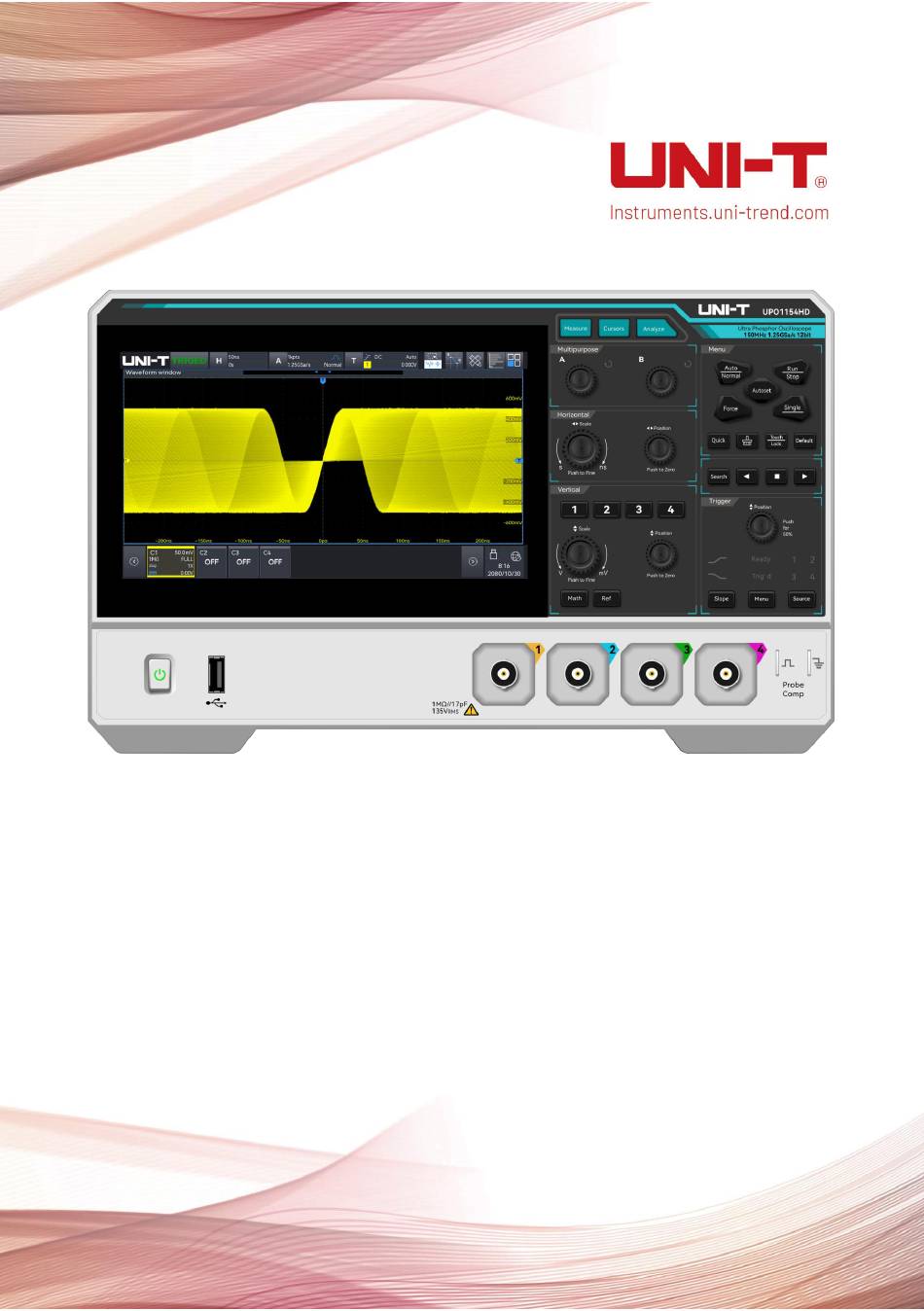

- Page 1 UPO1000HD Series High-Resolution Oscilloscopes Quick Start Guide This manual applies to model: UPO1000HD Series V1.0 April 2025...
-
Page 3: Limited Warranty And Liability
Limited Warranty and Liability UNI-T guarantees that the Instrument product is free from any defect in material and workmanship within three years from the purchase date. This warranty does not apply to damages caused by accident, negligence, misuse, modification, contamination, or improper handling. If you need a warranty service within the warranty period, please contact your seller directly. - Page 4 Quick Start Guide UPO1000HD Series 1. UPO1000HD Series Oscilloscopes UPO1000HD series digital oscilloscopes includes the following models. Analog channel Model Analog bandwidth number UPO1152HD 150MHz UPO1154HD 150MHz UPO1082HD 80MHz UPO1084HD 80MHz Instruments.uni-trend.com 4 / 24...
-
Page 5: General Inspection
(2) Check Accessories Please check appendix for the list of accessories. If any of the accessories are missing or damaged, please contact UNI-T or local distributors of this product. (3) Machine Inspection If the instrument appears to be damaged, not working properly, or has failed the functionality test, please contact UNI-T or local distributors of this product. - Page 6 Quick Start Guide UPO1000HD Series Supporting Feet Unfold the supporting feet Fold the supporting Feet (2) Connect to Power Supply The power requirements of the oscilloscope are DC, at least 12 V/3 A. Please use the power adaptor provided in the accessories to connect the oscilloscope to the AC power source (100 V - 240 V, 50 Hz - 60 Hz).
- Page 7 Quick Start Guide UPO1000HD Series terminal of compensating signal connection clip. The output of compensating signal connection clip: amplitude is approximately 3 Vpp, with a default frequency of 1 kHz. Probe compensating signal connection clip Ground terminal Probe Compensating Signal Connection Clip and Ground Terminal...
-
Page 8: Front Panel
Quick Start Guide UPO1000HD Series 2.3.Front Panel Front Panel Table 1 Button and Terminal on Front Panel Description Description Display area Shortcut keys and search navigation Measurement analysis area Vertical control area Probe compensating signal connection Multi-function area clip and ground terminal ①... -
Page 9: Rear Panel
Quick Start Guide UPO1000HD Series connectors to input a signal into the oscilloscope. 2.4. Rear Panel Rear Panel Table 2 Terminal on Rear Panel Description Description AUX Out USB Type-C Power Connector USB Device Safety lock LAN port Ground terminal 2.5.Operation Panel... - Page 10 Quick Start Guide UPO1000HD Series compare with the reference waveform. Scale ：Vertical scale rotary knob is used to adjust the vertical scale in the current channel. Turn clockwise to decrease the scale, turn counterclockwise to increase the scale. The...
- Page 11 Quick Start Guide UPO1000HD Series level, press this rotary knob to turn the trigger level to the trigger signal and quickly turn to 50%. When the trigger status is READY or TRIGED, the corresponding Ready or Trig’d indicator light in the trigger control area will illuminate.
- Page 12 Quick Start Guide UPO1000HD Series numerical parameters in a text box, the user can rotate this knob to shift the selected digit. (7) Shortcut key area Quick: Press the Quick key to quickly save the screen waveform as a PNG bitmap to the default or a custom image path.
-
Page 13: User Interface
Quick Start Guide UPO1000HD Series 2.6. User Interface Table 3 User Interface Description Description Waveform display window Volts/div signal bar Trigger state icon Multi-window display area Horizontal base label Ref label Sampling rate and memory FFT label depth label Trigger info label... - Page 14 Quick Start Guide UPO1000HD Series In each function menu popup, click on the help icon on the top right to open the relevant help menu. The help screen is divided into two parts, the left side is Help Options, and the right side is Help Display Area.
-
Page 15: Parameter Setting
Quick Start Guide UPO1000HD Series 3. Parameter Setting UPO1000HD series supports use the Multipurpose A (Multipurpose rotary knob) and touch screen to set the parameter. The setting steps as follows. (1) Multipurpose rotary knob For the parameter of time and voltage, once the parameter is selected, rotating the Multipurpose rotary knob on the front panel to enter the parameter value. - Page 16 Quick Start Guide UPO1000HD Series Keyboard name Input area Clear key Backspace key Tab key Enter key Caps key Shift key Arrow keys: left, right Space Key Virtual keyboard (3) Enter numeric value When setting or editing a parameter, use the numeric keyboard to enter the numeric value.
- Page 17 Quick Start Guide UPO1000HD Series Delete the entered parameter value. Set the parameter to the maximum or minimum value (sometimes specifically the maximum or minimum value for the current state). Set the parameter to the default value. Clear the parameter input field.
-
Page 18: Touch Screen
UPO1000HD Series 4. Touch Screen UPO1000HD series provides 7-inch super capacitive touch screen, multiple point touch control and gesture control. UPO1000HD has easily operating system with flexible and high-sensitive touch screen features for great waveform display and excellent user experience. - Page 19 Quick Start Guide UPO1000HD Series Drag Use one finger to press and drag the selected item to the aimed position as shown in the following figure. Drag gestures can be used: Drag the waveform to change the waveform position. ...
-
Page 20: Remote Control
Quick Start Guide UPO1000HD Series 5. Remote Control UPO1000HD series digital oscilloscopes can communicate with a PC via USB and LAN port for remote control. Remote control is implemented using SCPI (Standard Commands for Programmable Instruments). UPO1000HD series has three methods for remote control. -
Page 21: Troubleshooting
Restart the oscilloscope after completing the above steps. If the product still does not work properly, contact the UNI-T Service Center for assistance. (2) After signal acquisition, the waveform of the signal does not appear on the screen. - Page 22 Quick Start Guide UPO1000HD Series Check whether the trigger mode is set to Normal or Single and verify if the trigger level exceeds the waveform range. If the trigger mode is normal or single and the trigger level is in the center, set the trigger mode to Auto.
