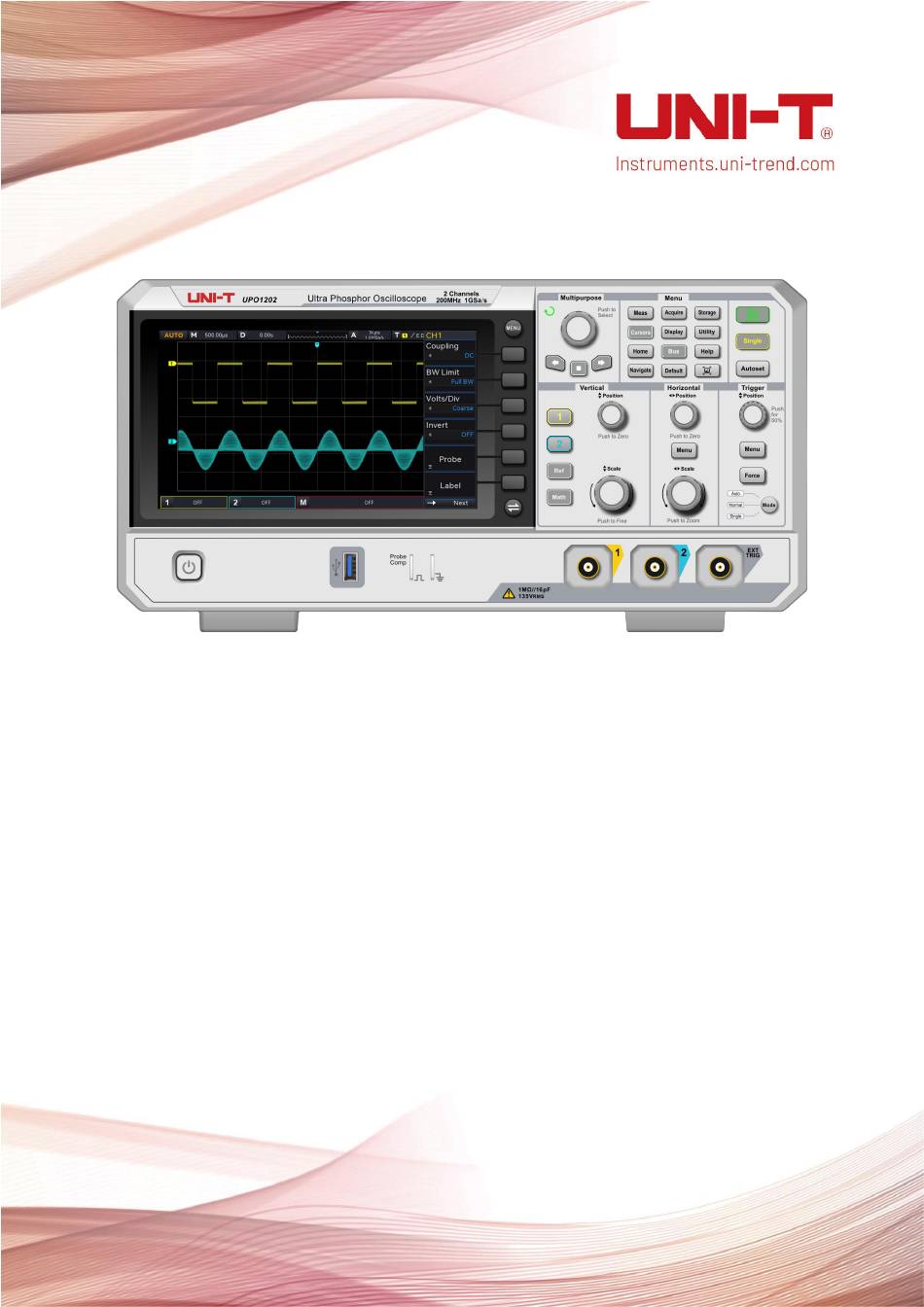

- Page 1 Quick Guide UPO1002X Series Digital Phosphor Oscilloscope Quick Guide UPO1002 Series Digital Phosphor Oscilloscope REV 0 2023.12 Instruments.uni-trend.com 1 / 21...
-
Page 2: Warranty
UNI-T, pay the shipping cost, and provide a copy of the purchase receipt of the original purchaser. If the product is shipped domestically to the location of the UNI-T service center, UNI-T shall pay the return shipping fee. -
Page 3: File Number
This warranty is written by UNI-T for this product, and it is used to substitute any other express or implied warranties. UNI-T and its distributors do not offer any implied warranties for merchant ability or applicability purposes. -
Page 4: Safety Requirements
Users must follow the following conventional safety precautions in operation, service and maintenance of this device. UNI-T will not be liable for any personal safety and property loss caused by the user’s failure to follow the Warning following safety precautions. -
Page 5: Safety Sign
Quick Guide UPO1002 Series Digital Phosphor Oscilloscope Safety Sign It indicates possible danger of electric shock, which may cause Danger personal injury or death. It indicates that you should be careful to avoid personal injury or Warning product damage. It indicates possible danger, which may cause damage to this... - Page 6 Quick Guide UPO1002 Series Digital Phosphor Oscilloscope Primary circuit of large equipment directly connected to the distribution board and circuit between the distribution board and the socket (three-phase distributor circuit includes a single commercial lighting circuit). Fixed CAT III equipment, such as multi-phase motor and multi-phase fuse box; lighting equipment and lines inside large buildings;...
- Page 7 Please use power fuse of specified specification. If the fuse needs to be Power fuse replaced, it must be replaced with another one that meets the specified specifications by the maintenance personnel authorized by UNI-T. There are no components available to operators inside. Do not remove the Disassembly protective cover.
-
Page 8: Proper Ventilation
If this device may be faulty, please contact the authorized maintenance Abnormality personnel of UNI-T for testing. Any maintenance, adjustment or parts replacement must be done by the relevant personnel of UNI-T. Do not block the ventilation holes at the side and back of this device;... -
Page 9: Connecting Power Supply
Quick Guide UPO1002 Series Digital Phosphor Oscilloscope In operating, humidity temperature below to +35℃, ≤90％ relative humidity; In non-operating, humidity temperature +35℃ to +40℃, ≤60％ relative humidity There are ventilation opening on the rear panel and side panel of the instrument. So please keep the air flowing through the vents of the instrument housing. - Page 10 100 MHZ 1 GSa/s UPO1002 series digital phosphor oscilloscope adopts innovative UNI-T 3D technique Ultra Phosphor 2.0 with new appearance upgrade and the function of deep storage, high waveform capture rate, real-time waveform recording and playback and 256-level grayscale display.
-
Page 11: General Inspection
To perform a quick verification of the instrument’s normal operations, please follow the steps below. (1) Connecting to the Power Supply AC power specification of UPO1002 series digital storage oscilloscope refers to the section of . Use the assembled power line or other power line that meets the local Connecting Power Supply country standards to connect the oscilloscope. - Page 12 Quick Guide UPO1002 Series Digital Phosphor Oscilloscope switch key to enable the oscilloscope. Boot Check Press the soft power key and the indicator should change from red to green. The oscilloscope will show a boot animation, and then enter the normal interface.
- Page 13 Quick Guide UPO1002 Series Digital Phosphor Oscilloscope Excessive Compensation Correct Compensation Insufficient Compensation Figure 2 Calibrating Probe Compensation If the displayed waveform is look like the above “Insufficient Compensation” or “Excessive Compensation”, use a non-metallic screwdriver to adjust the probe’s variable capacitance until the display matches the “Correct compensation”...
-
Page 14: Front Panel
Quick Guide UPO1002 Series Digital Phosphor Oscilloscope 4. Front Panel ○ Figure 3 Front Panel Table 1 Function Key of Front Panel Function Key Function Key Horizontal control area Screen display area (HORIZONTAL) Multipurpose rotary knob Analog channel input port... -
Page 15: Rear Panel
Quick Guide UPO1002 Series Digital Phosphor Oscilloscope 5. Rear Panel Figure 4 Rear Panel Table 2 Description of Rear Panel Description Description AUX Out (output port) Safety Lock AC Power Input Socket refer to Connecting Power Supply USB Device 15 / 21... -
Page 16: User Interface
Quick Guide UPO1002 Series Digital Phosphor Oscilloscope 6. User Interface Figure 5 User Interface Table 3 Icon on User Interface Description Description Operating state Operating menu Next page/System time /USB Horizontal time base icon /LAN icon Horizontal offset Math vertical state icon... - Page 17 Quick Guide UPO1002X Series Digital Phosphor Oscilloscope 7. Menu Symbol Press any soft key to activate the corresponding menu, the following symbol may display in the menu. This symbol represents use the multipurpose rotary knob on the front panel to select the parameter and adjust the parameter value.
-
Page 18: Remote Control
Quick Guide UPO1002 Series Digital Phosphor Oscilloscope 8. Remote Control UPO1002 series digital phosphor oscilloscope supports communication with computer via USB and LAN interfaces to realize remote control. The remote control is realized based on SCPI (Standard Commands for Programmable Instruments). -
Page 19: Troubleshooting
After completing the above steps, restart the oscilloscope. If the product still does not work properly, contact the UNI-T service center for assistance. After signal acquisition, the waveform of the signal does not appear in picture. - Page 20 Quick Guide UPO1002 Series Digital Phosphor Oscilloscope The above settings can be completed automatically by pressing the AUTO key. (6) Waveform refresh is very slow. Check whether the acquisition method is average and the average times are large. Check whether the storage depth is the maximum.
- Page 21 Service support: 8am to 5.30pm (UTC+8), Monday to Friday or via email. Our email address is infosh@uni-trend.com.cn For product support outside mainland China, please contact your local UNI-T distributor or sales center. Many UNI-T products have the option of extending the warranty and calibration period, please contact your local UNI-T dealer or sales center.
