Mod® Electronics
Deluge
Distortion
- for Hammond 1590N1, 125B, Gorva C65
The Deluge uses a classic distortion arrangement with a dual op-amp used for gain and
silicon diodes for hard-clipping. The Deluge is voiced for a more amp-like distortion character
targeting the sound of Marshall Plexi-style amplifiers.

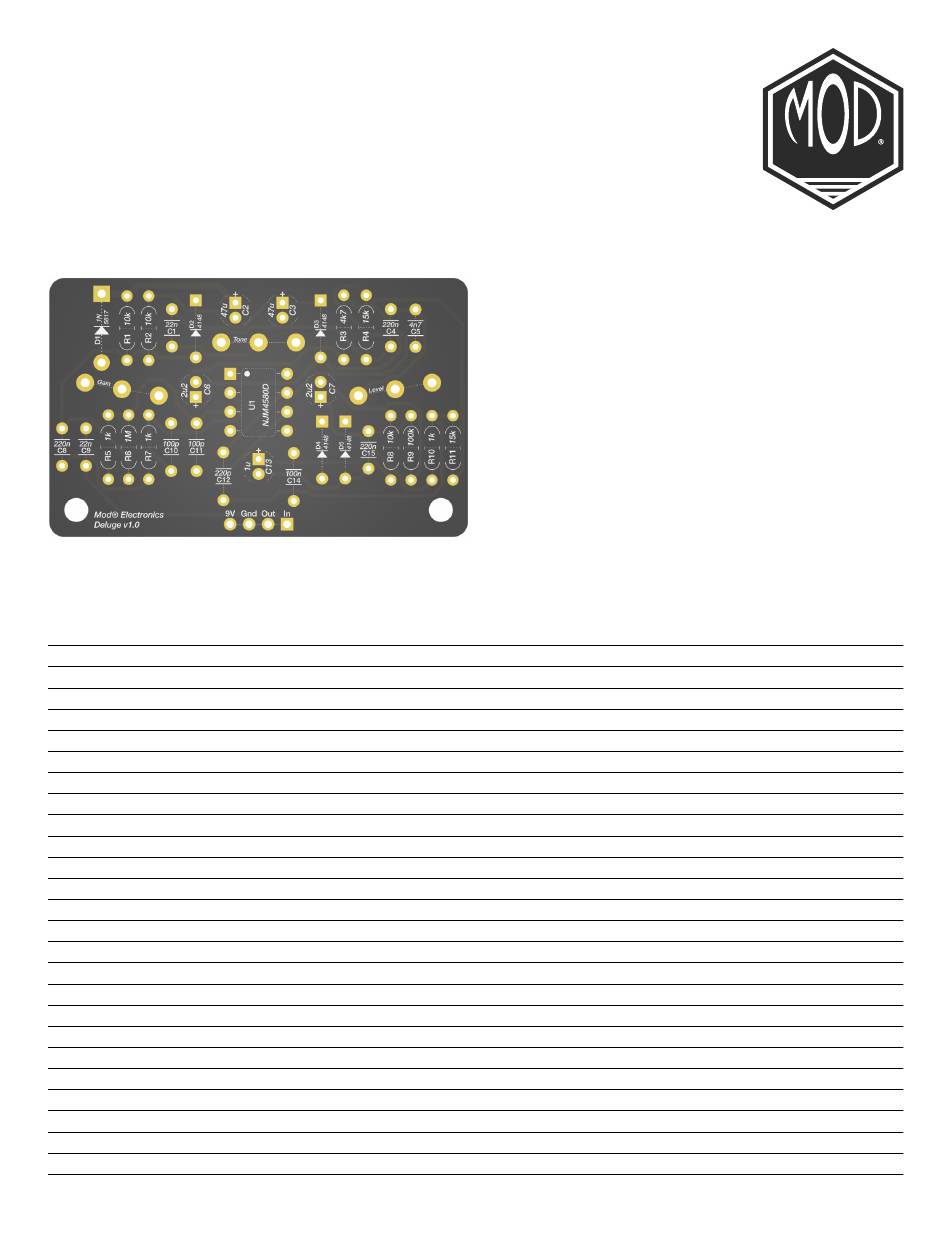

Bill of Materials:
Reference Value
C1
22n
C2
47u
C3
47u
C4
220n
C5
4n7
C6
2u2
C7
2u2
C8
220n
C9
22n
C10
100p
C11
100p
C12
220p
C13
1u
C14
100n
C15
220n
D1
1n5817
D2
1n4148
D3
1n4148
D4
1n4148
D5
1n4148
R1
10k
R2
10k
R3
4k7
R4
15k
R5
1k
R6
1M
Copyright 2025 Mod
Electronics
®
Package Type
Box film capacitor, 7.2 x 2.5mm
Polarized electrolytic capacitor, 5mm
Polarized electrolytic capacitor, 5mm
Box film capacitor, 7.2 x 2.5mm
Box film capacitor, 7.2 x 2.5mm
Polarized electrolytic capacitor, 5mm
Polarized electrolytic capacitor, 5mm
Box film capacitor, 7.2 x 2.5mm
Box film capacitor, 7.2 x 2.5mm
Ceramic disc capacitor
Ceramic disc capacitor
Ceramic disc capacitor
Polarized electrolytic capacitor, 5mm
Box film capacitor, 7.2 x 2.5mm
Box film capacitor, 7.2 x 2.5mm
Schottky diode, DO-204AL
Silicon diode, DO-35
Silicon diode, DO-35
Silicon diode, DO-35
Silicon diode, DO-35
Vishay PR01 or generic 1/4W resistor
Vishay PR01 or generic 1/4W resistor
Vishay PR01 or generic 1/4W resistor
Vishay PR01 or generic 1/4W resistor
Vishay PR01 or generic 1/4W resistor
Vishay PR01 or generic 1/4W resistor
The Deluge is based on the design of the
Noah's Ark Distortion 'M'. In addition to the
standard volume and gain controls, there is also
a set low-pass filter on the output with
adjustable intensity via the "Tone" control. The
Deluge operates on standard 9V power with a
low current draw.
Controls:
• LEVEL
• GAIN
• TONE
SKU
C-R82-22N
C-ETR47-25
C-ETR47-25
C-R82-220N
C-R82-4N7
C-ETR2D2-50
C-ETR2D2-50
C-R82-220N
C-R82-22N
C-DS100P-500
C-DS100P-500
C-CD220-500
C-ETR1-50
C-D100N-50
C-R82-220N
P-Q1N5817
P-Q971
P-Q971
P-Q971
P-Q971
R-PR01-10K
R-PR01-10K
R-PR01-4D7K
R-PR01-15K
R-PR01-1K
R-PR01-1M
1 of 7
Electronics
Notes
www.ModElectronics.com
Advertisement
Related Manuals for Mod Deluge
Summary of Contents for Mod Deluge
- Page 1 Distortion - for Hammond 1590N1, 125B, Gorva C65 The Deluge uses a classic distortion arrangement with a dual op-amp used for gain and silicon diodes for hard-clipping. The Deluge is voiced for a more amp-like distortion character targeting the sound of Marshall Plexi-style amplifiers.
- Page 2 Offboard 3PDT Footswitch Soft-click 3PDT footswitch P-H501-L Not on board Offboard 3PDT Daughterboard 3PDT footswitch breakout board P-PC-3PDT-BOARD Not on board Board Mod® Deluge PCB Printed circuit board P-PC-DIST-MOD1-B Circuit board Enclosure White 1590N1 Enclosure P-H1590N1CE-W Knobs Cliff gold K5...
- Page 3 Schematic Copyright 2025 Mod Electronics 4 of 7 www.ModElectronics.com Copyright 2025 Mod Electronics 5 of 7 www.ModElectronics.com ® ®...
- Page 4 If printing this page to mark the drill locations on your enclosure, please ensure that you print it at 100% scale and do not use a “Fit to page” option. 100% scale and do not use a “Fit to page” option. Copyright 2025 Mod Electronics 6 of 7 www.ModElectronics.com...
