Vivo STAND-V001UVM Assembly Manual

Vivo STAND-V001UVM Assembly Manual

Single monitor desk mount
Hide thumbs Also See for STAND-V001UVM:

Advertisement

Table of Contents

Single Monitor
Desk Mount
STAND-V001UVM
Assembly Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V001UVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo STAND-V001UVM

Summary of Contents for Vivo STAND-V001UVM

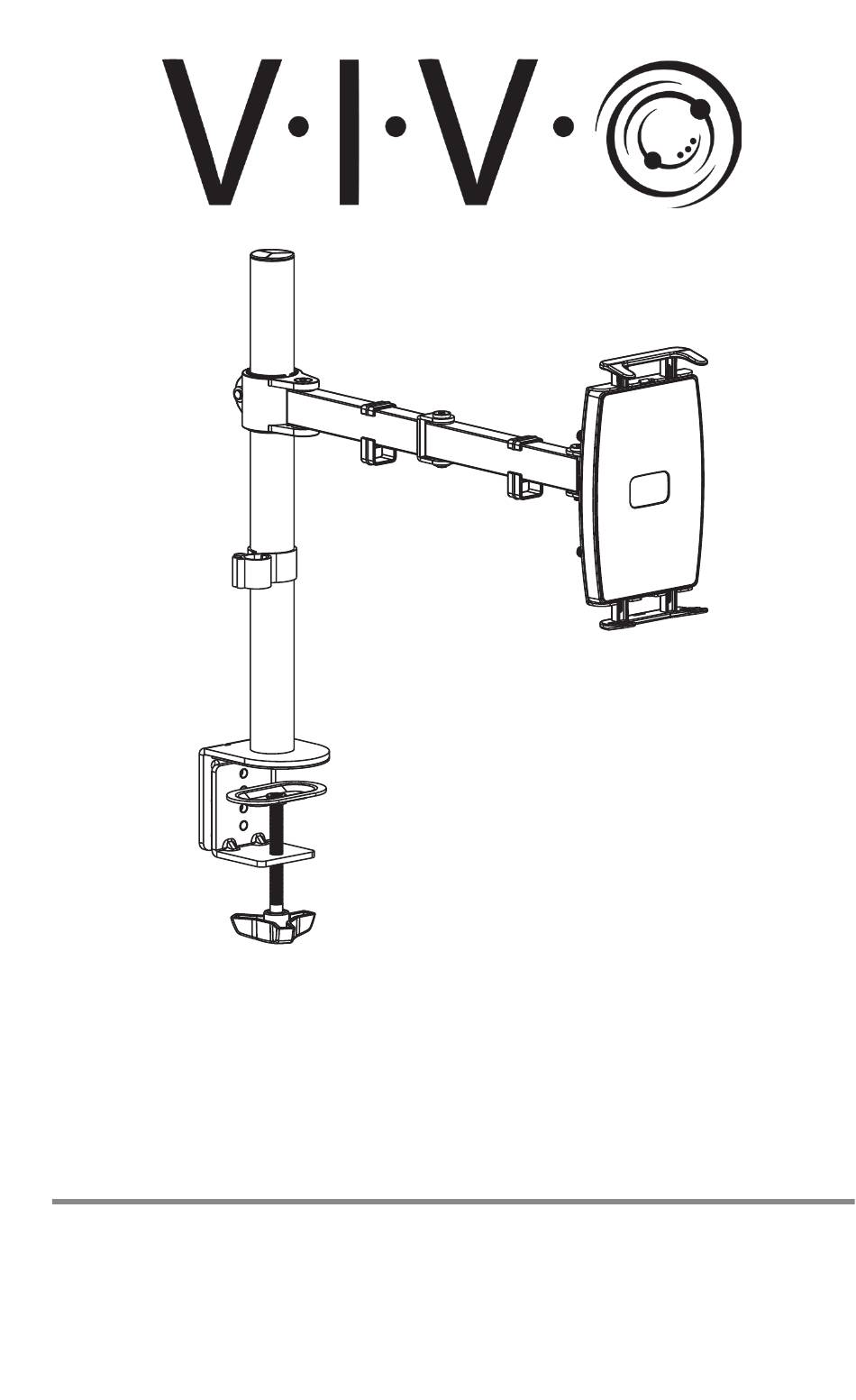

  • Page 1 Single Monitor Desk Mount STAND-V001UVM Assembly Manual...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.

  • Page 3: Package Contents

    Package Contents A (x1) B (x1) C (x1) D (x1) Pole Clamp Swivel Arm VESA Plate E (x1) F (x1) G (x1) H (x1) Pole Cap Grommet Plate Soft Pad Adapter I (x2) J (x1) Cable Clip Pole Cable Clip Included Hardware &...

  • Page 4: Assembly Steps

    Assembly Steps STEP 1 - Option 1 - Clamp Assembly Desktop Thickness: 0.40”-3.34”(10mm-85mm) Loosen the Clamp Knob (B1) on Clamp (B) to fully open it. Attach Clamp to Pole (A) using M6x16mm Screws (S-A), and tighten with the 3mm Allen Wrench (T-A). Mount Assembly to Desktop.
  • Page 5 - Option 2 - Grommet Assembly Desktop Thickness: 0.40”-2.95”(10mm-75mm) Disassemble Clamp (B) into its individual components. Using a Phillips screwdriver, remove the Clamp Plate (B2), then remove the Knob (B1). Thread the Knob through the Clamp Plate.
  • Page 6 - Option 2 - Grommet Assembly - Cont’d Install the Grommet Plate (F) to the Pole (A) using M6x16mm Screws (S-A) and the 3mm Allen Wrench (T-A). Attach the Soft Pad (G) to the bottom of the Grommet Plate. Place the Pole (A) onto the mounting surface, then secure it by attaching the Clamp Plate (B2) and tightening with the Knob (B1).
  • Page 7 STEP 2 Slide Cable Clip (J) and Swivel Arm (C) onto the Pole (A). Adjust the Swivel Arm to your desired height, then tighten it using the 5mm Allen Wrench (T-B). Insert the Pole Cap (E) into the top of the Pole.
  • Page 8 STEP 3 Attach Cable Clips (I) to each segment of the Swivel Arm (C) to manage and secure the cables.
  • Page 9 STEP 4 With the adjustment screw holes facing upward, mount the Adapter (H) to the VESA Plate (D) using M4x16mm Thumbscrews (S-C) and M4 Washers (S-D). Tighten with a Phillips screwdriver.
  • Page 10 STEP 5 Push the tablet down onto the With the spring compressed, ensure the spring-loaded tabs on the Adapter (H). tablet sits straight up against the face of This compresses the tabs to make room the Adapter. Confirm it’s centered visually. for proper positioning.
  • Page 11 To remove the device, hold it securely on both sides and push down to compress the tabs. Tilt the device slightly and lift it out of the adapter.
  • Page 12 STEP 6 Slide the VESA Plate (D) — with the adapter and tablet attached — onto the head of the Swivel Arm (C). Secure it by installing the M6 Security Nut (S-B).
  • Page 13 STEP 7 Manage cables using Arm Cable Clips (I) and Pole Cable Clip (J).

  • Page 14: Monitor Mounting

    ** Optional ** Monitor Mounting Attach VESA Plate (D) to monitor using Thumbscrews (M-A) or M4x30mm Screws (M-B) and a Phillips screwdriver. Spacers (M-C) can be used if needed. Ensure the Tab is on top.
  • Page 15 Slide monitor with VESA Plate (D) onto Arm (C) and secure using M6 Nut (S-B). Manage cables using Arm Cable Clips (H) and Pole Cable Clip (I).
  • Page 16 Adjustments Adjust the vertical tilt using 5mm Allen Wrench (T-B). Tilt...
  • Page 17 Adjust as desired. Sway Swivel...
  • Page 18 Better Products for a Better Workspace Experience We are dedicated to creating high-end ergonomic solutions for the office with top of the industry support. Explore Endless Workspace Solutions www.vivo-us.com...
  • Page 19 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
  • Page 20 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
