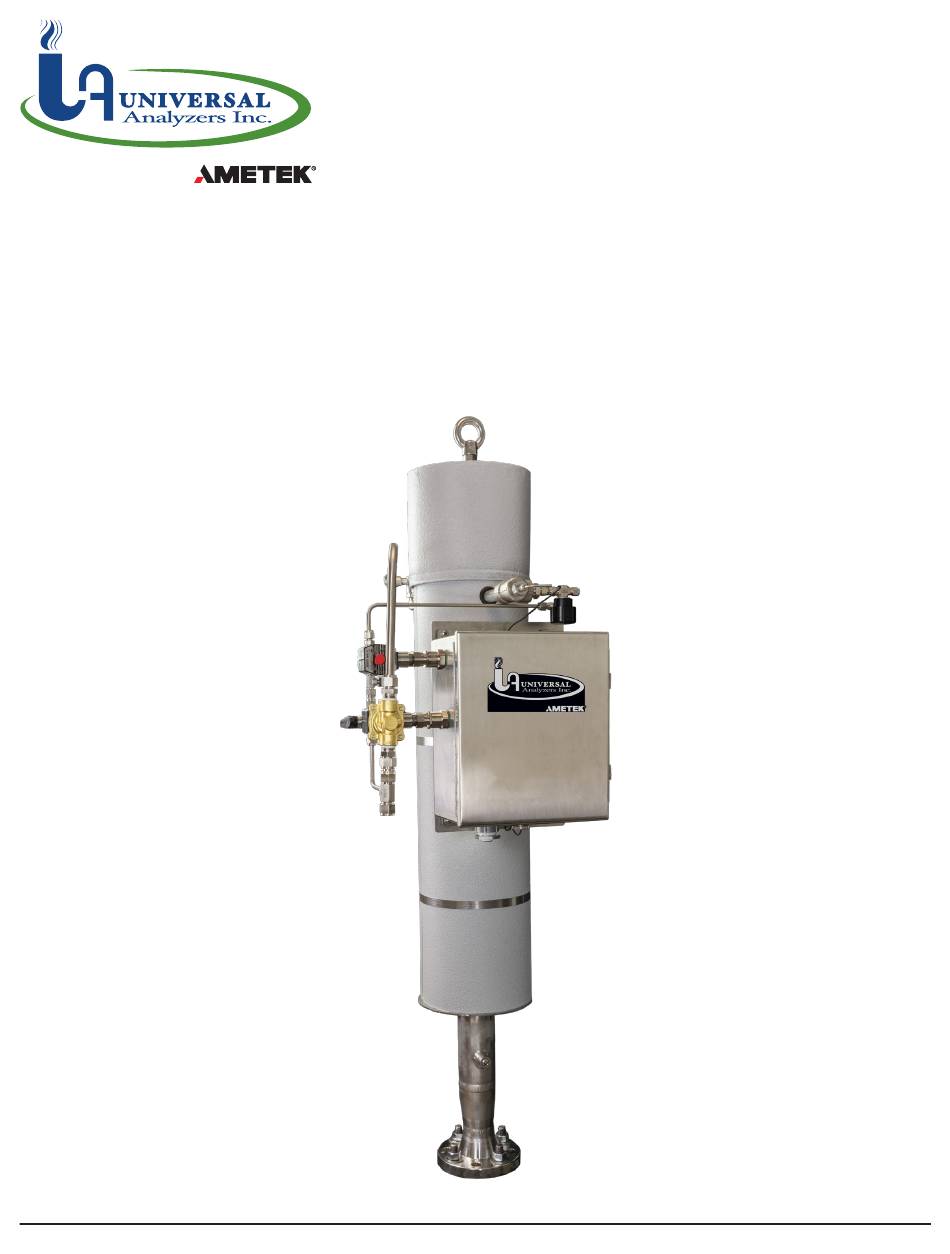

- Page 1 Instruction Manual Model 1221EX Distillation Sample Probe 5200 Convair Drive Carson City, NV 89706 Phone: +1 775 883 2500 • www.UniversalAnalyzers.com...
-
Page 2: Table Of Contents
Instruction Manual 1221EX Distillation Sample Probe Table of Contents 1.0 Notice 2.0 Receiving and Storage 3.0 Definition of Symbols 4.0 Theory of Operation 5.0 Specifications 6.0 Installation 6.1 Utilities 6.2 Entries 6.3 Connections 7.0 Cautions and Warnings 8.0 Certifications and Compliance 8.1 Hazardous Locations Certifications 8.2 CE Directive Compliance 8.3 Additional Compliance Information... -
Page 3: Notice
Instruction Manual 1221EX Distillation Sample Probe 1.0 Notice This equipment is designed for industrial analytical applications. Installation requirements may vary depending on site conditions. The installer should consult national, local, and plant construction codes to ensure that governing regulations are met. When installing electronic control equipment, as a minimum, general installation precautions should be observed: •... -
Page 4: Definition Of Symbols
Instruction Manual 1221EX Distillation Sample Probe 3.0 Definition of Symbols CAUTION, RISK OF DANGER SYMBOL INDICATES INJURY MAY OCCUR IF MANUFACTURER’S INSTRUCTIONS ARE NOT ADHERED TO. PLEASE READ MANUAL CAREFULLY WHEN SYMBOL IS DISPLAYED CAUTION, HOT SURFACE SYMBOL INDICATES EXPOSED SURFACE TEMPERATURE CAN CAUSE BURNS OR PERSONAL INJURY. -
Page 5: Theory Of Operation
Instruction Manual 1221EX Distillation Sample Probe 4.0 Theory of Operation All ethylene production facilities will employ some type of cracking furnace, which is used to convert saturated hydrocarbons found in the feed stock into unsaturated hydrocarbons or olefins, which are the basic building blocks used in a variety of chemicals produced downstream of the olefins plant. - Page 6 Instruction Manual 1221EX Distillation Sample Probe The Model 1221EX Distillation Probe utilizes a counter current flow technique for cooling of the sample. Cooling medium flows in opposite direction of the process gas on the outside of the distillation column. Heat is conducted through the column wall and then transferred to the cooling medium.
- Page 7 Instruction Manual 1221EX Distillation Sample Probe Various Separator Discs When the sample gas enters the first stage of the probe, the gas and separator will be at its highest operating temperature. This is due to the counter current flow design of the sample (upwards) vs. the flow of the cooling medium (downwards).
-
Page 8: Specifications
Instruction Manual 1221EX Distillation Sample Probe 5.0 Specifications Input Power Voltage 100-230 VAC Frequency 50/60 Hz Power 24 W Instrument Air Supply Max air pressure 115 psig (790 kPa) Dew point ≤ -40°F/°C Air usage - single vortex Up to 40 SCFM (1.1 nm /min) Air usage - dual vortex Up to 80 SCFM (136 m... -
Page 9: Installation
Instruction Manual 1221EX Distillation Sample Probe 6.0 Installation Proper installation of the Model 1221EX Distillation Probe will ensure optimmum performance for the equipment and the analytical measurement technique of choice. For the best performance, the probe should be mounted on a horizontal process line with an isolation valve located between the process and the probe. -
Page 10: Utilities
Instruction Manual 1221EX Distillation Sample Probe 6.1 Utilities The controller is powered by 115 VAC or 230 VAC at 50 or 60 Hz. The alarm output is a dry contact rated for up to 250 V and 6 A. Vortex tube requirements: •... -
Page 11: Connections
Instruction Manual 1221EX Distillation Sample Probe 6.3 Connections Connect instrument air as specified above to the instrument air inlet on the Universal Analyzers CTRL-I/C controller. The inlet is 1/2” tube, but adapters may be used as needed to match the size of the air supply line. See above for recommended sizes of air supply lines. -
Page 12: Certifications And Compliance
Instruction Manual 1221EX Distillation Sample Probe 8.0 Certifications and Compliance 8.1 Hazardous Location Certifications ATEX Zone 2 Group IIC II 3 G Ex 60079-46 IIC T4 Gc Ta = -40 to 55C (models -CA & -CM) Ta = -20 to 55C (models -IA & -IM) Certificate Number: LC25ATEX15365-2X Standards: EN IEC 60079-0:2018... -
Page 13: Ce Directive Compliance
Instruction Manual 1221EX Distillation Sample Probe 8.2 EU Directive Compliance Electromagnetic compatibility Directive 2014/30/EU EMC Emissions EN IEC 61326-1 A:2013 Group 1 Class A EN IEC 61000-3-2:2014 EN IEC 61000-3-3:2013 EMC Immunity EN IEC 61326-1 A:2013 Group 1 Class A EN IEC 61000-4-2:2008 EN IEC 61000-4-3:2006+A1+A2 EN IEC 61000-4-4:2004+A1... -
Page 14: Probe Controller
Instruction Manual 1221EX Distillation Sample Probe 9.0 Probe Controller The Model 1221EX Distillation Probe’s primary function is to cool the sample gas to a specified temperature. The sample setpoint determines the average temperature of the sample gas and is programmed in degrees Celsius. Basic operation is to enable cooling when the gas temperature is above the desired setpoint and disable cooling when it drops below the setpoint. -
Page 15: Electronic Controller Layout
Instruction Manual 1221EX Distillation Sample Probe 9.2 Electronic Controller Layout The electronic controller is available in versions with and without an automatic sample shutoff in addition to the two temperature range options. All versions have a manual sample shut off via the ball valve. The general layout is largely the same across all four versions with the automatic sample shutoff versions including an additional 3-way solenoid valve mounted to the top left of the enclosure. - Page 16 Instruction Manual 1221EX Distillation Sample Probe DISPLAY/CONTROLLER (DC) BRACKET P/N 5008-1400 CABLE CLAMP P/N 4000-0001 Typical controller with automatic sample shutoff - Front view (Door Removed) Page 16 of 30...
-
Page 17: Hmi Display And Operation
Instruction Manual 1221EX Distillation Sample Probe 9.3 HMI Display and Operation The Precision Digital PD6606-L2N process meter provides local control and a display and is located inside the enclosure. The screen shown below is the main screen that shows the current sample temperature and status indicators. Four buttons allow users to configure the process meter. -
Page 18: Status Display
Instruction Manual 1221EX Distillation Sample Probe 9.4 Status Display The alarm indicator will appear when either the sample temperature alarm setpoint or the isolation temperature alarm setpoint is exceeded. The alarm will automatically reset once the alarm condition has been cleared by dropping below the reset point. - Page 19 Instruction Manual 1221EX Distillation Sample Probe RELAY MENU SETUP SETUP SETUP SETUP INPUT OUTPUT ADVANCED DISPLAY ENTER ENTER ENTER ENTER MENU MENU MENU MENU SCALE OPEN DSPLY UNITS COLLECTR PV SETUP UNITS SCALE DSPLY INPUT 1 RELAY CUTOFF DEC.PT SCALE DSPLY DISP 4-20 mA...
-
Page 20: Sample Isolation Valve Manual Operation Screen
Instruction Manual 1221EX Distillation Sample Probe 9.6 Sample Isolation Valve Manual Operation Screen The sample isolation valve (AV1) is a normally closed pneumatic valve which requires instrument air from the ball valve (BV1) to open and allow sample to flow. Controllers with automatic sample shutoff also require an energized sample shutoff solenoid (SV2) to allow instrument air to reach the sample isolation valve. -
Page 21: Sample Temperature Setpoints Screen
Instruction Manual 1221EX Distillation Sample Probe 9.7 Sample Temperature Setpoints Screen The Model 1221EX Distillation Probe’s primary task is to cool sample gas to a desired temperature. This is accomplished by turning on and off RELAY OUTPUT 1 which enables and disables vortex cooling of the distillation column. This on/off control is configured by selecting a sample temperature ALARM SET point at which RELAY OUTPUT 1 will turn on, and an ALARM RESET point that it will turn off. -
Page 22: Sample Isolation Setpoints
Instruction Manual 1221EX Distillation Sample Probe A lag always exists between cooling cycle operation and sample temperature response. This can vary based on process gas temperatures, ambient humidity and temperatures, and process gas flow rates. This is also due to the material mass of the probe, properties of the process gases, and inlet temperature of the coolant medium. -
Page 23: Temperature Units
Instruction Manual 1221EX Distillation Sample Probe Sample Isolation Setpoints Delay off Delay on Isolation Setpoint Sample Temp Setpoint Isolation Reset Point Sample Isolation Valve Open Sample Isolation Valve Closed Time Cooling Enabled Cooling disabled Relay 1 Alarm Setpoint Relay 2 Alarm Setpoint Relay 2 Alarm Reset Point Sample Output State 9.9 Temperature Units... -
Page 24: Password Protection
Instruction Manual 1221EX Distillation Sample Probe 9.10 Password Protection Users can password-protect the process meter to prevent unauthorized access to the programmed parameters. To set a password navigate to the PASSWORD sub-menu in the Advanced Setup menu and enter a five-digit password. When password protection is enabled the lock icon will appear in the bottom right corner. -
Page 25: Default Parameters
Instruction Manual 1221EX Distillation Sample Probe 9.11 Default Parameters -- Input -- -- Display -- input 4-20 mA top display PV+UNIT total disable lower display PV1 function linear custom tag PV1 units family temp tag time 2 sec PV1 units units time 2 sec PV1 scale points... -
Page 26: Start-Up
Instruction Manual 1221EX Distillation Sample Probe 10.0 Start-Up This procedure should be followed when starting up a Model 1221EX Distillation Probe with vortex cooling. Proper startup procedures can take anywhere from 2 to 6 hours under normal conditions. Initialization times may vary depending on ambient conditions, process composition and temperature, and cooling medium quality. -
Page 27: Maintenance
Instruction Manual 1221EX Distillation Sample Probe UNIVERSAL ANALYZERS 11.0 Maintenance It is recommended that each probe be installed with a gate valve to isolate from process for all maintenance activities. Gate Valve PROCESS PIPE The coalescing separator is designed to condense and wash the heavy components in the sample back into the process along with any deposited solids avoiding the regular ‘plugging’... -
Page 28: Troubleshooting
Instruction Manual 1221EX Distillation Sample Probe 12.0 Troubleshooting • Ensure that vortex cooled probes are supplied with 40 SCFM (68 Sm /h) air at 80-100 psig (550-690 kPa). Measurements to ensure this should be made at the probe, not at the supply header. Consider loss in pressure due to supply lines which may be inadequately sized diametrically and/or too long. -
Page 29: Drawings And Spare Parts
Instruction Manual 1221EX Distillation Sample Probe 13.0 Drawings and Spare Parts For the current revision of all Model 1221EX drawings and spare parts, visit the Universal Analyzers website. https://www.universalanalyzers.com/ Navigate to: Products > Gas Sample Probes > Model 1221/1221EX Links to all current drawings and spare parts for standard probe configurations are provided at the bottom of the page. 14.0 Environmental Information (WEEE) The 1221EX series of products contain electrical and electronic equipment (EEE) along with materials that can be reclaimed and recycled. - Page 30 Universal Analyzers is a leading supplier of gas sample extraction, transport and conditioning systems for CEM (Continuous Emissions Monitoring) and process measurement. It is a wholly owned subsidiary of AMETEK. AMETEK has a global workforce of 18,500, with 150 operating locations in 30 countries and 175 brands.
