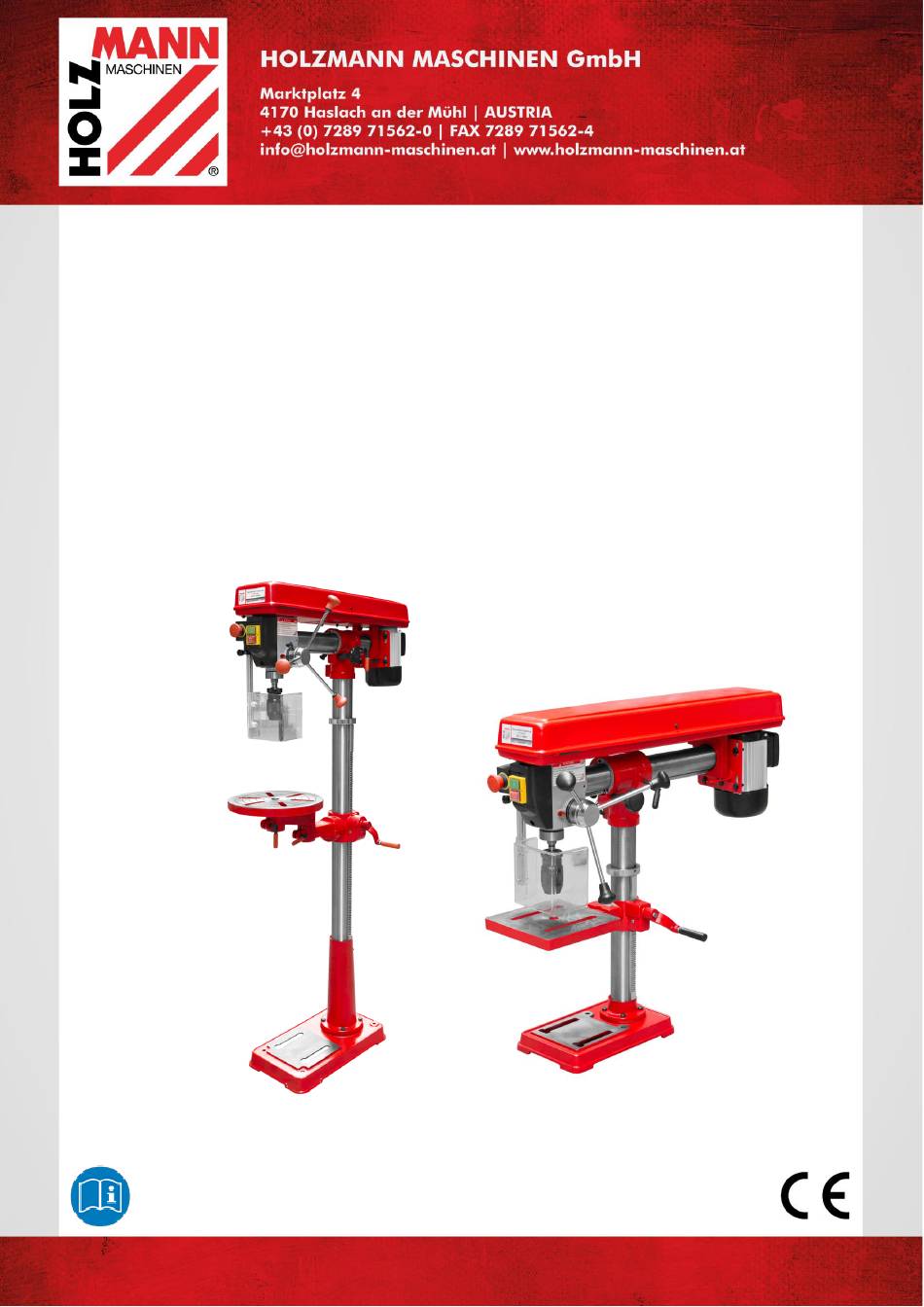

Originalfassung
DE
BETRIEBSANLEITUNG
Übersetzung / Translation
EN
USER MANUAL
ES
MANUAL DE INSTRUCCIONES
FR
MODE D´EMPLOI
IT
ISTRUZIONI PER L'USO
NL
GEBRUIKSAANWIJZING
RO
INSTRUCȚIUNI DE OPERARE
SE
BRUKSANVISNING
SB
3116RHN /
Edition: 10.11.2017 – Revision - 01 – CEC - DE/EN/ES/FR/IT/NL/RO/SE
STÄNDERBOHRMASCHINE
DRILL PRESS
TALADRO DE COLUMNA
PERCEUSE RADIALE SUR COLONNE
TRAPANO A COLONNA
KOLOMBOORMACHINE
MAȘINĂ DE GĂURIT CU COLOANĂ
STATIVBORRMASKIN
SB
3116RMN
Advertisement
Table of Contents
Related Manuals for HOLZMANN MASCHINEN SB 3116RHN
Summary of Contents for HOLZMANN MASCHINEN SB 3116RHN
- Page 1 Originalfassung BETRIEBSANLEITUNG STÄNDERBOHRMASCHINE Übersetzung / Translation USER MANUAL DRILL PRESS MANUAL DE INSTRUCCIONES TALADRO DE COLUMNA MODE D´EMPLOI PERCEUSE RADIALE SUR COLONNE ISTRUZIONI PER L'USO TRAPANO A COLONNA GEBRUIKSAANWIJZING KOLOMBOORMACHINE INSTRUCȚIUNI DE OPERARE MAȘINĂ DE GĂURIT CU COLOANĂ BRUKSANVISNING STATIVBORRMASKIN 3116RHN / 3116RMN Edition: 10.11.2017 –...
-
Page 2: Dear Customer
Dear Customer! This manual contains information and important instructions for the installation and correct use of the drill press SB 3116RHN / SB 3116RMN. Following the usual commercial name of the device (see cover) is substituted in this manual with the name "machine". - Page 3 SB 3116RHN pulley cover table bracket motor clamping lever clamping lever for radial adjustment table clamping lever drill chuck column feed lever rack scale ring handle On-Off- switch and emergency stop base HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN...
- Page 4 SB 3116RMN SB 3116RHN pulley cover base motor table bracket clamping lever for radial adjustment table clamping lever drill chuck column feed lever rack scale ring handle On-Off- switch and emergency stop HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN...
-
Page 5: Technical Details
220 x 220mm base 275 x 490mm 310 x 350mm motor power S1(100%)/S6 S1(100%)/S6 600W/900W 600W/900W total height 1640mm 805mm net weight 58kg 40kg 10.3 Delivery content 10.3.1 SB 3116RHN 10.3.2 SB 3116RMN HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN... -
Page 6: Intended Use
The unattended operation on the machine during the working process is forbidden! It is not allowed to leave the immediate work area during the work is being performed. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN... -
Page 7: Security Instructions
Wear a hair net if you have long hair. Loose objects can become entangled and cause serious injuries! Use personal safety equipment: ear protectors and safety goggles when working with the machine. Operation with gloves forbidden! HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN... - Page 8 Initiate the violation in accordance with the necessary first aid measures. When requesting support, provide the following details: 1. Place of accident 2. Type of accident 3. Number of injured people 4. Injury type(s) HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN...
-
Page 9: Remaining Risk Factors
Therefore wear a suitable breathing mask if required. These risk factors can be minimized through obeying all security and operation instructions, proper machine maintenance, proficient and appropriate operation by persons with technical knowledge and experience. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN... -
Page 10: Preparatory Activities
This layer has to be removed. You can use standard solvents that do not damage the machine surface. N O T I C E Do not use solvents based on nitrite, aggressive solvents like break cleaners or scrubbing agents! These damage the machine surface. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN... -
Page 11: Power Supply
Extension Cross-section <27 m 1,5 mm <44 m 2,5 mm 220 V-240 V 50 Hz <70 m 4,0 mm <105 m 6,0 mm Plug 400V: 5-wire: 4-wire: with without N-conductor N-conductor HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN... - Page 12 To aid in assembly, refer to the upper assembly drawing as well as to the parts drawings at the end of this manual. The machine assembly is shown on basis of the model SB 3116RHN. 1. Position the Base (B6) on a level and sturdy floor for mounting. Bolt the Base to the floor using appropriate hardware (not supplied).
- Page 13 - Refer to the chart inside the Guard lid to select speed and belt locations. W A R N U N G Overtightening the belts can cause the motor to bind and not start. It can also damage motor bearings! HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN...
- Page 14 ASSEMBLY 12.5 Assembly spindle protection HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN...
-
Page 15: Operation
The coil spring is located on the rotary lever, on the opposite side of the machine. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN... - Page 16 3. Tighten the Support Clamp. 4. To tilt the Table, loosen Hex Bolt and turn the Table. The scale can be used to approximate the angle. Tighten the Hex Bolt. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN...
- Page 17 4. Turn the scale on the Depth Stop Ring to the desired depth and retighten the Depth Lock Screw. 5. Pull the Feed Knob (34) counterclockwise until it drills the hole and stops at the set depth. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN...
-
Page 18: Maintenance Plan
Do not dispose the machine in residual waste. Contact your local authorities for information regarding the available disposal options. When you buy at your local dealer for a replacement unit, the latter is obliged to exchange your old. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN... -
Page 19: Troubleshooting
N O T I C E Should you in necessary repairs not able to properly to perform or you have not the prescribed training for it always attract a workshop to fix the problem. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN... -
Page 20: Schaltplan / Wiring Diagram
SCHALTPLAN / WIRING DIAGRAM SCHALTPLAN / WIRING DIAGRAM HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN... -
Page 21: Ersatzteile / Spare Parts
Použití jiných než originálních náhradních dílů má za následek ztrátu záruky! Platí: Při výměně komponent/dílů používejte pouze originální náhradní díly. Adresu pro objednání dílů naleznete v kontaktech na zákaznický servis v předmluvě této dokumentace. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN... - Page 22 ERSATZTEILE / SPARE PARTS 57.2 Explosionszeichnung / explosion drawing HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN...
- Page 23 ERSATZTEILE / SPARE PARTS HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN...
- Page 24 ERSATZTEILE / SPARE PARTS SB 3116RHN HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN...
- Page 25 ERSATZTEILE / SPARE PARTS SB 3116RMN HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at SB 3116RHN / SB 3116RMN...
