15.6" Countertop Digital LCD
Signage with 10pt PCAP Touch-
Android 11 OS
USER MANUAL
FCC ID: 2ASCB-DT156CLS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes/modifications to this equipment not approved by the party responsible for compliance could void the user's
authority to operate the equipment.
SKU: DT156CLS
Advertisement
Table of Contents
Related Manuals for Displays2go DT156CLS
Summary of Contents for Displays2go DT156CLS

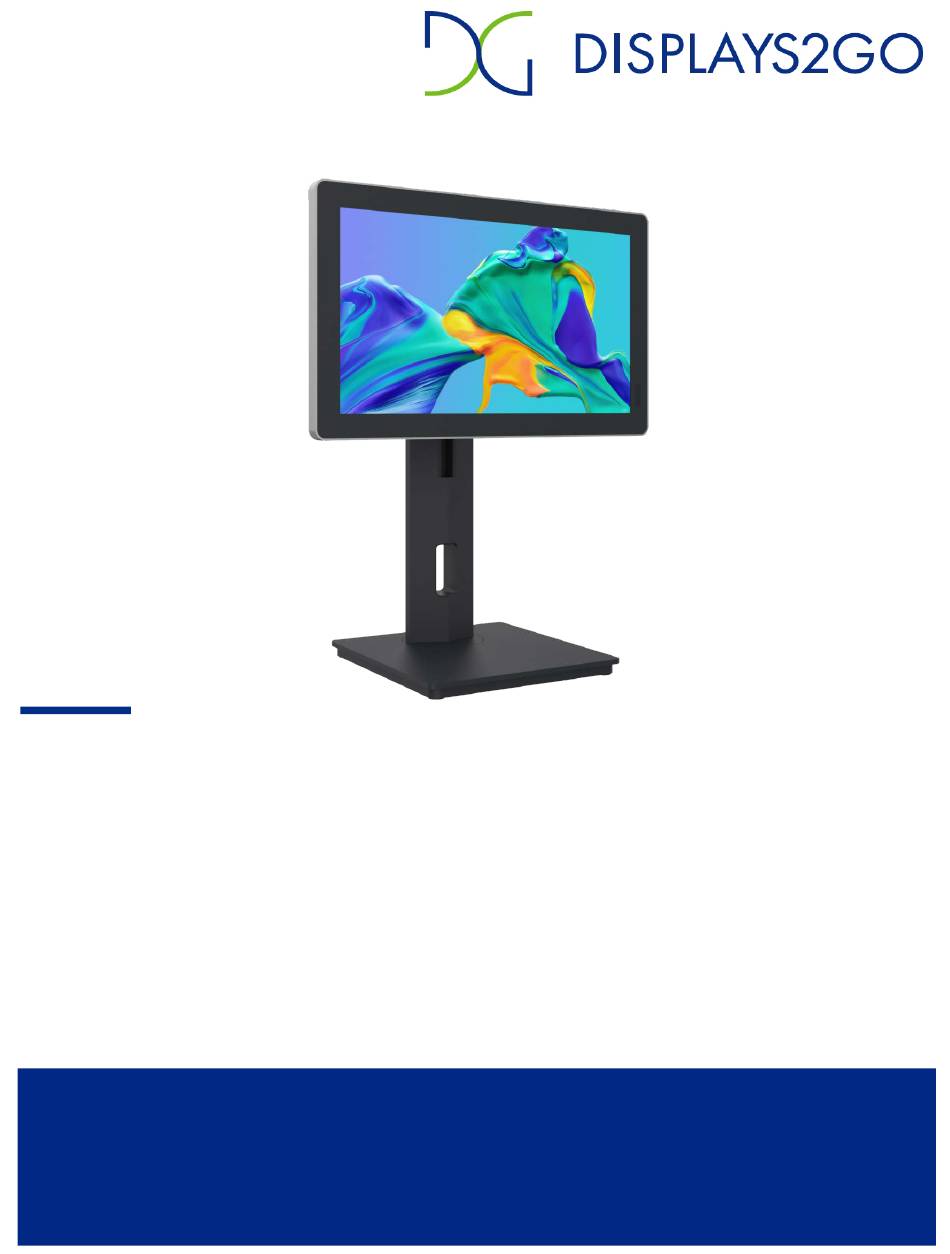

- Page 1 Android 11 OS USER MANUAL SKU: DT156CLS FCC ID: 2ASCB-DT156CLS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 2 Thank you for purchasing this product from Displays2go. It’s our mission to help you connect with the world and build your brand with products that are personalized to your needs. Your product has been manufactured with great care using only the finest quality materials and expert workmanship.
-
Page 3: Table Of Contents
TA B L E O F CONTENTS BEFORE USE Safety Warnings and Precautions Assembly Screen Rotation Packing List Parts Description OPERATION Power On/Off Interface Diagram Remote Control Navigation Android Quick Start Guide DIVIEX Upload Media Playlist Settings REFERENCE Technical Specifications Cleaning and Maintenance Troubleshooting Guide Names and Contents of Toxic and Hazardous... -
Page 4: Before Use
B E F O R E U S E Safety Warnings and Precautions Thank you for purchasing the high-performance digital signage from Displays2go. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. However, improper installation and use may result in electric shock and fire. - Page 5 WARNING • Cut off the power supply before connecting or disconnecting any cables. • Do not place the Digital Signage on any instable positions, or else it may be damaged or cause fire. • Do not place the Digital Signage in the positions such as: •...
- Page 6 • Remove depleted batteries immediately to prevent battery acid from leaking into the battery compartment. • If you do not intend to use the remote control for a long time, remove the batteries. • Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth, if chemicals touch your skin, wash immediately.
- Page 7 The technical specifications printed herein and on the packaging are subject to change without prior notice. The Manual may be slightly different from actual operation, and the latter is applicable. If you have any questions regarding our products, please visit us at www.displays2go.com or contact Displays2go customer service at 844-221-3388.
-
Page 8: Assembly
Assembly NOTE: Two people required for safe assembly of product. Always unplug the power cord before installing or disassembling the unit! UNPACKING Open the carton. Carefully remove the unit from the package. Use the Phillips screwdriver in the accessory package to remove U s e t he s crew s t ha t co m e w i t h t he base to place the post directly on the base. -
Page 9: Screen Rotation
Screen Rotation Rotate the signage following the steps below. The display orientation automatically adjusts to portrait or landscape mode. Rotate the screen from portrait to landscape: Rotate the screen from landscape to portrait: You can manually rotate the screen counterclockwise You can manually rotate the screen clockwise by 90 degrees to by 90 degrees to adjust it to landscape mode. -
Page 10: Packing List
Packing List Item Quantity Item Quantity Digital Signage Wi-Fi Antenna Column Remote Control Base Cleaning Kit Towel and Glove Adapter User Manual Power Cord Cross screwdriver Parts Description ⑨ ⑧ ⑩ ① ⑦ ⑥ ② ⑤ ③ ④ Description Description LCD Screen Type-C (x1) TF-CARD (x1) -
Page 11: Operation
OPERATION Power On/Off • Start up by inserting the power cord into unit and connecting to outlet. Flip power switch to ON. • Power on or off, press the power button on the remote control. • To shut down, flip power switch to OFF, then unplug the unit. CAUTION: Disconnect the power plug before assembling or disassembling the unit! Interface Diagram... -
Page 12: Remote Control
Remote Control To control the unit, aim the remote control at the unit’s remote sensor, located at the right corner below the screen. best performance, avoid exposing the receiver window to direct sunlight or placing objects between the remote control and the receiver. Power (No Function) Mute... -
Page 13: Navigation
Navigation Once turned on, the unit automatically displays the home screen, which includes the navigation bar and the App Drawer. The navigation bar can be minimized. To restore the NOTE: navigation bar, swipe upwards from the bottom of the screen. App Drawer Background Applications Back... -
Page 14: Diviex
DiViEX The DiViEX Slideshow App comes pre-installed on this digital product for convenient content management. There are 2 methods for uploading media: saving media files to internal storage, or creating a specific folder on a USB, then inserting into unit. After, open the app to launch a slideshow or adjust picture settings, add filters and stickers, queue music and more! UPLOAD MEDIA Supported File Formats... -
Page 15: Playlist Settings
PLAYLIST SETTINGS Edit the overall playlist settings in the tab. Once settings are adjusted, click or adjust further in the Settings PLAY Edit or Music tab. Enable or disable automatic settings. A. AUTOMATIC SETTINGS Auto-Boot: Automatically launch DiViEX when unit is powered on Auto-Play: Automatically play slideshow when DiViEX opens B. - Page 16 EDIT Tweak each photo individually in the tab. Edit A. PHOTOS Images/Video thumbnails in sequential order. Drag to rearrange. B. EDIT TOOLS Crop, Add Text, Add Filter, Add Sticker, Add Frame This white bar shows tool options for each of the Edit tools. Choose aspect ratios C.
-
Page 17: Reference
R EFE R ENC E Technical Specifications LCD Size 15.6” Light Source Resolution 1920*1080 (pixels) Brightness 350 nits Contrast 800: 1 Response 30ms PANEL Pixel Pitch 0.18 (H)*0.18 (V) Refresh Rate 60Hz Viewing Angle 170° (H)/170° (V) Color Saturation Viewable Area 344.2 (H) * 193.6(V) mm Chromaticness 16.2M... -
Page 18: Cleaning And Maintenance
System Update USB Compatible App Installation Support download and installation FUNCTIONS Bluetooth Generation Bluetooth 5.0 Wi-Fi Frequency 5G, 2.4G Dual Band Wi-Fi Generation Wi-Fi 6 (Compatiable with Wi-Fi 5) Ethernet (RJ45) HDMI 3.5mm headphone INTERFACES 3 (USB3.0*1, USB2.0*2) Wi-Fi Type-C OTG Net Weight 9.48lbs (4.3kg) Gross Weight... -
Page 19: Troubleshooting Guide
Troubleshooting Guide ISSUE PROBABLE CAUSE SOLUTION • Check that the unit is plugged into wall outlet. • Unit not plugged into wall • Confirm that the power cord is connected to outlet the terminal on the back of the unit. •... - Page 20 WORKING • Android board is defective • Contact Displays2go support. Do not attempt to replace or repair circuitry yourself. Contact customer service to schedule a NOTE: professional maintenance appointment. If all the potential solutions have been tested for a particular issue and problems have not been resolved, contact a customer service representative for guidance.
-
Page 21: Names And Contents Of Toxic And Hazardous
Names and Contents of Toxic and Hazardous Substances or Elements in the Product The table shows that the machine contains harmful substances inside. The data is provided by material suppliers and verified by the company according to the material type. Some materials contain harmful substances that can’t be replaced in present technology. -
Page 22: Fcc Statement
FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
