User Manual
Material No.:
DG21FLR5P
Material Description:

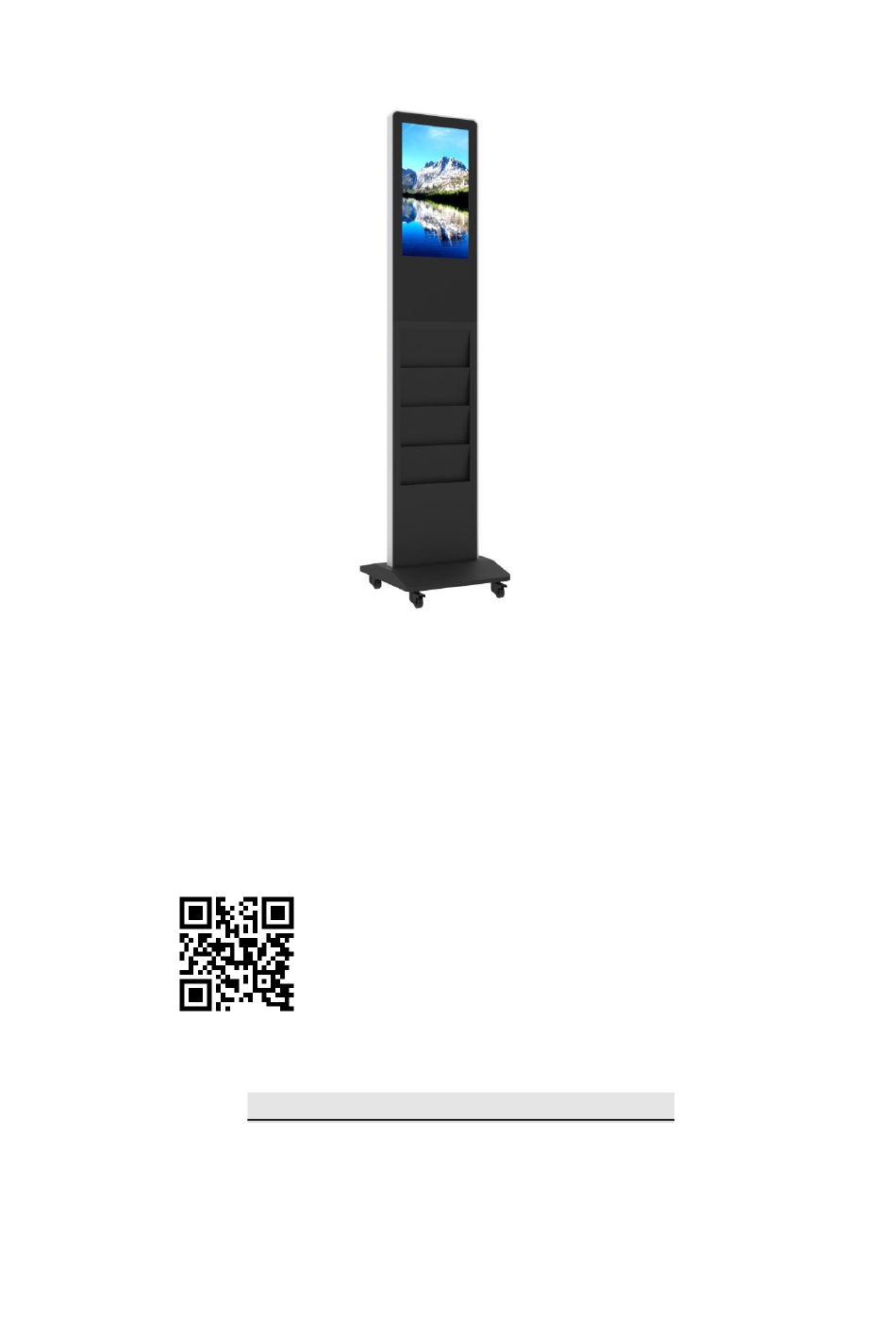

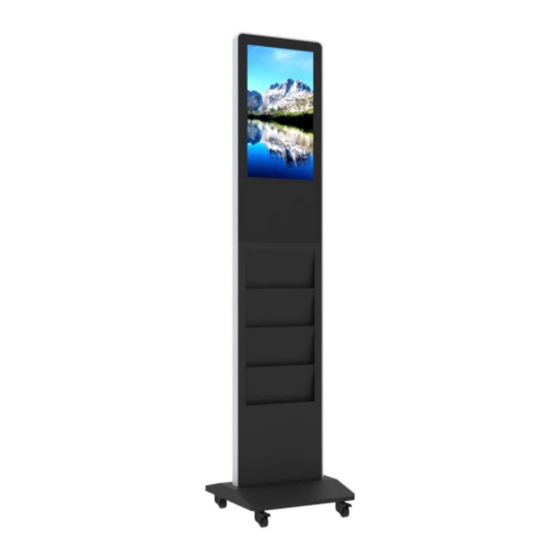

21.5" Indoor Floor Standing Digital Signage
Scan QR code to visit the product page:
Operating Instructions for Digital Signage
Note: Before using the product, please read the instructions carefully!
Do not attempt to disassemble this product. If the product does not work properly, please
contact your local dealer or the company.
1
Displays2go
Rev. 04/24/19
Advertisement
Table of Contents
Related Manuals for Displays2go DG21FLR5P
Summary of Contents for Displays2go DG21FLR5P
- Page 1 User Manual Material No.: DG21FLR5P Material Description: 21.5” Indoor Floor Standing Digital Signage Scan QR code to visit the product page: Operating Instructions for Digital Signage Note: Before using the product, please read the instructions carefully! Do not attempt to disassemble this product. If the product does not work properly, please contact your local dealer or the company.
-
Page 2: Table Of Contents
How to Delete Media Files ......................17 Factory Reset ..........................19 Screen Rotate ..........................19 Choose System Language ......................20 Technical Specifications…………………………………………………….……………………………………………………………21 Troubleshooting……………………………………………………………………………………………………………………………23 Cleaning and Maintenance………………………….……..………………………….……………………………….……………25 Names and Contents of Toxic and Hazardous Substances or Elements in the Product…….………….….26 Displays2go Rev. 04/24/19... -
Page 3: Features
Thank you for purchasing the high-performance multi-functional LED backlight Digital Signage from Displays2go. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. However, improper installation and use may result in electric shock and fire. - Page 4 Do not use the Digital Signage in stormy weather, especially when there is lightning; instead, please disconnect the power and antenna plugs to avoid lightning strike. Do not disassemble the Digital Signage without permission, or else it may cause electric shock or fire. Please ask qualified technician for repair. Displays2go Rev. 04/24/19...
-
Page 5: Assembly And Connection
The unit is class-A product, which may cause radio interference in living environment. In this case, please take feasible measures, and use power plug as the disconnection device. Displays2go Rev. 04/24/19... -
Page 6: Interfaces
3. Carefully lift out the unit as shown in Fig. 3 and place it on the shipping box (avoid scratching) (Fig. 4); 4. Assemble the base and the unit with provided screws using hex socket wrench as shown in Fig. 4; 5. The assembly is finished (Fig. 5). (Fig. 1) (Fig. 2) (Fig. 3) (Fig. 4) (Fig. 5) Displays2go Rev. 04/24/19... -
Page 7: Steps For Assembly With Casters
1. To use this product as a mobile unit, install 4 casters to the metal base by threading them into the holes on the bottom of the base. Tighten all casters with a 14mm wrench. 2. Connect the base and the digital poster with provided screws. Tighten all screws with an Allen wrench. 3. The assembly is finished: Displays2go Rev. 04/24/19... -
Page 8: Remote Control
Turn down the volume Please Note: The real appearance of the remote HDMI Select HDMI device as the source control may be different from the picture, please Select VGA device as the source refer to the actual product. Back Displays2go Rev. 04/24/19... -
Page 9: Description Of Basic Operation
In power on state, enter “System Assistant” and press the “ ” button on the remote control, and the Digital Signage enters standby state. About Launch Desktop Description of Desktop Icons Icon Function Main applications Back Home page Background applications Sound - Sound + Displays2go Rev. 04/24/19... -
Page 10: Description Of Wallpaper Switch
2. Click the “Explorer” icon in the “APPS” menu interface (Fig. 2) and enter “Explorer” menu (Fig. 3); 3. Click options in the “Explorer” menu to read the files from different devices. Fig. 1 Fig. 2 Fig. 3 Displays2go Rev. 04/24/19... -
Page 11: Local Settings
Description of Settings Interface (shown on the right) Icon Function WIFI switch Data usage Bluetooth Sound & notification Battery saver HDMI Display Storage Apps Screenshot Setting Location Accounts Backup & reset Security Language & input Date & time Printing Accessibility About device Displays2go Rev. 04/24/19... -
Page 12: Staus Of Menu Bar
3. At the display setting menu unselect the display navigation check box Fig. 1 Fig. 2 Fig. 3 Slide Show APP Introduction How to Upload Media Files: Step1: Open the Android launcher screen and click the explorer app Displays2go Rev. 04/24/19... - Page 13 Step2: Go to the USB storage menu click the USB storage button Step3: At the USB storage menu select Multi and then highlight the media files which you want to copy to the media folder. Click the Editor button, the pop menu will show then click the Copy Displays2go Rev. 04/24/19...
- Page 14 Step4: Click HOME button and go to the NAND FLASH menu. Select MediaFolder and then open the Images Folder. Displays2go Rev. 04/24/19...
- Page 15 Step 5: At the images folder click the edit button at the top of the screen, the pop menu will show. Then click the Paste command button. The files will be copied to the images folder. Step6: Exit the Explorer app and go to the launcher screen. Run the Slide Show app to display the media files Displays2go Rev. 04/24/19...
- Page 16 Step 7: Select the time you would like each picture to be on the screen for by dragging the bar to the desired time. Select how you would like the images to display. Select the desired transition effect between pictures. Step 8: Select Play and your slide show will begin playing Displays2go Rev. 04/24/19...
-
Page 17: How To Delete Media Files
How to Delete the Media Files: Step1: Open the Android launcher screen and click the explorer app Step2: Click home button and go to the NAND FLASH menu you will see the MediaFolder open it Displays2go Rev. 04/24/19... - Page 18 Step3: At the Image or Video folder select the media files which you want to delete. Then click the edit button at the top of the screen, the pop menu will show. Then click the Delete command button and the files will be deleted. Displays2go Rev. 04/24/19...
-
Page 19: Factory Reset
” in the Home page to enter the “APPS” menu interface (Fig. 1) 2. Click “System aide” into Fig. 2 3. Choose the degree you would like to Rotate screen, then click “Confirm”, after the restart, the screen will be rotated (Fig. 3) Displays2go Rev. 04/24/19... -
Page 20: Choose System Language
Choose System Language: 1. Get into Settings, then click “Language & input” (Fig. 1) 2. Click “Language”, then you can choose the system language accordingly (Fig. 2) Displays2go Rev. 04/24/19... -
Page 21: Technical Specifications
Power Consumption ≤35W Operating temperature (°C) 0~40°C Storage temperature (°C) -10~60°C Environment Storage humidity 10~60% RH Non-condensing Operating humidity 20~85% RH Non-condensing Maximum operating time (hrs/day) 18 hours Operating system Android 5.1.1 Processor RK3288, quad-core Functions Built-in memory Displays2go Rev. 04/24/19... - Page 22 Support download and installation Ethernet (RJ45) HDMI I/O interfaces Headset USB2.0 Net weight 24kg Gross weight 36kg Unit dimensions (W*D*H) 351*210*1680mm Structure ≈532*210*1783mm(honeycomb cardboard box) Package dimensions (W*D*H) Shell material Aluminum profile/Cold Rolled Steel Shell color Silver/black Language English/Simplified Chinese Displays2go Rev. 04/24/19...
-
Page 23: Troubleshooting
Troubleshooting the Digital Literature Holder - DG21FLR5P Issue Probable Cause Solutions ⚫ ➢ □ No picture or sound Unit not plugged into wall outlet Check that the unit is plugged into wall ➢ Power cord not properly outlet. □ connected to the terminal on the Confirm that the power cord is connected to back of the unit. - Page 24 DisplayIt!Xpress software from □ If you purchased DisplayIt!Xpress software software or getting Displays2go? from Displays2go or from Best Wave directly, ➢ content to play Did the customer purchase or please contact Best Wave at downloaded another 3 party support@bestwave.
-
Page 25: Cleaning And Maintenance
4. Clean screen and product by using a glass cleaner. 5. If the product will not be used for a long time, pull out the power cord to prevent the internal short circuit or other potential dangers. Displays2go Rev. 04/24/19... -
Page 26: Names And Contents Of Toxic And Hazardous Substances Or Elements In The Product
To protect the earth, if you do not need this product or its service life expires, please abide by the Waste Electrical and Electronic Products Recycling and Disposal Regulations and send it to qualified local manufacture for recycling. This Manual is for reference only and is subject to change without prior notice. Displays2go Rev. 04/24/19...
