U S E R M A N U A L

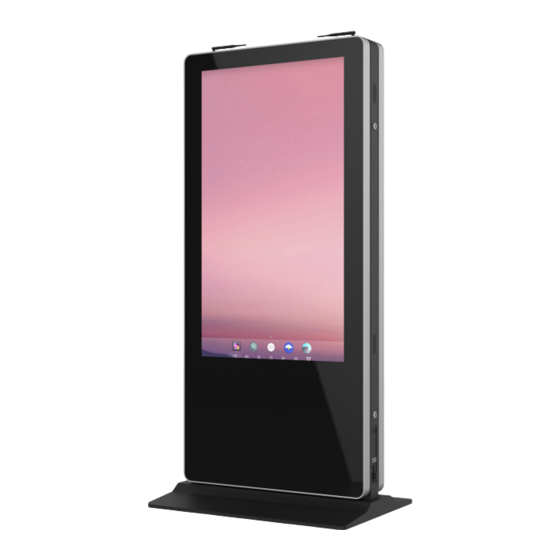

SKU: DF043TLBD 43" Digital Signage Floor Standing 2-Sided, IR Touch
SKU: DF055TLBD 55" Digital Signage Floor Standing 2-Sided, IR Touch
SKU: DF055TLWD 55" Digital Signage Floor Standing 2-Sided, IR Touch White
FCC ID: 2ASCB- DF043TLBD, DF055TLBD, DF055TLWD
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes/modifications to this equipment not approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Advertisement
Table of Contents
Related Manuals for Displays2go DF043TLBD
Summary of Contents for Displays2go DF043TLBD
-
Page 1: Diviex 1
- IR TOUCH U S E R M A N U A L SKU: DF043TLBD 43” Digital Signage Floor Standing 2-Sided, IR Touch SKU: DF055TLBD 55” Digital Signage Floor Standing 2-Sided, IR Touch SKU: DF055TLWD 55” Digital Signage Floor Standing 2-Sided, IR Touch White FCC ID: 2ASCB- DF043TLBD, DF055TLBD, DF055TLWD This device complies with Part 15 of the FCC Rules. - Page 2 Thank you for purchasing this product from Displays2go. It’s our mission to help you connect with the world and build your brand with products that are personalized to your needs. Your product has been manufactured with great care using only the finest quality materials and expert workmanship.
-
Page 3: Table Of Contents
TA B L E O F C O N T E N TS Before Use Safety and Warnings Packing List Interface Diagram Assembly Operation Power On/Off Remote Control HDMI Display Settings Android 1 1 Quick Start Guide DiViEX Reference Technical Specifications Cleaning and Maintenance Troubleshooting Guide Names and Contents of Toxic and Hazardous... -
Page 4: Before Use
B E F O R E U S E Safety Warnings and Precautions Thank you for purchasing the high-performance multi-functional LED backlight Digital Signage from Displays2Go. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. - Page 5 WARNING • Cut off the power supply before connecting or disconnecting any cables. • Do not place the Digital Signage on any instable positions, or else it may be damaged or cause fire. • Do not place the Digital Signage in the positions such as: •...
- Page 6 CAUTION • Do not let children climb onto the Digital Signage. • Keep the small parts away from children to prevent them from swallowing. • If the Digital Signage won’t be used for a long time, please turn it off and pull out the power plug. •...
-
Page 7: Packing List
Cross head pad screw M6x12 Contact Displays2go if you have questions about the operation, debugging and connection of the unit, if the unit doesn’t work normally, please cut off the power immediately and consult the dealer. The unit is class-A product, which may cause radio interference in living environment. -
Page 8: Assembly
Assembly NOTE: Two people required for safe assembly of product. Always pull out the power plug before installing or disassembling the unit! U N PAC K I N G Open the top cover. Remove base from package Have 2 people carefully remove unit from the package. and carefully set aside. -
Page 9: Operation
O P E R AT I O N Power On/Off • Power on by inserting the power cord into unit and connecting to outlet. • To turn the screen on or off, press the power button on the remote control. •... -
Page 10: Settings
Settings Once turned on, the unit automatically displays the home screen, which includes the navigation bar and the App Drawer. NOTE: The Navigation bar can be minimized. To restore the Display navigation bar, go into Display settings and enable Navigation. App Drawer Background Applications Back... - Page 11 Our DiViEX Slideshow App comes pre-installed on this digital product to provide convenience for your business content management. Easily upload your videos and images to a USB and insert into the unit. Then, open the app to launch a slideshow or adjust picture settings, add filters and stickers, queue music and more! Add Media to USB 1.
- Page 12 PLAYLIST SETTINGS Edit the overall playlist settings in the Settings tab. Once settings are adjusted, click PLAY or adjust further in the Edit or Music tab. Enable or disable automatic settings. A. AUTOMATIC SETTINGS Auto-Boot: Automatically launch DiViEX when unit is powered on Auto-Play: Automatically play slideshow when DiViEX opens B.
- Page 13 EDIT Tweak each photo individually in the Edit tab. A. PHOTOS Images/Video thumbnails in sequential order. Drag to rearrange. B. EDIT TOOLS Crop, Add Text, Add Filter, Add Sticker, Add Frame This white bar shows tool options for each of the Edit tools. Choose aspect ratios C.
-
Page 14: Reference
R E F E R E N C E Technical Specifications LCD Size 43” 55” Light Source LED backlight Resolution 1920*1080 (pixels) Brightness 400cd/m 500cd/m Contrast 1200: 1 Response 10ms PANEL Pixel Pitch 0. 1 6 (H) * 0.49(V) mm 0.63 (H) * 0.63 (V) mm Refresh Rate 60Hz... -
Page 15: Cleaning And Maintenance
Ethernet (RJ45) HDMI 3.5mm headphone INTERFACES Wi-Fi Antenna Type-C OTG Net Weight 231lbs (105kg) 297.6 lbs (135kg) Gross Weight 264.5lbs (120kg) 335lbs (152kg) 27.5”x 7”x 69” 34” x 7” x 75” Unit Dimensions (700*180*1760mm) (860*180*1900mm) STRUCTURE 73” x 14.5” x 34.6” 79”... -
Page 16: Troubleshooting Guide
Troubleshooting Guide ISSUE PROBABLE CAUSE SOLUTION • Check that the unit is plugged into wall outlet. • Unit not plugged into wall • Confirm that the power cord is connected to outlet the terminal on the back of the unit. •... - Page 17 APPS NOT is functioning. WORKING • Android board is defective • Contact Displays2go support. NOTE: Do not attempt to replace or repair circuitry yourself. Contact customer service to schedule a professional maintenance appointment. If all the potential solutions have been tested for a particular issue and problems have not been resolved, contact a customer service representative for guidance.
-
Page 18: Names And Contents Of Toxic And Hazardous
Names and Contents of Toxic and Hazardous Substances or Elements in the Product The table shows that the machine contains harmful substances inside. The data is provided by material suppliers and verified by the company according to the material type. Some materials contain harmful substances that can’t be replaced in present technology. -
Page 19: Fcc Compliance Notice
FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
